Introduction

This guide will teach you to repair a Fastmark armband machine in the case of a jam. This machine is used in the emergency room at certain hospitals to print patient armbands. No prior knowledge is needed for this repair. The only item that may be required for this repair is a new roll of armbands. The steps are simple and require you to open the machine, mix the current jam or issue and then close the machine.

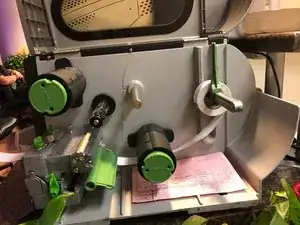

  1. LfBKMLojMRgT6gMg
    LfBKMLojMRgT6gMg
    Z1A6JCFORakhgWLG
    EJsHGLdagLPGqErU

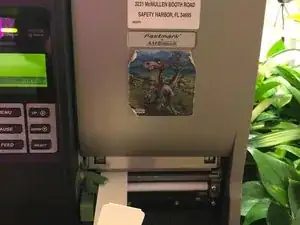

    • Open the machine by lifting the right side up.

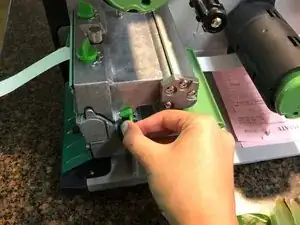

  2. mbJph1oLK2ayLOIY
    mbJph1oLK2ayLOIY
    G32QQYknwCvaIyRt
    32OjhqaFGqaQMaNS

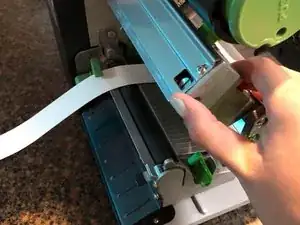

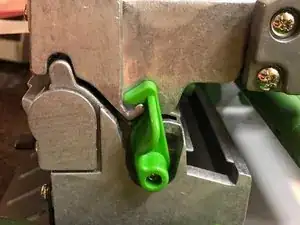

    • Assess where the problem is within the machine. Press the green button that says "push" to release the end of the armband that is clamped in the machine.

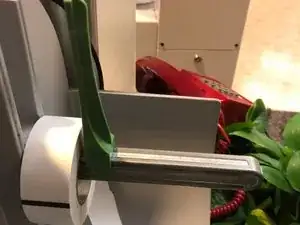

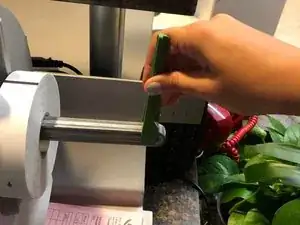

  3. GdwvegVXAPVeOrO6
    GdwvegVXAPVeOrO6
    iHJ6cWpSftCXSdav
    yZDdXdcUpcMKjNjM
    • Slide the green bar to the right then pull it down to remove the roll of armbands.

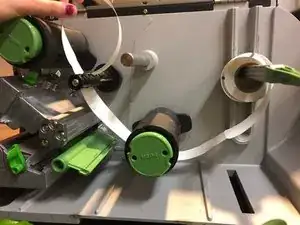

  4. RK4bCGWeoQnquhrP
    • Remove the armband strip from under the press.

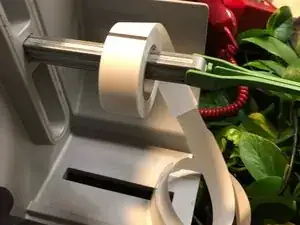

  5. kZIOnAM2NXAbRQrR
    kZIOnAM2NXAbRQrR
    YonERUdW6NU6GymL
    liAwXevUbJFXaCgM

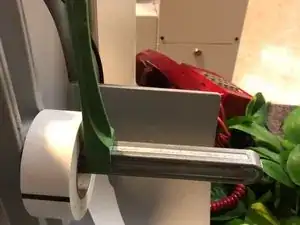

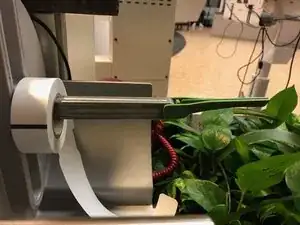

    • Replace the previous armband roll if it's damaged and insert a new roll by sliding it onto the device and pushing the green bar back into place.

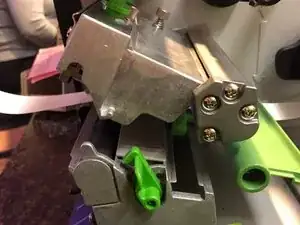

  6. flSahxM6En5TFMpN
    flSahxM6En5TFMpN
    pEMuTT4YXGYx2Txg
    PUPQohhLKJ21lL4D

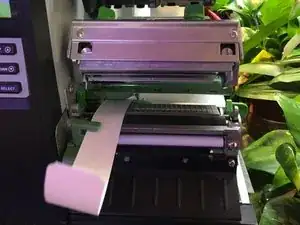

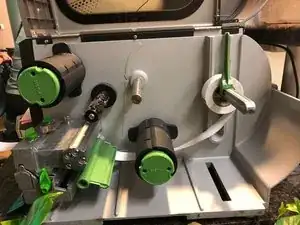

    • Weave the new armband strip under the back and green cylinder and through the press. Close the press by pushing it down firmly.

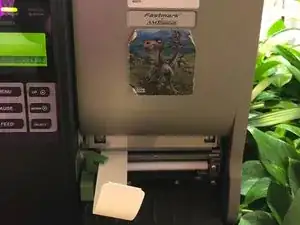

  7. EBj3wTZTKbuTTx5y
    EBj3wTZTKbuTTx5y
    uPCS3ET3w3P2RFQL
    GvRkBf5bYTLtDMtx

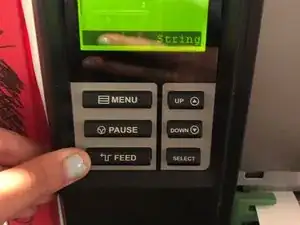

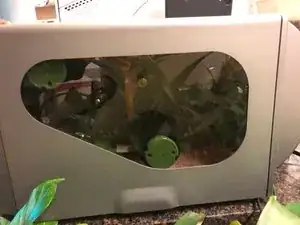

    • Close the top of the armband machine and then press the feed button on the outside to make sure it is working correctly.

Conclusion

Repeat these steps if the text is not lined up in the correct place on the armband.
