Introduction

The Hohner 280C Chromonica 64 Chromatic Harmonica loses its plastic reeds over time as its binding glue degrades. This results in the harmonica not making sound where the reeds are missing. This guide will go through the steps needed to take off the face plates of the harmonica, replace the fallen reeds using glue, and reassemble the instrument.

  1. tAQSBb4r3VYR1BdV
    tAQSBb4r3VYR1BdV
    NQFGl6M2JhCAOCZM
    NKMNRRjb5uP2yTSb

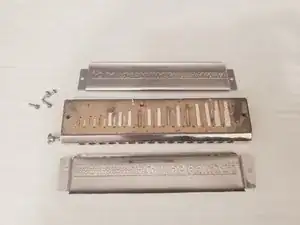

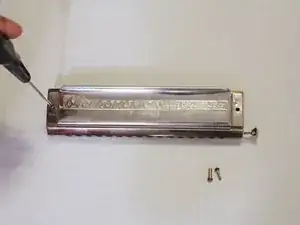

    • Using a flat-head screwdriver, remove the four 2.4 mm round head screws on left and right of the harmonica plates.

    • Move the harmonica plates to the side until needed for reassembly.

    • The screws are connected, and unscrewing one side will cause the directly connecting side to unscrew as well.

  2. Q4XS1NCjKYLiLwAP
    Q4XS1NCjKYLiLwAP
    PpkwfHIHj4cDkYAx
    1nonQljpHFVKYDpT

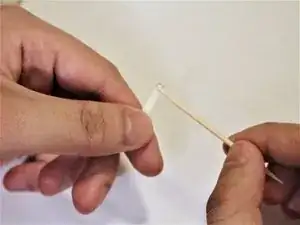

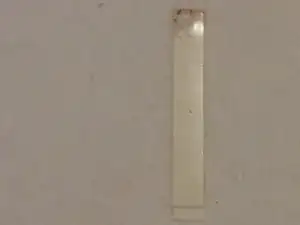

    • Place a very small amount of glue on the end of a toothpick.

    • Using the toothpick, spread the glue gently on the top of the reed without the split end, with the longer piece facing up.

    • The split end reed is 2 pieces of plastic glued together, with one slightly longer. They belong to the middle of the reed plate, from hole 3 to 12.

  3. SA3J61HBhj5ouLAv
    SA3J61HBhj5ouLAv
    MBiSUusQPEHtrYae
    HxYvQrxPV2wMlKXY

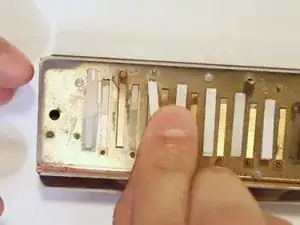

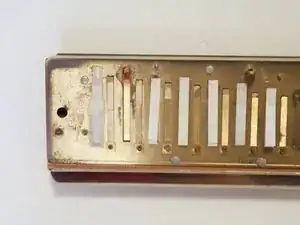

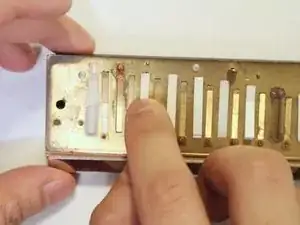

    • Place the glued reed on the harmonica’s reed plate where the reed is missing.

    • Gently press down on the reed to adhere the glue.

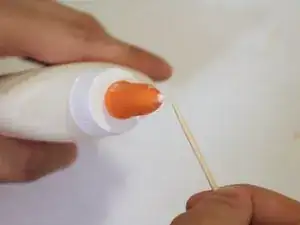

  4. 3drpOjYW1DfeFuTq
    3drpOjYW1DfeFuTq
    NqVEKPaDHAwGwZon
    5FSxSUBHaP6Or1wi

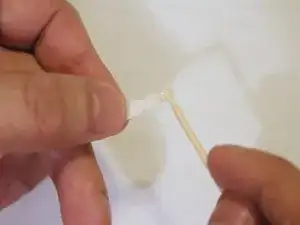

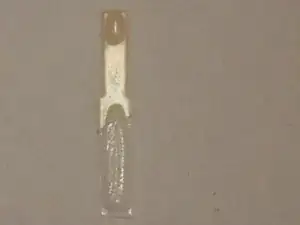

    • Place a very small amount of glue on the end of a toothpick.

    • Using the toothpick, spread the glue gently on the top of the bump reed without the bump, with the bump laying down.

    • The bump reed is a reed with a large bump. They belong to the left of the reed plate, from hole 1-2.

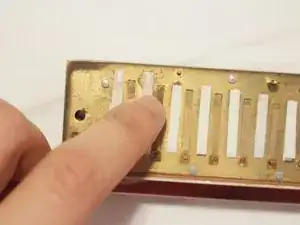

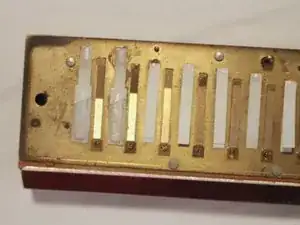

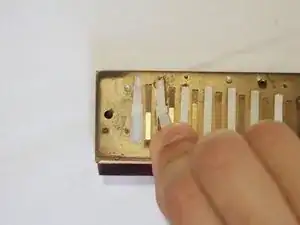

  5. riCIEEbNEeSPLZql
    riCIEEbNEeSPLZql
    eHPWWnKPhhERBlnm
    tOJSRmwppM1WcWmE
    • Place the glued reed on the harmonica’s reed plate where the reed is missing.

    • Gently press down on the reed to adhere the glue.

  6. IadlfWPVjuBfo1Hy

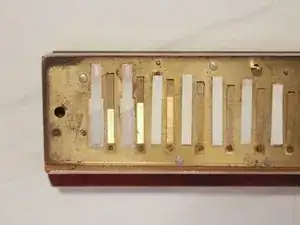

    • Let the glue set and dry for 10-20 minutes.

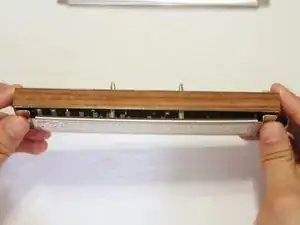

  7. NQ1TQfge1iZFgG3s
    NQ1TQfge1iZFgG3s
    cfHQgUlppJdtEWfI
    OFR3BklXkIXH1qYQ

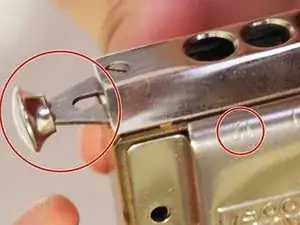

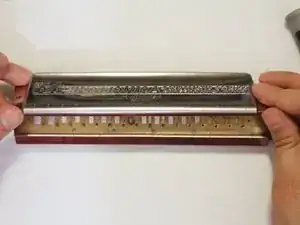

    • To reassemble the side plates, align the top plate (the one with numbers) with the harmonica comb, with its open end facing down and the harmonica button on the right next to the 12.

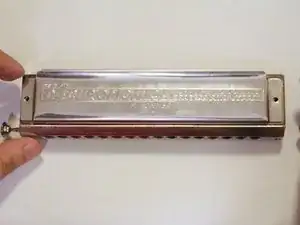

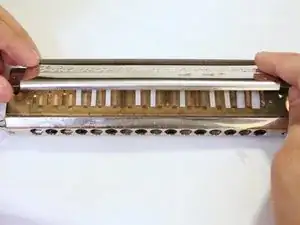

  8. hCltsFwCQNwFmLCY
    hCltsFwCQNwFmLCY
    nie6KGIWQ2bpIxe5
    GF3TBNCJlCFeSvPv

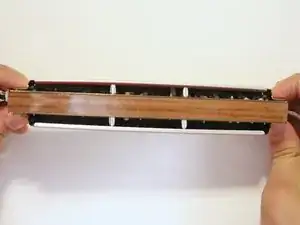

    • Align the bottom plate with the harmonica comb, with its open end facing down.

  9. opU1THlDOfyj1OvO
    opU1THlDOfyj1OvO
    KZOfrqUHdGOUuOCn

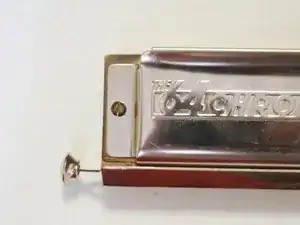

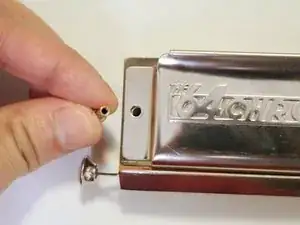

    • Slot one of the hollow round head screws into the aligned holes.

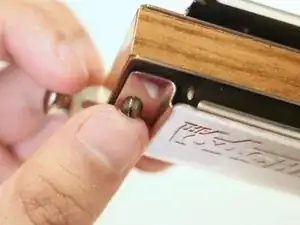

  10. PxtdjhaqprVfXUT2
    • Keep the hollow round head screw in place by pressing down on the screw with your finger, resting the harmonica on a table, etc.

  11. 5fiPbEWXUGaWbjhW
    5fiPbEWXUGaWbjhW
    TEs32eueRS1KiElU
    Jc6YDbjETKY5uG4W

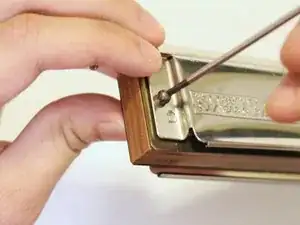

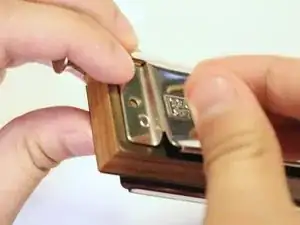

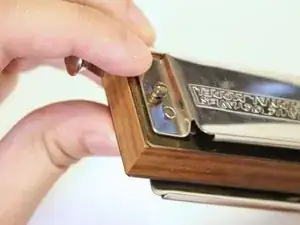

    • Using the screwdriver, screw one of the round head screws into the opposite hollow round head screw. Leave enough slack that the plate does not rise.

  12. HBsNOs1PHxmf2H1j
    HBsNOs1PHxmf2H1j
    DIMnvjCEwF6CjOey

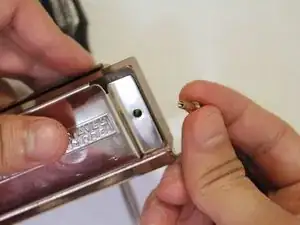

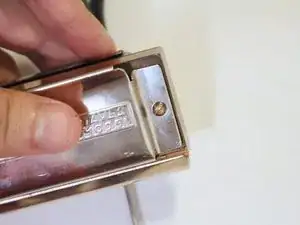

    • Slot the other hollow round screw into the aligned holes on the opposite end.

  13. HfydyLGLgSU3PYwo

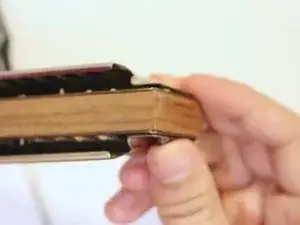

    • Keep the hollow round head screw in place by pressing down on the screw with your finger, resting the harmonica on a table, etc.

  14. jxoRQiFYAIS55BVT
    jxoRQiFYAIS55BVT
    C4OnEbhJyV6MqLFF
    EjVWCoUKX2T41UIS

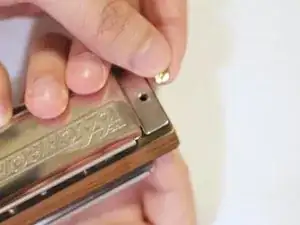

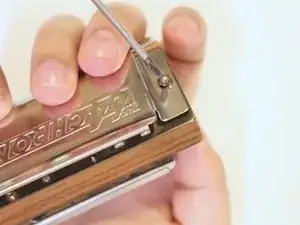

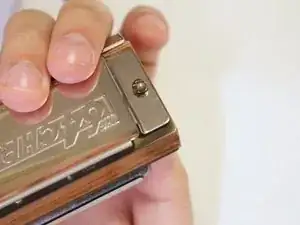

    • Using the screwdriver, screw one of the round head screws into the opposite hollow round head screw.

  15. txJHkQipC3FECfHo
    txJHkQipC3FECfHo
    qSK1nrY2nHInMYiv

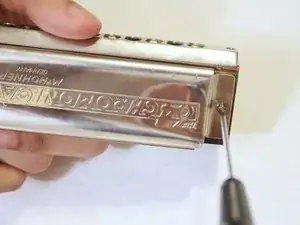

    • Using the flathead screwdriver, tighten the round head screws into the harmonica.
