How to Replace a Valve Spring on a Trumpet

Written By: Isaac Trotta
  • Comments: 2
How to Replace a Valve Spring on a Trumpet

Difficulty

Easy

Steps

3

Time Required

5 minutes

Introduction

This guide will teach to how to replace a spring in the valve of the trumpet.

  1. LA6hYijWymHhry33
    LA6hYijWymHhry33
    gf14NTsUe6AqCYPp

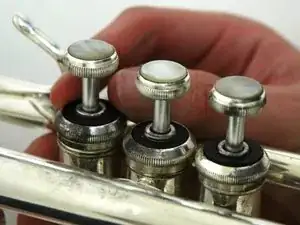

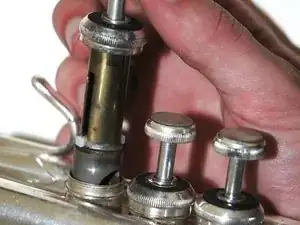

    • To pull out the valve, first twist the top of the valve open counterclockwise to detach it from the rest of the valve.

    • Pull the valve out of the trumpet.

  2. LIIZLxoZLBqB2w2c
    LIIZLxoZLBqB2w2c
    spfucGmLLvxAhNAK

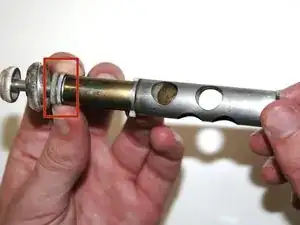

    • Near the top of the valve, twist the top part of the screw compartment off to access the screw.

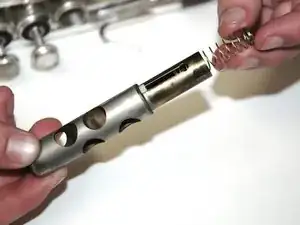

    • Pull the old spring out and replace with the new one.

    • Reassemble the valve the same way it came apart.

  3. TuqBFDpxe5xBBF6w
    TuqBFDpxe5xBBF6w
    nv1f2aOATwxlxBGe

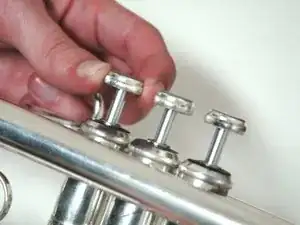

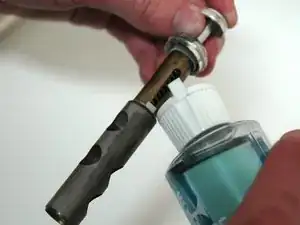

    • Before inserting the valve back into the trumpet, put enough valve oil on the valve so that that the surface is wet, but not dripping.

    • Insert the valve into the trumpet, and screw in the top clockwise.

    • Be sure to grasp the top of the valve and twist until a clicking sound is heard and the valve locks in place to ensure that the trumpet is ready for playing.

    It won't fit in anymore

    Jerry -

Conclusion

To reassemble your device, follow these instructions in reverse order.
