Introduction

This guide details on how to reset your BIOS settings using the CMOS Battery removal technique. This guide should apply to most modern-day motherboards that are equipped with CMOS batteries, and will work regardless of Windows Version installed.

Clearing your CMOS will revert your BIOS configuration to the previous stable one, or factory settings. One reason to reset your BIOS settings would be to help troubleshoot most common problems with incompatibility issues between hardware components.


  1. LYLDiSx5FRDPITVx
    • Unplug the computer from the power supply before disassembly.

    • Wait 5 minutes after the device has been powered off.

  2. Ul3KZJRMkflDlLHF
    Ul3KZJRMkflDlLHF
    USnjJJLlHCXvVl4Y
    BeloLEgAOoJuBvRm

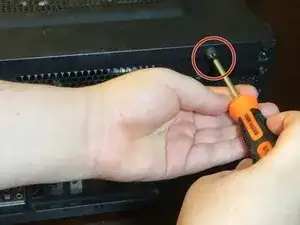

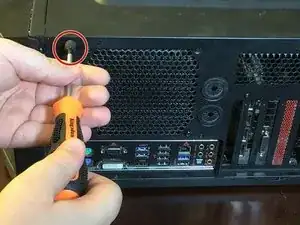

    • Using a Phillips #1 screwdriver, remove two screws that would grant access to inner components of your computer.

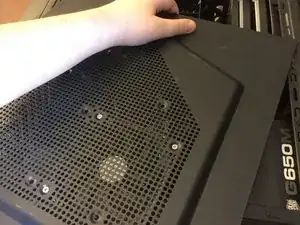

    • Remove the side panel of the computer tower to access the inner components. Slide the panel then lift it to safely remove it.

    • Removing the panel may be different for your computer.

  3. UFA1guhsthgfNcEY
    UFA1guhsthgfNcEY
    i1JdtIWlNDA3oVBj
    iGHAZ4iHZmKrmZVb

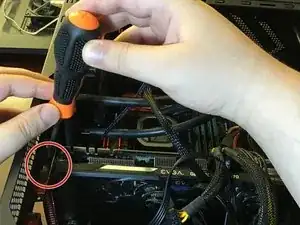

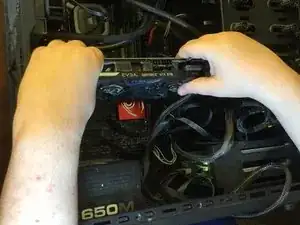

    • Using the Phillips #1 screwdriver, remove the screw holding the graphics card (GPU) onto the motherboard.

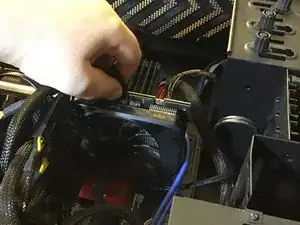

    • Disconnect any power cables that may be attached to your graphics card.

    • Carefully slide the graphics card out from its slot.

  4. MjFxMlVCUoUkyZOQ
    MjFxMlVCUoUkyZOQ
    ujPYwCwJUatGtZxB

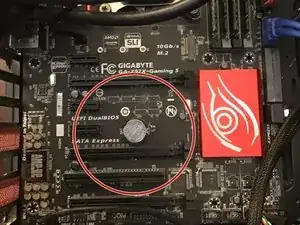

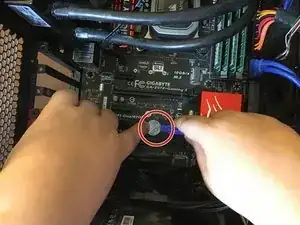

    • Remove the CMOS Battery using a plastic opening tool.

    • There may be a spring mechanism available to use to easily remove the battery.

  5. ecLj1CiLmE15eNcG

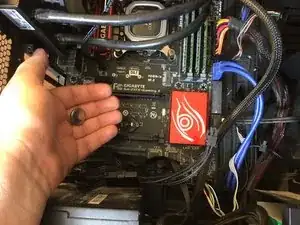

    • Wait 5 minutes to allow enough time for the power to cycle through.

  6. wWCUOSs1gkdICjHG

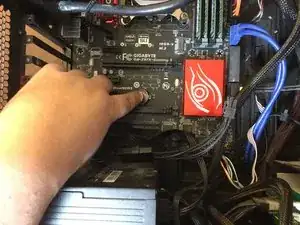

    • Insert battery back into position with the flat side facing upwards.

Conclusion

To reassemble your device, follow these instructions in reverse order.
