Introduction

The Petsafe Dog Panel is a removable dog door that can be installed into the frame of your sliding glass door. Before continuing to the guide, make sure the Petsafe Dog Panel contains all the provided materials and that it is not damaged in any way. Please make sure to pay attention to the warnings before screwing into the panel or your door frame through out the installation process.

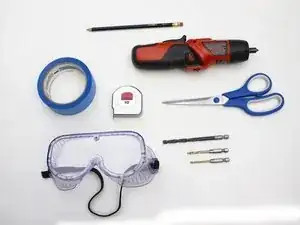

  1. OLNdfX2pN6FJeRgH
    • Make sure you have all the tools necessary.

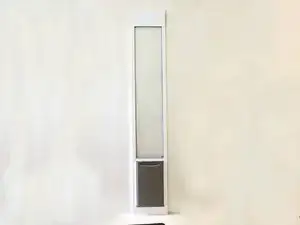

  2. ckJ4HbKXvaA3dNAd
    • Receive your PetSafe dog door in the mail.

  3. uTOmJFD1mPcx3nRf
    uTOmJFD1mPcx3nRf
    YoJXvrfjQvAuNKWA

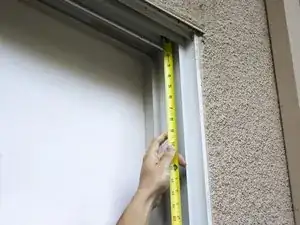

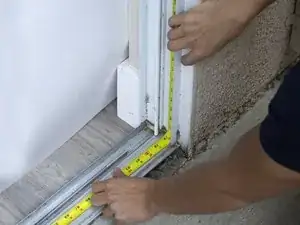

    • Measure the height of the sliding glass door frame.

  4. pcOgKRsEZBgDWVXG
    pcOgKRsEZBgDWVXG
    2BVG3HYSUXm5CprN
    1gkvvrHI61GDRkQg

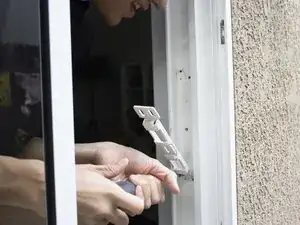

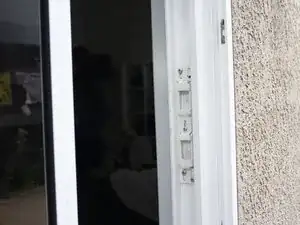

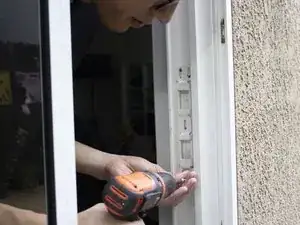

    • Remove your lock latch from the sliding door frame.

    • Lock latches may vary

  5. rHYcIpYrvtI4PZXU
    rHYcIpYrvtI4PZXU
    PnJO6xeYIv3SUHEE

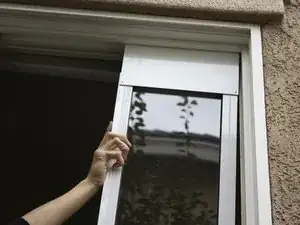

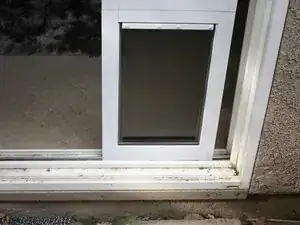

    • Slide the top of your dog panel into the top track of the sliding glass door.

    • Place the bottom portion of the dog panel into the bottom track of the sliding glass door.

  6. MugQqjIPObDLkK6I
    MugQqjIPObDLkK6I
    2UEpwJ1R5KbrVZeb

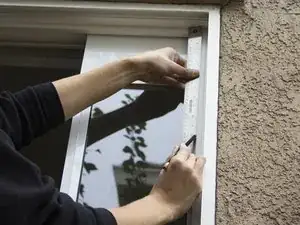

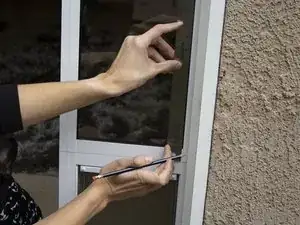

    • Measure 12” from the top, down the side of your sliding glass door frame and mark it.

    • Mark 1” above the pet flap onto the edge of your sliding glass door.

  7. DFprcAn5kWjScOwX
    DFprcAn5kWjScOwX
    tDXfU4vwe6CfXInw
    avecfpyN2XD4s6Yy

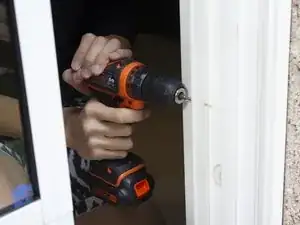

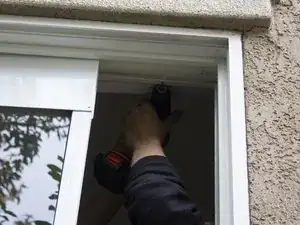

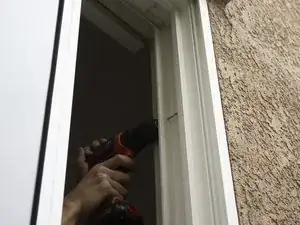

    • With a 9/64ths drill bit, drill clearance holes into the marks made on the sliding glass door frame

    • DO NOT GO THROUGH THE DOG PANEL

  8. PTctuJAmn3bRWnJ6
    PTctuJAmn3bRWnJ6
    mUNBRqNZ3DwFWXXW
    mTLWuZB6QO1NOCTO

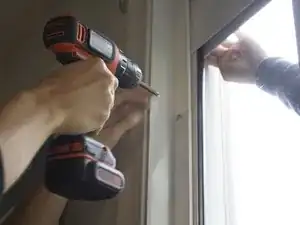

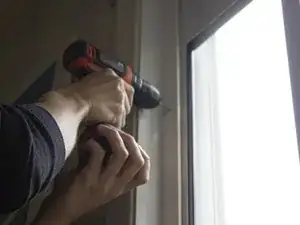

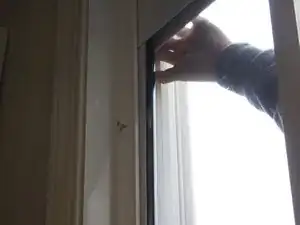

    • Fasten the panel to the interior side of the sliding glass frame with the provided ⅝” screws.

    • MAKE SURE YOU ARE DRILLING OUTSIDE OF THE RIBBED LINE ON THE DOG PANEL.

    • DO NOT OVERTIGHTEN.

  9. QqCI3ygKW3SA5fFH
    QqCI3ygKW3SA5fFH
    RKhPoDESdmHIy5CI

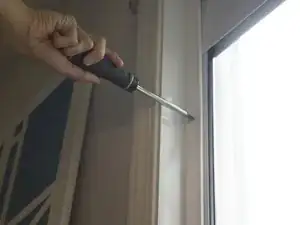

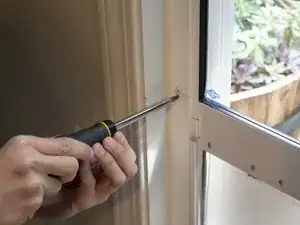

    • Tighten the screws with a screwdriver.

  10. 5PMHacaENiGyI6oP
    5PMHacaENiGyI6oP
    TKpSqJTTspFC1yeC
    wQpXIEoTMLwuS5KH

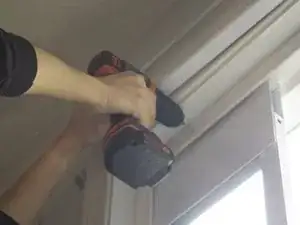

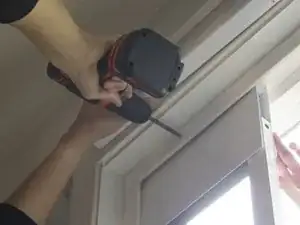

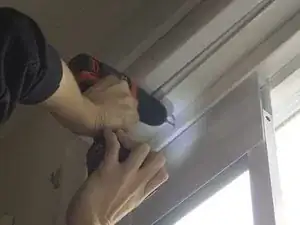

    • Repeat steps 8 and 9 to secure the dog panel into place. Follow these steps when drilling into the clearance hole marked at the top of the frame.

  11. di6iJdZ6cZZ15cB1

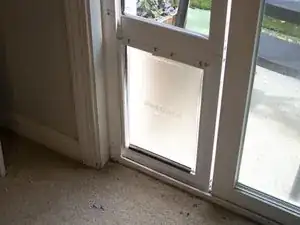

    • Slide your sliding door flush against the dog door.

Conclusion

To reassemble your device, follow these instructions in reverse order.
