Introduction

This guide will show how to replace the buttons on the top of the camera.

  1. OFZ4jgpfmRZTaiiX

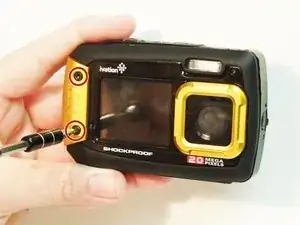

    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

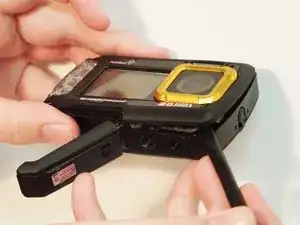

  2. NgFnFTensGm6qFvW
    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

  3. qKULBspi1GxJekwi
    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

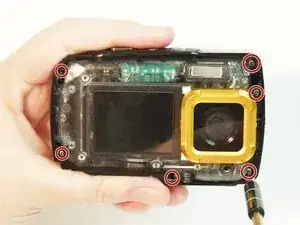

  4. hXeGaADGksV5QK5I
    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit

    • These screws are very small and easy to strip so apply consistent pressure when removing them

  5. X5ZRlpOF1aSK1FVX

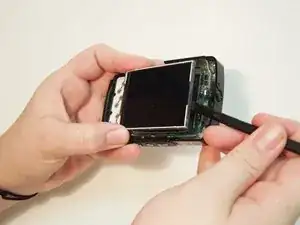

    • Pry off back outer casing using the black spudger or the blue prying tools

  6. NpvxfgMIYZamHHfD

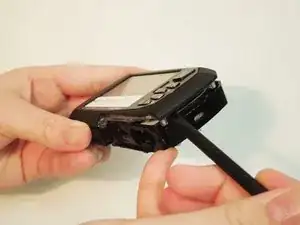

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

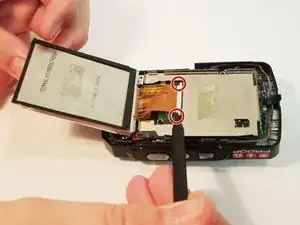

  7. AotAVSPaW1DXGCkL
    • Carefully remove the screen from the silver casing using a prying tool or the black spudger

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure

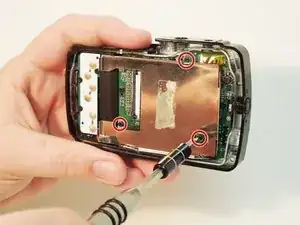

  8. 4bAdemQFZ4qPXY5j
    • Remove three screws holding the silver screen casing to the motherboard using the PH00 bit screwdriver

  9. en2FY4ZJYyhSZ4oR

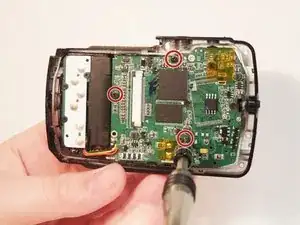

    • Remove three screws holding the motherboard into the casing using the PH00 bit screwdriver bit

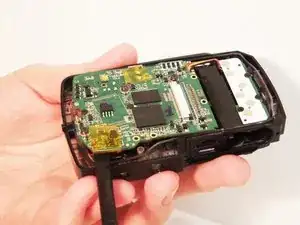

  10. VMESxRwWvHYQxuCX
    • Gently lift the corner of the motherboard out

    • Everything should come out as one component free of the casing

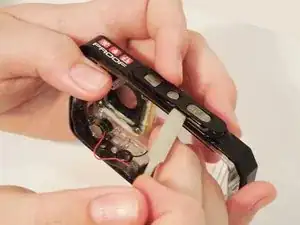

  11. 1PJZv4KGVIGFsxSv
    • Use the metal prying tool to lift off the cover of the buttons

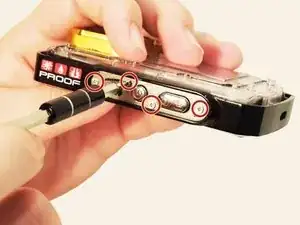

  12. QiN5OkBPKgsbb11m
    • Use the PH00 bit to remove the four screws on the metal plate around the buttons

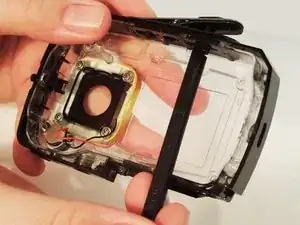

  13. n3gZJMuIoSAcRPEk
    • Finally, use the plastic spudger to push buttons out, and then replace them

Conclusion

To reassemble your device, follow these instructions in reverse order.
