Introduction

Use this guide when you need to replace the motherboard.

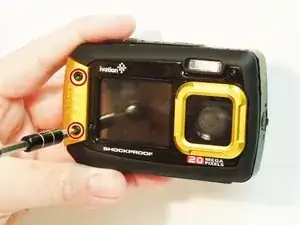

  1. 4JokII3XJheG6gXG
    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

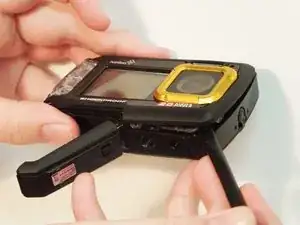

  2. KOtkIpfCyrrPuRF3
    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

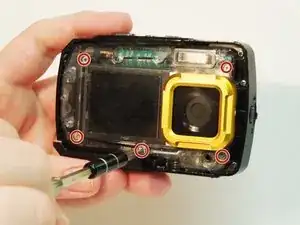

  3. TAHWjyYmxfqJPFQh
    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

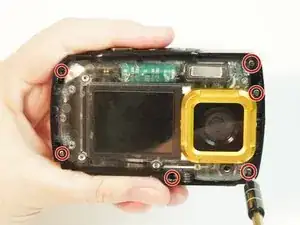

  4. CEjvCG4OOLVOPLOK
    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit

    • These screws are very small and easy to strip so apply consistent pressure when removing them

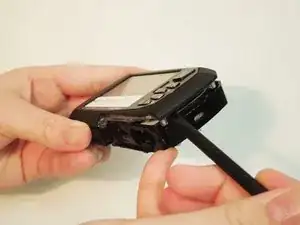

  5. Xk63cORLuiUYpcka
    • Pry off back outer casing using the black spudger or the blue prying tools

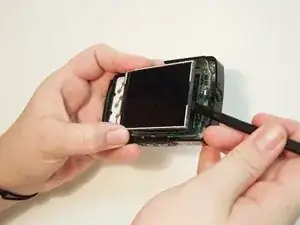

  6. 4TVEB2A4nQfoZxek
    • Carefully remove the screen from the silver casing using a prying tool or the black spudger

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure

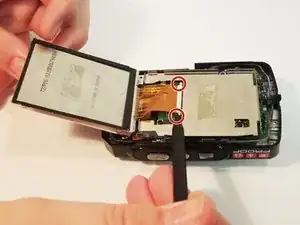

  7. rY4Uq2dpTGD4c1sD
    • Gently push out the pins holding the orange tape down using the pointy end of the spudger

    • Screen and orange tape should slip out as a whole

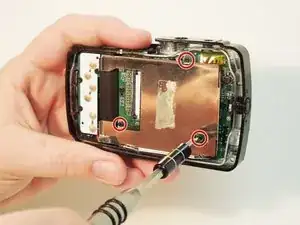

  8. SUoNLSmDNSm4ywpX
    • Remove three screws holding the silver screen casing to the motherboard using the PH00 bit screwdriver

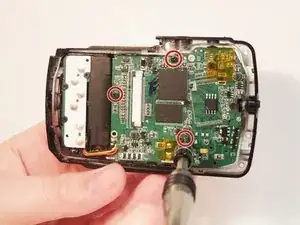

  9. vrKubQAaNIiGCHjV
    • Remove three screws holding the motherboard into the casing using the PH00 bit screwdriver bit

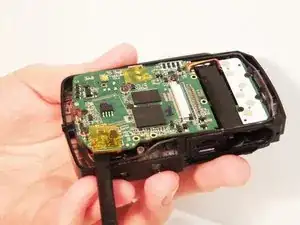

  10. 1LLi2wpqIcQIPken
    • Gently lift the corner of the motherboard out

    • Everything should come out as one component free of the casing

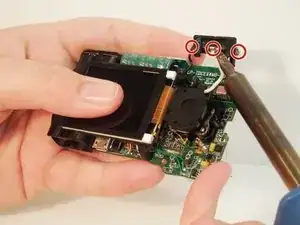

  11. IwdPVTVpGFwCfgYX
    • Remove the soldering on the three wires holding the flash bulb

    • The wires are different colors: red, white, and black

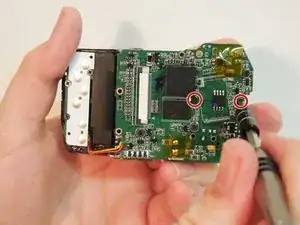

  12. qRBgpD4Rnsd5G11i
    • Remove the two screws holding the lens assembly to the motherboard using the PH00 bit screwdriver

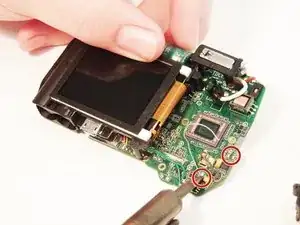

  13. so2WrYdvujAr4qxw
    • Remove the soldering on the 3 wires that are connected to the lens unit

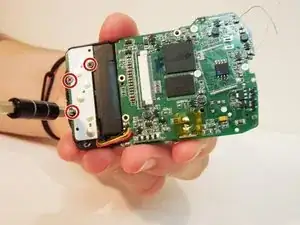

  14. jnWMUtej1KHrW4i2
    • Remove the three screws holding the button sensors to the battery casing using the PH00 screwdriver bit

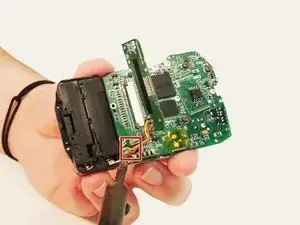

  15. QRajQqU1QZvHpBO3
    • Remove soldering on the grouping of wires connecting the button sensors

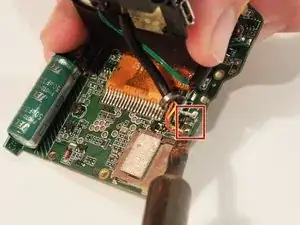

  16. WGYFrPRdDObX1YNx
    • Lift screen to reveal wires underneath

    • Remove soldering connecting screen to the motherboard

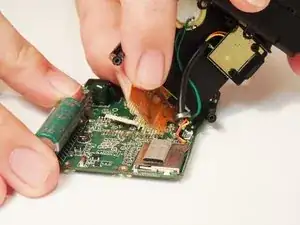

  17. FPcW2GDSsRklNFJm
    • Gently pull orange tape from the motherboard

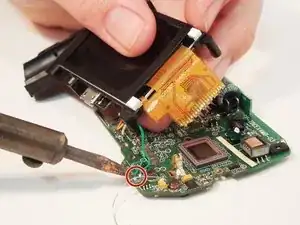

  18. JU1XLZsqIUWI5iuV
    • Remove soldering from the two green wires connected to the motherboard

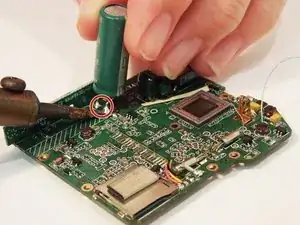

  19. UB2TBWjJC2BkTUTi
    • Gently bend the capacitor upwards

    • Remove soldering from the two connectors

Conclusion

To reassemble your device, follow these instructions in reverse order.
