Jazz UltraTab C1059-HL Screen Replacement

Written By: Amanda Justiniano
  • Comments: 0
Jazz UltraTab C1059-HL Screen Replacement

Difficulty

Difficult

Steps

10

Time Required

No estimate

Introduction

This guide will guide the user to effectively remove and replace the screen. This replacement is the most time consuming. However, if the guide is followed to the letter, the task will be accomplished with minimal damage to the device.

  1. oHJjFbDV5jjLGx1y

    • First step is to remove screws from top and bottom of device.

  2. cgV4LPUT6xVchlyV

    • Remove the back panel of the device.

    • Be careful not to brake/bend the plastic cover of your device.

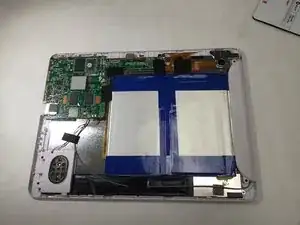

  3. nPSwqVNe245jCUMv

    • Upon removing the back panel, place the device screen down on the table.

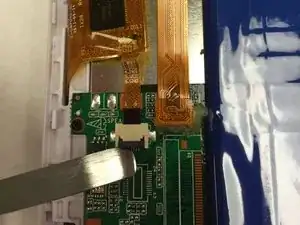

  4. yLVVtJLpu2r1UHXj

    • Remove all data strips attached to the motherboard.

  5. UdFGRWfAp51dASrQ
    UdFGRWfAp51dASrQ
    j1Sghq4ADpyBatSX

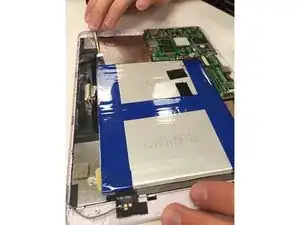

    TeIeT3HIJ3c2T2bl

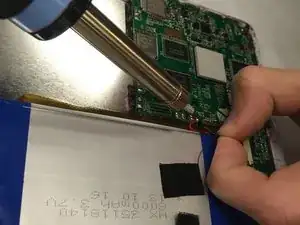

    • Remove the tape around the battery.

    • One of these pieces of tape holds down the battery connection to the mainboard.

    • Use the soldering iron to disconnect these wires.

    • You will need to use a tool to pry off the battery. It will have a good amount of adhesive holding it down.

    • Be cautious not to bend the battery when prying.

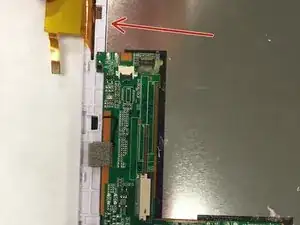

  6. 6Civoj2LcYyD4dLG

    • Once the battery is removed, make sure to remove any and all data strips that are attached.

    • Then begin to unscrew the mother board.

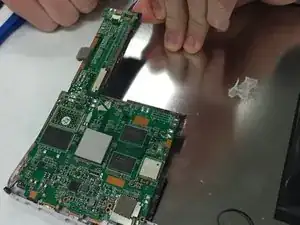

  7. JaNCQdm4ViiPN2Aw

    • Remove the motherboard chip off of the device.

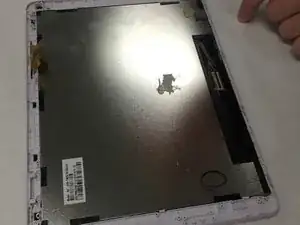

  8. 5wbcs1RQJ4CSM3Pn

    • Your board should look like this after taking all of the components off the screen panel.

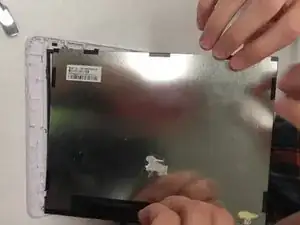

  9. PGaYLXgh1s6SCoKo
    PGaYLXgh1s6SCoKo

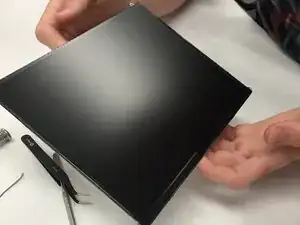

    rfVjiNwHL5WZfPkP

    • Remove the Display Module from the screen cover.

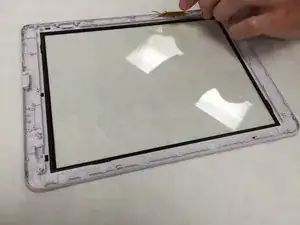

  10. qflIV3jgNqAOkkTJ

    • Now, you can replace your broken or damaged screen!

Conclusion

To reassemble your device, follow these instructions in reverse order.
