Kenwood KDC-BT565U Fuse Replacement

Written By: Darren Evans
  • Comments: 6
Kenwood KDC-BT565U Fuse Replacement

Difficulty

Moderate

Steps

2

Time Required

2 minutes

Introduction

A blown fuse can render the KDC-BT565U unusable. Replacing of a dead fuse with a proper 10 amp car fuse can restore the unit to working condition. This guide shows you how to replace this fuse.

NOTE: This requires the KDC-BT565U unit to be unmounted from the car. This may require specialist assistance.

  1. gfk1sSGdRVfTYyDK

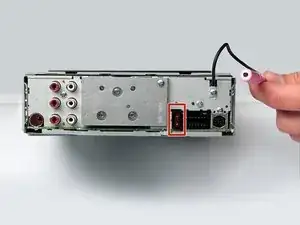

    • The fuse can be found on the back of your radio indicated by the red square in the photo.

  2. J2h2lj1AEO5iILgv
    J2h2lj1AEO5iILgv
    RHPwFwr1tUuTbNkG

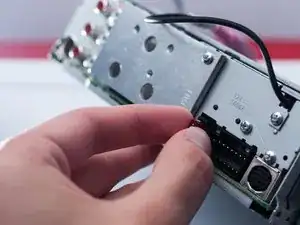

    • Pinch the fuse head with your fingers or a gripping tool to remove. This may require some force.

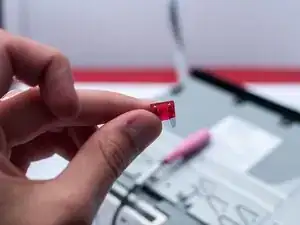

    • Reinsert a fuse that has the same amperage of the fuse that was previously removed (10 amps).

    What if the fuse melted inside

    Merlin Davids -

Conclusion

To reassemble, follow these instructions in reverse order.

Author

Darren Evans

Member since: 15/02/17

273 Reputation

5 comments

I disconnect the negative side on my 502 DPX Kenwood in-dash stereo system I replace the alternator and hook everything back up and now I have no power to the receiver

jasonfisher036@gmail.com -

it does not explain how to pull the reciever out.

d_lalande -

same problem, how to remove the receiver

Jason Armondo -

I accidentally touch power on the radio casing now the radio will not turn on and the fuse is good I need help it’s a kenwood KDC-7011

Javier Castellanos -

ATM fuses do not work, I think it needs to be an ATS and I am having difficulty finding ATS anywhere. ATS was the fuse that I took out of it so that is how I know.

CyberCheese -
