Introduction

This guide will go through the process of replacing the SD Card Reader in the First Generation Amazon Kindle.

  1. q1sA1XFbQnaOFrn5

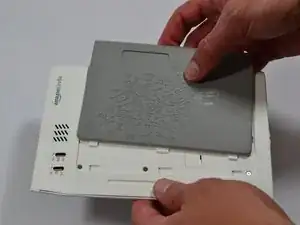

    • Slide the grey plastic cover laterally off the back of the device.

  2. RviTdAvCRHSK3YOF
    RviTdAvCRHSK3YOF
    khZOQcYguUUDL6YJ

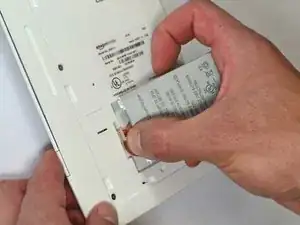

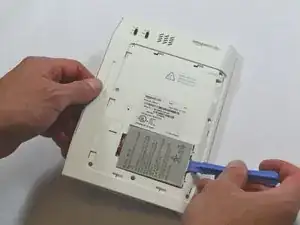

    • Use a plastic opening tool to lift the battery on the side closest to the edge of the device.

    • Unplug the battery from the device by pinching the white connector and pulling.

    • Do not yank the battery or try to disconnect the battery by pulling the wires.

    My present keyboard Kiindle model is 2nd gen-made in China…was warned at purchase by Amazon that it wld not be repairable… will your solution/battery repair work?

    Thanks,Dortrin

    Dorothy Trinen -

  3. DEkO6bMglDNcQ3ra

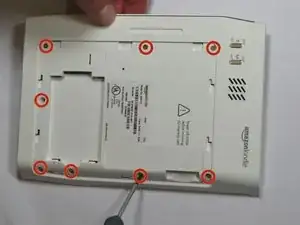

    • Unscrew eight (8) Phillips #00 screws (3 mm).

  4. kQh4t3DuW6lMKtvE
    kQh4t3DuW6lMKtvE
    ITyeUbdXZvLf356P

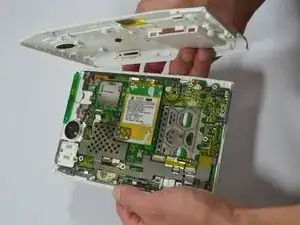

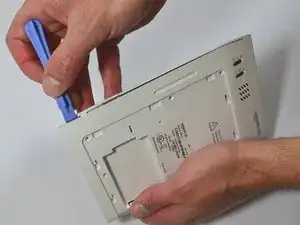

    • Start at one side of the device. Use a plastic opening tool to separate the casing of the device. Slowly work your way around the entire device.

    • Avoid prying between the buttons and the device. This could cause damage to the buttons.

  5. HBqMIRWUytUBWXWt
    HBqMIRWUytUBWXWt
    vXaikVCpkJSmWIrK

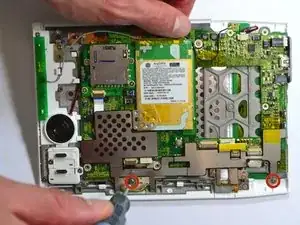

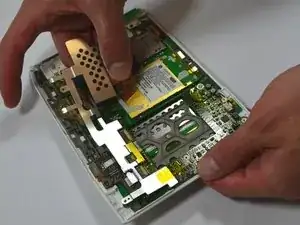

    • Unscrew the two (2) Phillips #00 screws (3 mm) which fasten the metal casing shield.

    • Slowly remove the metal casing shield by lifting it and carefully peeling up the tape.

  6. Pl1W6MvcuwxswP4f

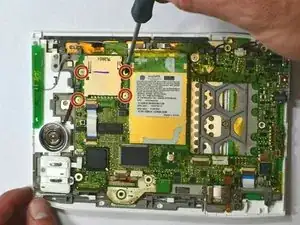

    • Remove the four (4) Phillips #00 screws (3 mm) which fasten the SD Card Reader.

  7. 1OYZ5UPEKu5MyxGP
    1OYZ5UPEKu5MyxGP
    aaYOKZnwBxYADANi

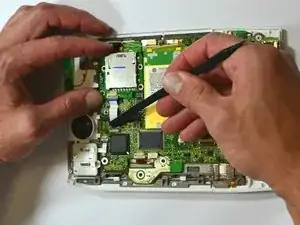

    • Lift the flap attaching the blue and white ribbon cable to the motherboard by lifting it vertically with a spudger.

    • The flap is connected via a hinge. Once you lift the flap, it will stay up and the cable will be lose. Remember to snap it back down during reassembly.

    • Carefully lift the SD Card Reader vertically from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
