Kindle Paperwhite 2nd Generation Power Button Replacement

Written By: Tyler Davis
  • Comments: 7
Kindle Paperwhite 2nd Generation Power Button Replacement

Difficulty

Easy

Steps

4

Time Required

No estimate

Introduction

Disassembling a tablet often requires some gentle prying of the frame. Be sure to exercise care during these first few steps(disassembling), and do not lose your screws! The Paperwhite is a sturdy tablet that can be broken down into just a few components. This guide will show you in just three short steps how to replace a bad power button.

  1. i6UxHQPAn252gGX2
    i6UxHQPAn252gGX2
    suiJJoUIOVPglCvp

    • Insert plastic opening tool into the corners of the Paperwhite and slide around the edge perimeter to remove bezel.

    • Be sure to begin prying along the edges, these are the optimal points for removing the bezel.

  2. 53ypbnLickWdAcBh
    53ypbnLickWdAcBh
    ntpIyCBdlFau5U5s

    • Remove the eleven 3.2 mm Phillips 000 screws from corners of mid-frame and from behind the black strip as shown.

    • Do not forget the screw in the middle of the black adhesive strip.

  3. q3m5GIQjPnVlKVap

    • Carefully lift and remove the mid-frame.

  4. ysoeOQBrIBHRGi1x
    ysoeOQBrIBHRGi1x
    Icse4iY52LcGUc1U

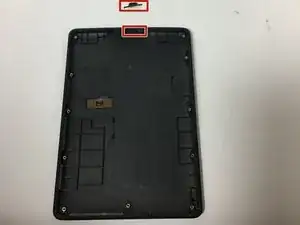

    • Remove the power button carefully using a blue plastic opening tool, and replace with a functional unit.

    Can you tell me where to find a replacement button?

    Chris Lewis -

    You ever found the button?

    Luka Buic -

    funny. I couldn’t locate a button either. I did however use an old Nintendo DS stylus sandpapered down. this would go into the power button hole and turn it on/off. hope it helps others!

    Darren Rutgers -

Conclusion

To reassemble your device, follow these instructions in reverse order.
