Introduction

  1. GveLHYOh6qZZXP6O
    • Unscrew 2 screws above, two on the side.

    • Remove the black cover

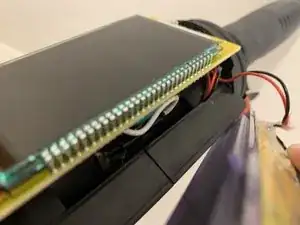

  2. l55YTGDmtoDtpBeu
    l55YTGDmtoDtpBeu
    A5udTnVEwWPSDZVW

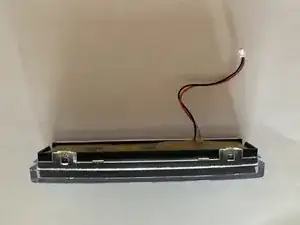

    QUvtCr1mJp2226UR
    • Unscrew the mainboard (2 screws)

    • Unplug light assembly (remember its position and orientation)

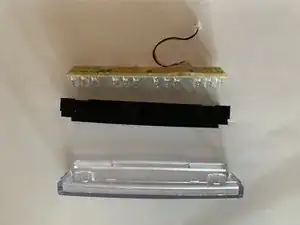

  3. Z1cCqocsngGfAKtB
    • Replace the broken light board with a new one.

    • Screw back the mainboard (two screws)

    • Place back the light in its initial position

    • Add the black cover, make sure it snaps together with the light assembly

    • Put back the 4 scews for the cover

Conclusion

Before reassembly you can try to power on and test the light, making sure you don’t touch any exposed wiring.
