LCD X2gen Display disassembly

Written By: Aleks
  • Comments: 0
LCD X2gen Display disassembly

Difficulty

Moderate

Steps

13

Time Required

No estimate

Introduction

  1. lCbbjGATqPkIHtv1

    • X2gen 22 lcd Screen repair guide

  2. KG4nLbXdSe5nlZSZ

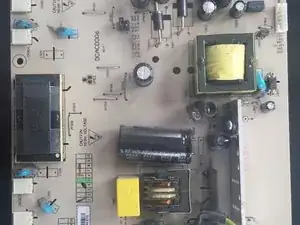

    • Power board displaying the capacitors to be replaced

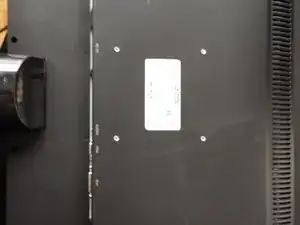

  3. pLxylDjHDvFe1CSs

    • Display viewed laying face down on the working table (my dining table)

    • Remove the 6 screws. 4 on the corners and 2 middle bottom.

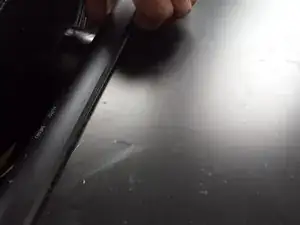

  4. hO2BIMCWxUKggypW

    • Remove front bezel by lifting softly starting from the middle and moving out to the corners.

  5. DiQrRGSktr3l2TQV

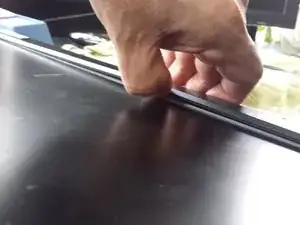

    • Top middle

  6. PtTV4afMMPNkDASn

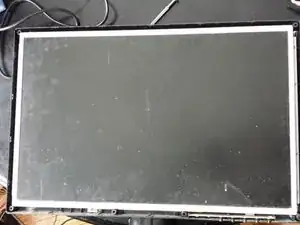

    • Front bezel removed.

    • Observe: the control board, bottom right.

    • exposed screws on both sides (4 left, 4 right) holding the LCD to the back cover.

  7. rumtKdCrNCylyaCZ

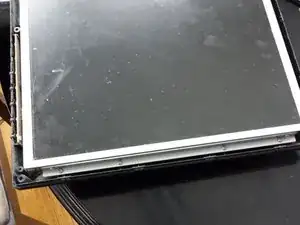

    • Prepare to remove the 4 screws on each side to lift the LCD. Do not try to remove it after unscrewing the 8 screws. There are cables connected on the back.

    • This pic shows the right side

  8. yxlyBDHvd1VAWjhw

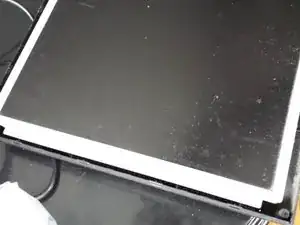

    • This pic shows the left side

  9. WxMfppksnp26yJMO
    WxMfppksnp26yJMO

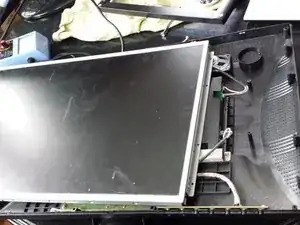

    3vebX35SVR4t4lNJ

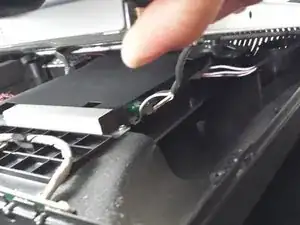

    • Lift carefully about 2 inch to expose the back light connections, 2 pink and 2 white.

    • Slide the monitor to the left about 3-4 inch. to have access to the connections.

  10. wGFNoXmCbYZWnQ5S

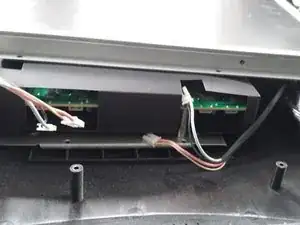

    • Carefully, unplug both connectors

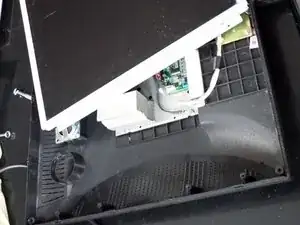

  11. RB5DIsZodjIxemuX
    RB5DIsZodjIxemuX

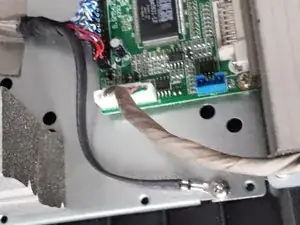

    jGwoTkb3OIRtUdJU

    • After removing the connectors, slide it about 3-5 inches to the right to have access to the data connector and ground

  12. 4ZaW6WgnPjRyXvSL

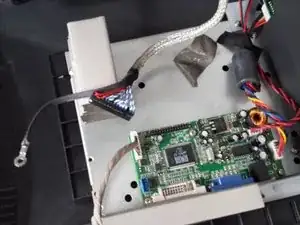

    • Remove the data connector and ground.

    • Lift display. Is now completely free

Conclusion

To reassemble your device, follow these instructions in reverse order.
