Introduction

The Maker Shed Learn to solder badge is a great project for beginner electronics enthusiasts. It teaches the fundamentals of electronics and soldering in a safe, fun, quick way.

    • Solder serves somewhat as a glue for electronics. Soldering is a process of melting a metal "filler" material into a joint between two metal surfaces.

    • Terminology:

    • Junction: A void between two metallic objects about to be filled with solder

    • Joint: An electromechanical connection formed by melting solder into the junction of two metallic materials.

  1. qDQgIDWPQ5BICETt

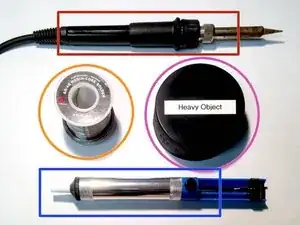

    • Maker sure you have the following tools before beginning:

    • Soldering Iron

    • 60/40 rosin core leaded solder

    • Solder sucker

    • A Heavy Object: something with a small footprint, but still heavy enough to hold the PCB in place. We suggest a hockey puck.

    • Scotch tape

    • Diagonal Cutters

    • Do not use unleaded solder! This variant includes a special flux core which is toxic if inhaled.

    • 60/40 lead solder includes lead. Lead is a toxic element, and should be handled carefully. After handling leaded solder do not touch your mouth or any other mucus membranes (ear, nose, etc) before washing your hands.

  2. SNQBjCyB1RMJVmFh
    SNQBjCyB1RMJVmFh
    gBkNQdwu6uWCyVli
    2PKTkiwMUWqCNBsP

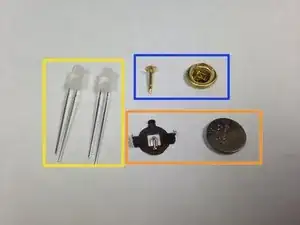

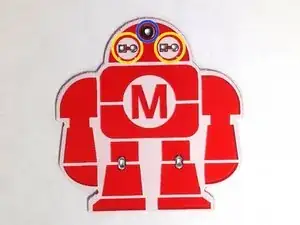

    • Printed Circuit Board (PCB)

    • Pinhole

    • LED spots

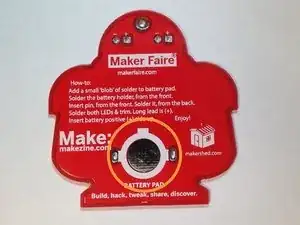

    • Battery pad

    • Pin and its backing

    • RGB LED (2)

    • Battery holder and CR 1220 Lithium battery

    • This iron gets HOT! Use caution when handling the iron apparatus and anything it comes in contact with. When in doubt, assume the surface is hot.

    • The rubber handle of the iron should not get hot (although it may become warm over time, this is not an issue). This is the safe location to handle the iron.

    • Any exposed metallic portion of the iron WILL be hot. The majority of the heat is located in the tip, but the base of the heating element (near the hand grips) is also hot enough to burn. DON'T TOUCH IT. EVER. WE MEAN IT.

    • Keep the iron in it's stand when not currently in use. Never leave a warm iron unattended. Before leaving a setup, ensure that the iron is UNPLUGGED and COLD. (Do not touch the tip of the iron to confirm this! If the iron is hot, this will be evident by observing radiating heat.)

    • Make sure the soldering iron is properly plugged into the base unit and is powered on. (red power switch is located on the side of the base unit)

    • Use the dial to set the temperature to read 600 degrees Fahrenheit.

    • Soak the included sponge with water, then squeeze excess water out. [photo]

    • This sponge is in constant contact with leaded solder. Any water it comes in contact with is considered dangerously CONTAMINATED and should be handled accordingly. Ensure that there is no possibility of an individual consuming or otherwise coming in contact with the same water source as the sponge has.

    • Example of POOR procedure: dunking the sponge in a glass of water, then leaving the water out for an individual to accidentally drink.

    • Example of SAFE procedure: rinsing the sponge in a utility sink marked as unsuitable for drinking, in addition to ensuring that the sink has completely drained (drain disposal is okay for this quantity of lead).

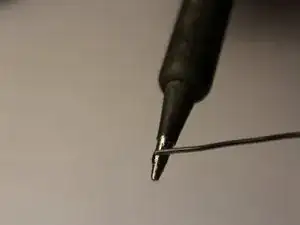

  3. FZl2NCfGIGEa5Xwm
    FZl2NCfGIGEa5Xwm
    K3iYTW4s32woITon
    • Always hold the iron over a durable surface, such as a table or workbench, which will protect your limbs (and others') in the event of a mishap.

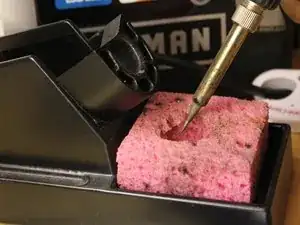

    • Hold the iron in your hand. Add a small amount of solder to the tip of the iron. It should melt instantly upon contact.

    • Immediately wipe the solder off with the wet sponge on the iron stand. [photo]

    • Tinning of the soldering iron tip should be done regularly. It's good practice to tin the tip EVERY time you place the iron in its stand.

    • If the tip of the iron is ever NOT silver and shiny in color, it is in need of tinning ASAP.

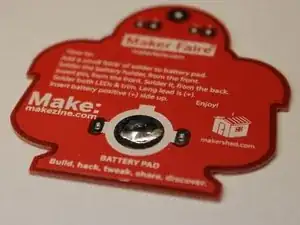

  4. aigvSnEZXEkUaBIf
    aigvSnEZXEkUaBIf
    oRqlgYJyq1gD4cKY
    AsXsriLLhsXnukSK

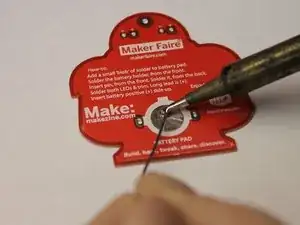

    • Rest the soldering iron on the battery pad to heat it up.

    • Once the pad is hot enough, begin adding solder.

    • If solder does not flow immediately when it comes in contact with the pad, remove it and allow the pad to heat up longer.

    • Apply a large gob of solder to the pad (as shown).

    • Tin the iron and return it to its stand.

  5. LCQlRJ3S6BSwyAwu
    LCQlRJ3S6BSwyAwu
    fAGrt1JHZmC3EPib
    JdETDLJvYqWXXmBp

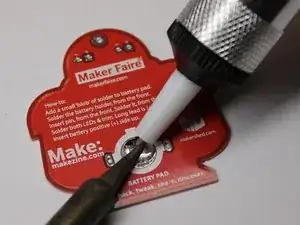

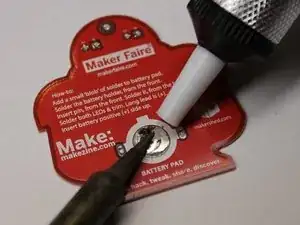

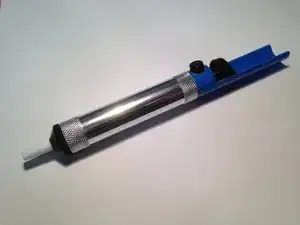

    • Desoldering tools are great for cleaning up mistakes. They're really easy to use!

    • Apply a copious amount of solder to the battery pad, as explained in the previous step. [photo with copious solder, iron, and desoldering tool in play]

    • Depress the plunger in the desoldering tool until it clicks.

    • Heat up the joint until the solder flows.

    • Press the tip of the desoldering tool into the pool of solder. Simultaneously press the return button on the tool.

    • Whoop! Away goes the solder! Press the plunger down again to release the solder it collected. [photo with iron and desoldering tool in play, solder gone]

    • If at any point in this tutorial you make a mistake, just remove the solder from the joint with this method and start that step over.

  6. H3BNWvUyNnyR5ydQ
    H3BNWvUyNnyR5ydQ
    D5FkC4m3PVT5XRZM
    mRJVJikl1VFkEjVE

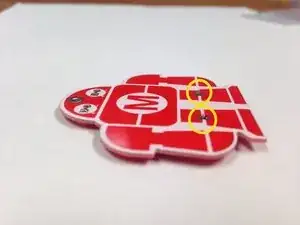

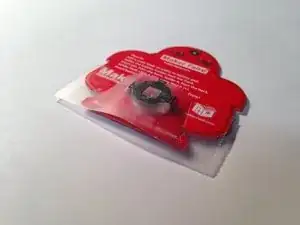

    • Align the battery holder tabs with the white silkscreen outline on the PCB. Use tape to hold battery holder in place, if helpful.

    • Invert the board. The battery holder tabs should extrude through the holes, as shown. If this is not the case, reposition the tabs accordingly.

  7. tbRicqypO4jWKR2P
    tbRicqypO4jWKR2P
    UoTVTLfosD1SGQcX

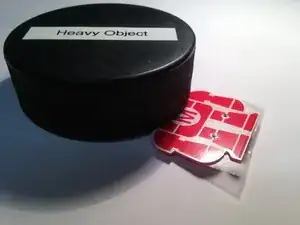

    • Place a heavy object on the board to keep it from sliding around on the table.

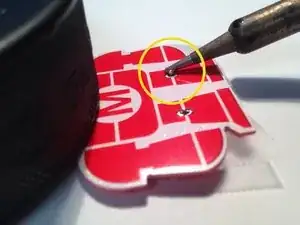

    • Rest the iron between the extruding battery holder tab and the corresponding solder pad to begin heating them up.

    • The junction will not heat up immediately. It is necessary to hold the iron in place for about 20-30 seconds before sufficiently hot.

    • Applying pressure to the junction, as opposed to simply laying the iron, will improve heat conductivity. This will speed up the process and result in a better solder joint.

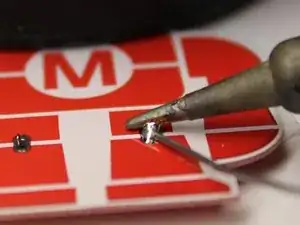

  8. YZAuTdxxLY3aPENJ
    YZAuTdxxLY3aPENJ
    CVXvNUDXrpOXHpBS
    aoVAkpRoYqdUmDld

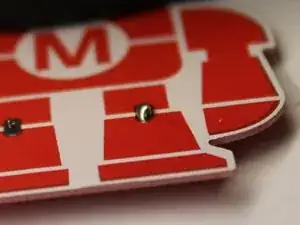

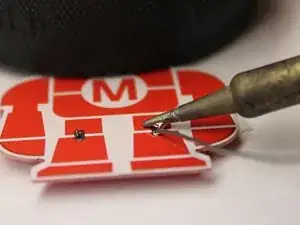

    • Check if the junction is hot enough. Without removing the iron, begin feeding solder into the junction between the tab and the pad. If the iron is on one side of the tab, feed the solder from the other side (as depicted).

    • Applying solder directly to the iron may appear sufficient, but will result in a cold joint. Always apply solder to a junction, not directly to the iron.

    • Smoke is a normal occurrence, and is safe to breath (but obviously not in a prolonged setting). The smoke is due to the rosin flux core burning off. It contains no additional toxins.

    • If solder melts immediately upon contact, the junction is hot enough!

    • If solder only partially melts, or does not melt at all, more time is required to heat up the junction.

    • Apply a generous amount of solder to the junction. The resulting solder joint should be shiny and appear as shown. If this is not the case, lay the iron back on the pad and reflow the joint until the solder liquifies again.

    • Tin the tip of the iron and then return it to its stand.

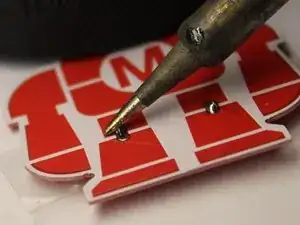

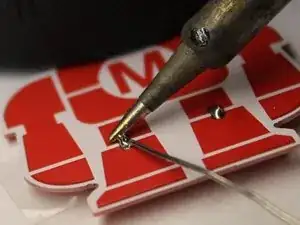

  9. awf6taaYcqyxCvc5
    awf6taaYcqyxCvc5
    hPAvOy3rJTUJIHKC
    gfyHMLXKSqVHuPKP

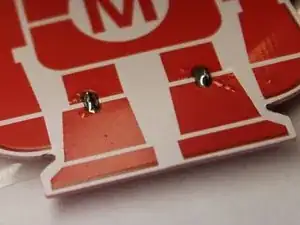

    • Repeat the previous step and solder the second battery terminal.

    • Tin the tip of the iron, then return it to its stand.

  10. KHXUOTwLOwHonvHW
    KHXUOTwLOwHonvHW
    sh6qZFRaHBVLcB4g
    MQHHptxmIyClAkIV

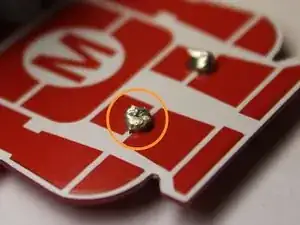

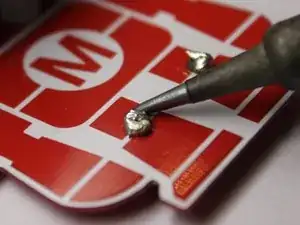

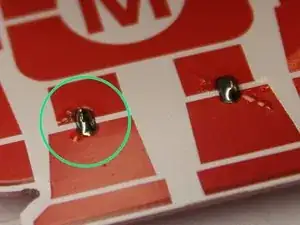

    • Cold solder joints, or "crappy" solder joints, aren't electrically or structurally stable. If a joint doesn't appear perfect, it's probably cold. Reflow the joint by applying the iron and allowing the solder to flow through the junction again.

    • Cold solder joint

    • Same joint, reflowed for perfection

    • If ever a joint seems out of luck, feel free to start over. Use the solder sucker to remove the solder in the joint, then reheat the junction and re-add the solder.

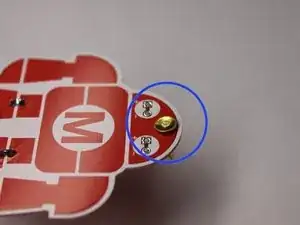

  11. cwLQHSRd2BSLi1Gj
    cwLQHSRd2BSLi1Gj
    5r1IirPgtciBEPKp
    cXsAIewXCDBcQAIY

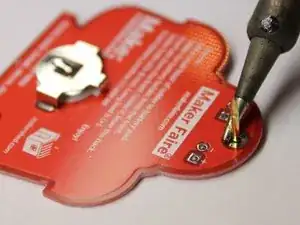

    • Insert the pin from the front of the board.

    • Place the board on the table so the pin is pointing upwards, as depicted.

    • Begin heating the junction between the pin and the pad.

  12. a6ygFoJD6XMOMFsj
    a6ygFoJD6XMOMFsj
    IiOhghunSPEGLRIl
    JN6yRksJd4UO3mGU

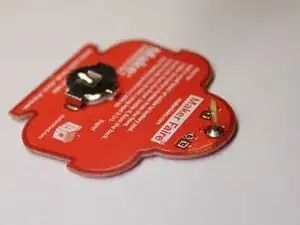

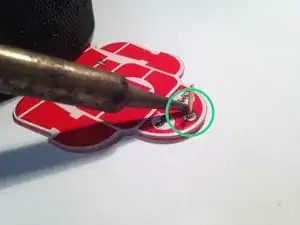

    • Continue heating the junction by positioning the iron as previously instructed.

    • The material in this junction is sufficiently greater in mass than the battery holder, thus it will require more heat to raise it to the correct temperature. Leave the iron in place a little longer than previously, and check how well solder flows when you begin.

    • Feed solder into the junction.

    • Check for a cold solder joint. Reflow if necessary.

    • Tin the tip of the iron and return the iron to its stand.

  13. NdNmCNfPrsfxqxOI
    NdNmCNfPrsfxqxOI
    oKrHcWvF4fRwUAsq
    5Jv2DOh2WmVoREPx

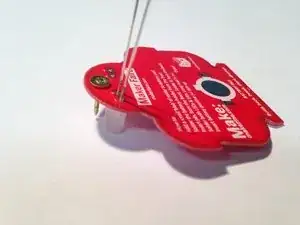

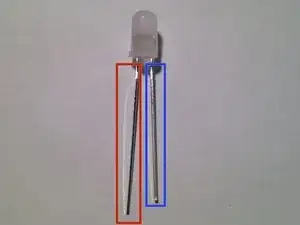

    • LEDs are polarized: one side of the diode is positive, the other is negative. It is typical convention for an LED to be manufactured with its positive lead longer than the negative lead.

    • Positive lead (longer)

    • Negative lead (shorter)

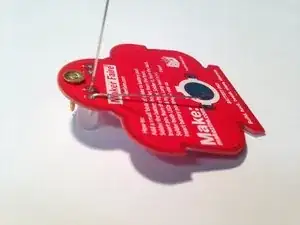

    • Insert the LED into the PCB as illustrated. Be sure to match up the positive lead of the LED (the longer one) with the positive pad on the PCB (marked with a "+").

    • Bend one of the leads down tightly. This serves as a securement so the part doesn't fall away while you solder.

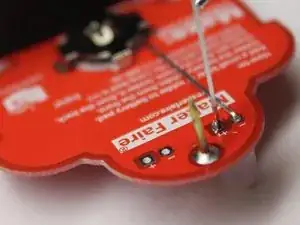

  14. kWIaFsXtKrgU52RZ
    kWIaFsXtKrgU52RZ
    CEQVX6ZOReUrxYJO
    NKt1ON3RT1Prw1RM

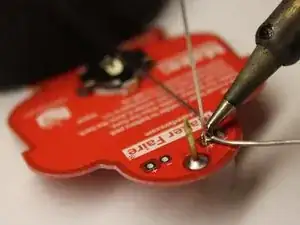

    • It does not mater which lead of the LED you begin soldering.

    • Begin heating up the junction between an LED lead and its pad by pressing the iron into the junction as illustrated.

    • Once the junction is hot enough, add solder until the joint is strong enough.

    • Tin the iron tip, then return it to its stand.

  15. 15WVvqRCMsvNpPUD
    15WVvqRCMsvNpPUD
    PVVVWhkvFpZaN2jA

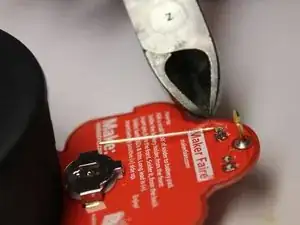

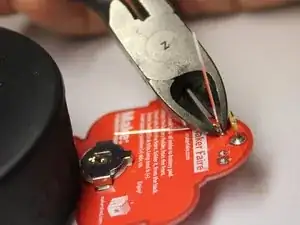

    • Only cut off leads that you have already soldered in place.

    • Use diagonal cutters to clip off the excess leads on the LED.

    • Cut as far to the solder join as you can.

  16. NbYdQmjjWdLOqnAl
    NbYdQmjjWdLOqnAl
    By5l5PlsJqYw5RgY
    walTmkQYLGLhbuWl

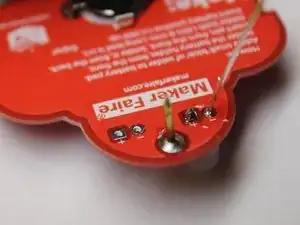

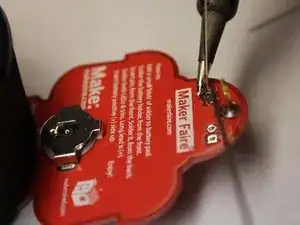

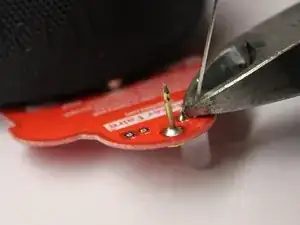

    • Bend up the second lead and begin to heat it.

    • When sufficiently hot, apply solder to secure the joint.

    • Tin the tip of the iron, then return it to its stand.

    • Cut the lead off when you're finished.

  17. c25no42RxwFb3nfC
    c25no42RxwFb3nfC
    3haJOFjkFIvJqiRM
    LFwcLqZBTlvQHbp4

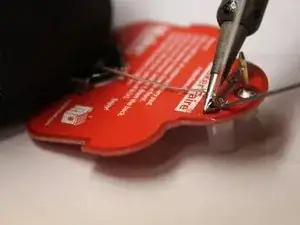

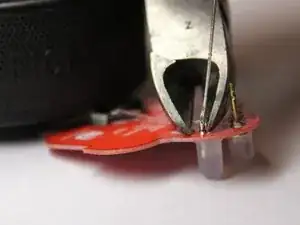

    • Repeat the steps taken previously.

    • Position the LED and bend one lead down to hold it in place.

    • Solder the other lead in place, then clip off the excess.

    • Bend the first lead back up, then solder in it place as well. Clip the lead when complete.

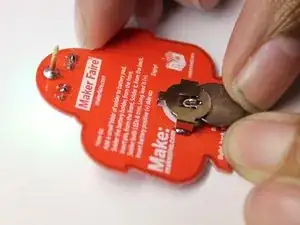

  18. Wfmpik1UMEyxJ3Ei
    Wfmpik1UMEyxJ3Ei
    i2ae1VUyijsVSlsX

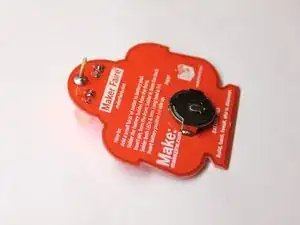

    • Slide the battery into the battery holder on the badge. One side of the battery has text -- this side should be facing up (away from the PCB) as illustrated.

    • If the LEDs do not light up, chances are the battery was inserted upside down. Don't fret! The electronics are fine! Just flip the battery around and it should work.

    • With your thumb and forefinger, press the two levers on the pin-backing to release the clutch. Press the backing around the pin exposed on the board.

    • Remove and reattach the pin when securing to clothing.
