Lenovo Essential G555-0873 Heat Sink Replacement

Written By: Michael Elledge
  • Comments: 1
Lenovo Essential G555-0873 Heat Sink Replacement

Difficulty

Moderate

Steps

7

Time Required

7 minutes

Introduction

You can use this guide to remove the heat sink in for cleaning, replacement or to gain access to the CPU.

  1. mWU5CuJqRNrCbVxP

    • Unscrew the two 5.1 mm screws that secure the bottom cover.

    • Note that the screws will not come all the way out of the sockets.

  2. djhsMbKPRwYOUn1n

    • Lift from the notch until the back panel comes up.

  3. 2UgItfFxoPRZMEmJ

    • Disconnect the fan from the motherboard by pulling the plug shown in the picture.

  4. XYGnPqwTslYDTknP

    • Unscrew the three 4.6mm screws shown in the picture.

  5. BdRAkoXKUT1pftFX

    • Gently lift the fan straight up until it is lifted out of the case.

  6. C5OnKG1JuhML5F5Z

    • Unscrew the four 7.3 mm screws shown in the picture.

    • Note that springs are attached to the screws. Do not remove the springs.

  7. QkydA3aMP1HTxNgP
    QkydA3aMP1HTxNgP
    Cu6rYRnvSrLLwPHI

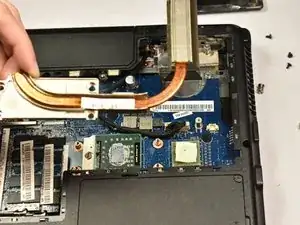

    • Pull the heat sink assembly out of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
