Lenovo IdeaPad 330-15IKB Battery Replacement

Written By: Marian Anghel
  • Comments: 1
Lenovo IdeaPad 330-15IKB Battery Replacement

Difficulty

Easy

Steps

8

Time Required

10 minutes

Introduction

  1. eEDxLdxEFsQ2yNWY

    • Turn the laptop off and over.

  2. ZNTnJOaAAbl5F1dj
    ZNTnJOaAAbl5F1dj
    BEnel5s1TTxFXRlQ

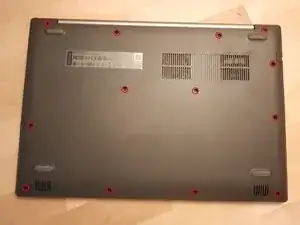

    • Remove the 13 Phillips-head screws.

  3. OgfuAdhcim3HUUoI

    • Pull the HDD caddy.

  4. 2aYuoWJYvAxWy3dA

    • Use a spudger or picks to lift open the back panel.

    • There are clips on every side.

  5. CkMdqkGGOJ6RvUKn

    • The battery is in the lower right corner.

  6. HHGRGS4OcMXLi1wg

    • Unplug the battery connector.

  7. cYvnY2jcYGeHZp5V

    • There are 4 Phillips Head Screws.

  8. HtIl63yXWN6BmrDC

    • Lift the battery and place in the new one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
