Lenovo Slim DVD Burner DB65 Disc Tray Locking Mechanism Replacement

Written By: Matthew Green
  • Comments: 1
Lenovo Slim DVD Burner DB65 Disc Tray Locking Mechanism Replacement

Difficulty

Easy

Steps

7

Time Required

10 minutes

Introduction

This guide shows how to take apart the Lenovo Slim DVD Burner DB65 to replace the disc tray locking mechanism.

  1. GPsdgwHScQ5rOKZO
    GPsdgwHScQ5rOKZO
    YLifylTtIHUog4kU

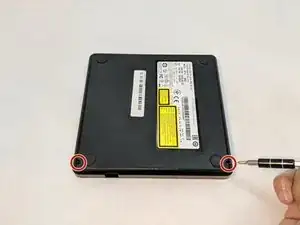

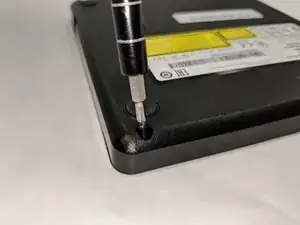

    • Flip the unit over so that way the bottom is facing you.

    • Remove the two black 7.6mm Phillips #0 screws from the bottom cover.

  2. N1SlJLNgRfIyG1WC
    N1SlJLNgRfIyG1WC
    lPmIlq2jBbGELAPV

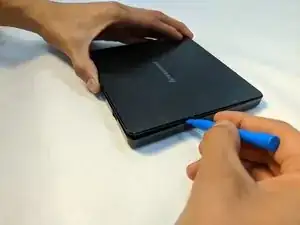

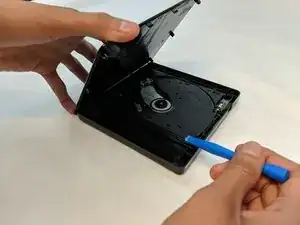

    • Use the iFixit Opening Tool to gently pry the unit apart to gain access to the interior.

    • If the top seems stuck, run the iFixit Opening Tool along the edge while simultaneously pulling up on the top with your fingers. Continue to apply pressure until it opens completely.

  3. KCyFFdkDFOuBhYI4
    KCyFFdkDFOuBhYI4
    MYaGGe1PcRudxxXs

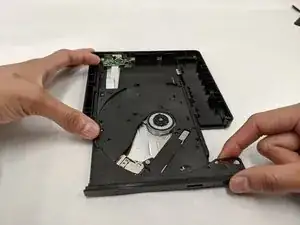

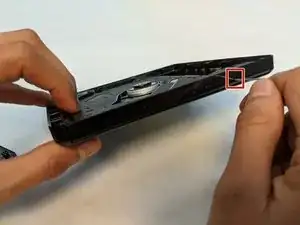

    • Open the device tray by inserting a paper clip into the eject hole.

  4. 1WXuboEVglSyWYPt
    1WXuboEVglSyWYPt
    HpChXlbE5WqdTJxm

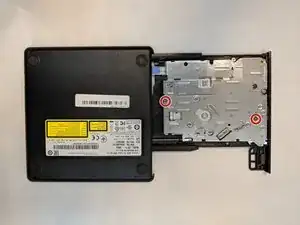

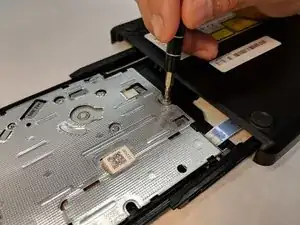

    • Turn the unit over and remove the two silver 3mm Phillips #0 screws from the aluminum cover.

  5. NAqMYSlVHNGm4DMT

    • Lift the silver coverup to expose the internal components.

    • If the cover seems stuck gently pull up on one edge. The cover should remove completely after one side is free.

  6. gkILwnZwkFVfJf6P
    gkILwnZwkFVfJf6P
    M5fkvmKvHPGI1MIB

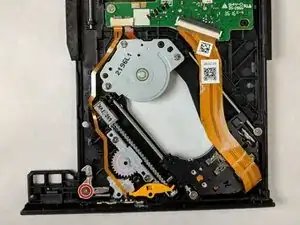

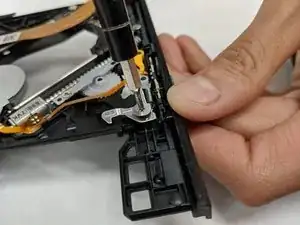

    • Remove the single 3mm Phillips #0 screw.

  7. EaVFMUNxMWHgyykT
    EaVFMUNxMWHgyykT
    UNoOKmcvEE4JNBwa

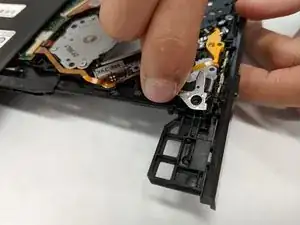

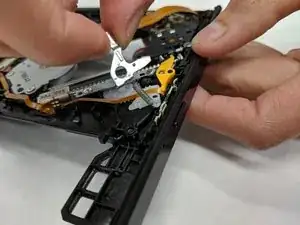

    • Lift and remove the silver tray locking mechanism by detaching the spring which is hooked on the white plastic internal component.

    • Be careful when removing this mechanism—the spring is delicate.

Conclusion

To reassemble your device, follow these instructions in reverse order.
