Lenovo ThinkPad Yoga RAM Replacement

Written By: Michael Nessralla
  • Comments: 0
Lenovo ThinkPad Yoga RAM Replacement

Difficulty

Moderate

Steps

4

Time Required

20 - 30 minutes

Introduction

When the Lenovo ThinkPad Yoga laptop powers down unexpectedly, one of the most common issues may be faulty RAM (otherwise known as Random Access Memory). Use this guide to identify the problem and identify whether or not your device needs new RAM.

  1. cMaaJFEUyysNiTia
    cMaaJFEUyysNiTia
    tXKS5fkdGPEmFJOP
    BgPvxfiDERJcH1ie

    • Flip the laptop over so the bottom is facing you.

    • Remove the ten screws using a Phillips #1 screwdriver.

    • Using the plastic opening tool, pry the bottom cover off the laptop.

  2. YUOuJY3ieEMPCnBL
    YUOuJY3ieEMPCnBL
    NZlmxM4OwapglaMV
    Z1J3peJPQw65oytt

    • Remove two screws from the battery using a Phillips #1 screwdriver.

    • Disconnect the battery connector from the motherboard.

    • Remove the battery from the laptop.

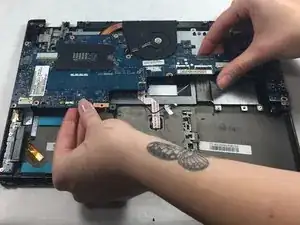

  3. KxFMWJrAAjLFwVva
    KxFMWJrAAjLFwVva
    OgMYyH5wPtfgQBmF
    h51PbFkhAOXvgqOL

    • Remove nine screws from the motherboard with a Phillips #1 screwdriver.

    • Remove all ribbon cables attached to the motherboard.

    • Lift the motherboard out of the device.

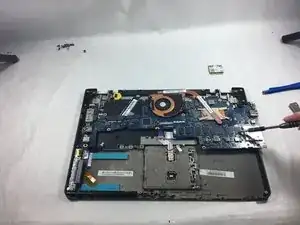

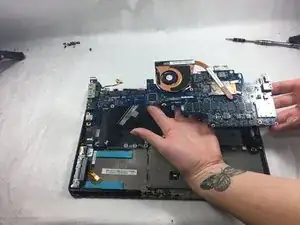

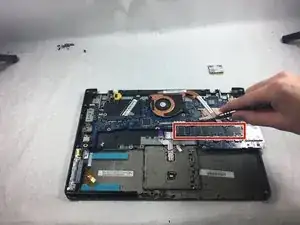

  4. 4RJQ4YoZ6ltQFpdX
    4RJQ4YoZ6ltQFpdX
    ioSbtMVNT4EAGjg5
    amEPF4lPNHyA2oEi

    • Desolder the RAM to replace it.

    • You may also opt to replace the entire motherboard if soldering is not an option.

Conclusion

To reassemble your device, follow these instructions in reverse order.
