Lenovo bluetooth mouse N6901A disassembly

Written By: Shinn Chyang Chen
  • Comments: 0
Lenovo bluetooth mouse N6901A disassembly

Difficulty

Easy

Steps

5

Time Required

10 - 15 minutes

Introduction

  1. Jku1jKFtLSsiuqLy

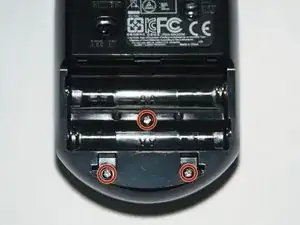

    • 3 Phillips screws are located under the battery cover, unscrew them

  2. bQbdhUqkeiJ4aOHq
    bQbdhUqkeiJ4aOHq
    ufGH4exwUoToRMkR

    • The mouse cover at the bottom should move freely but at the top is hold by 2 brackets

    • In order to remove the mouse cover, you will need to rock left/right the cover and slide it down (from scroll wheel toward the Lenovo logo)

  3. iQKVK5QGCCgw5Vfa
    iQKVK5QGCCgw5Vfa
    CAZmZWAPEsAY1S1G

    • At this point, you have separated the mouse cover

  4. hbgSN2geLeWXPDS3

    • Use the appropriate tool to remove gently the power connector. Don't use your finger, you might brake the cable

  5. OAavnavnTWJ2RRSb
    OAavnavnTWJ2RRSb
    uJt5WSlGxCFfhIwT

    • The micro switch can be replaced by OMRON D2FC-F-7N but you need to trim the solder terminals with a flush wire cutter

    • When you reassemble the mouse, make sure you don't crush the power cable

Conclusion

To reassemble your device, follow these instructions in reverse order.
