Introduction
Use this guide to remove and replace one of the G keys on the Logitech G915 TKL keyboard. A G key may need to be replaced if it's loose and not registering inputs properly, or simply broken for one reason or another.
A Phillips #00 Screwdriver is necessary to complete this guide.
Tools
-
-

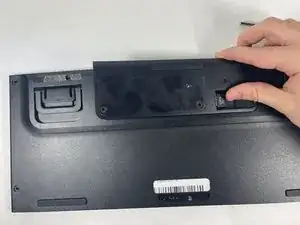

Remove the Battery.
-
This will require the removal of the back sticker and unscrewing the two 2.5 mm #0 Phillips screws circled.
-
-
-
Remove the remaining 2 mm #00 Phillips back screws.
-
3 screws are hidden under the rubber rests of the keyboard.
-
-
-
Remove the 2 mm #00 Phillips motherboard screws.
-
The G1-G8 keys are held in place by the motherboard itself. Once the motherboard is detached, they can be easily removed and replaced by hand.
-
To reassemble your device, follow these instructions in reverse order.
