Lumen Projector Bulb Replacement

Difficulty

Easy

Steps

9

Time Required

8 minutes

Introduction

This guide will provide a step-by-step process on how to safely remove and replace a light bulb for a Ben-Q projector. In the process of this removal, it will be demonstrated how to clean the area of any dust and how to recycle the waste material- old light bulb.

  1. CYgmEQjqACigOhwn

    • Unplug the projector from the wall outlet to allow for the light bulb to cool for at least 30 minutes.

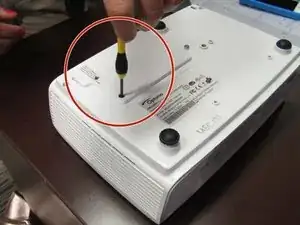

  2. 2GtiatnhWbNdWDBO

    • On the bottom side of the projector, locate and unscrew the back cover using a Philip's head screwdriver.

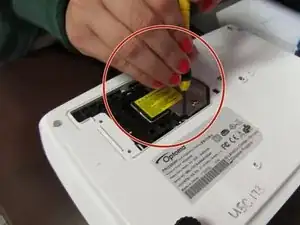

  3. oJuWpkBGM2ZsOY12

    • Unscrew the bulb screws on either side of the silver plate.

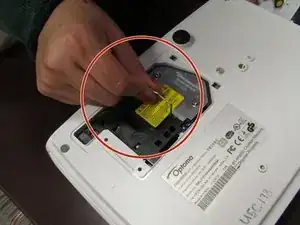

  4. pHdbjrenkNjQ3omZ

    • Remove the light bulb from the projector by lifting the silver handle and pulling up.

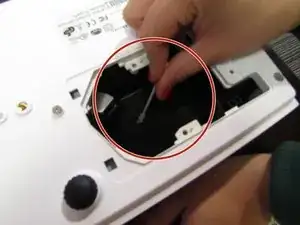

  5. hfldlAOdGFRMbFMB

    • Clean the now vacant area where the light bulb once belonged of dust and particles using a Q-tip.

  6. GsBkhJQVCy4SdYBn

    • Use a new Q-tip to clean the fan blades and hole in which the light enters.

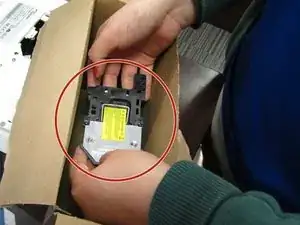

  7. VXGnqAQAIKW1Ihqu

    • Open and remove the new light bulb from its box with clean hands to prevent from getting the bulb dirty.

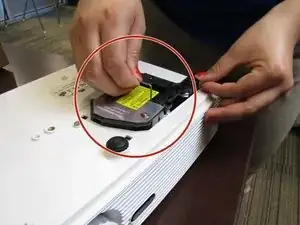

  8. JgInvOC5vVFcYOJI

    • Place the new bulb inside making sure to align the bulb towards the light hole and the wire connector towards the wire receiver.

  9. pnobfvdmgQXHURVW

    • Dispose of the bulb by sending it to a recycling center.

Conclusion

To reassemble your device, follow these instructions in reverse order.
