Introduction

Add or remove links in order to replace broken links or resize the watch band.

  1. DyVOF3QconaZZARI
    • Measure the watch band to decide how many links to remove.

    • It is better to remove an even number of links to keep the clasp centered and symmetrical.

  2. QKRiQFdE6wMZEeYX
    QKRiQFdE6wMZEeYX
    xMQQLoqUrFrtKueA

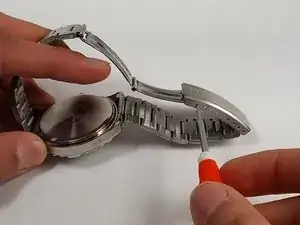

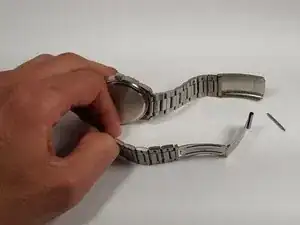

    • Separate the clasp by pushing in the spring pin.

  3. sxGyRVPALY3QcReU
    sxGyRVPALY3QcReU
    Q5T4ecY5gGqZfjWL

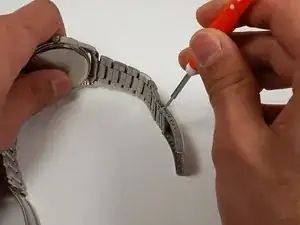

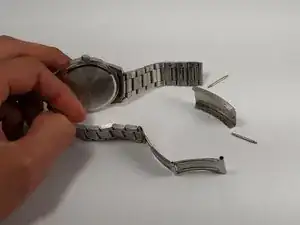

    • Remove the clasp from the lug by pushing in on the spring pin.

  4. ng24gFuBVZwwHtPj
    ng24gFuBVZwwHtPj
    gIfajqBwmyEJGVKs

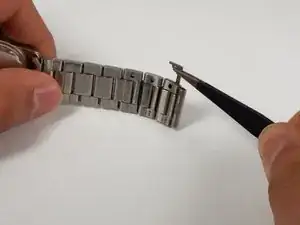

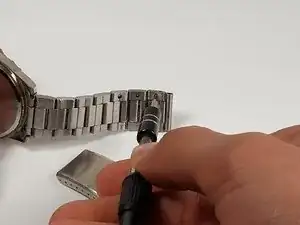

    • To remove the first link and lug, push in on the link pin to raise it up.

    • Grasp the link pin and pull it out from the link.

  5. YbfJ6kNrTUdZsIlL
    YbfJ6kNrTUdZsIlL
    ooeD4I4b6n3IxOFa

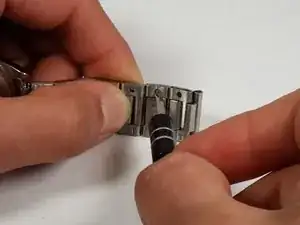

    • Push in on the second link pin.

    • Grasp the link pin and pull it up and out.

  6. UsQkV4OQmuQZOrTR

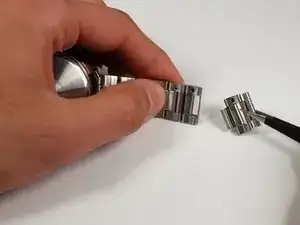

    • Pull the link apart to remove it from the band.

Conclusion

To reassemble your device, follow these instructions in reverse order.
