Introduction

  • Device name: MECHREVO Z2
  • The purpose of this guide is to replace the RAM of your laptop.
  • If your MECHREVO Z2 Laptop gets slow in use, you may need to replace or add RAM to your Laptop.
  • Please disconnect the power supply before working.
  • RAM
  1. jTWE4cZoWVly3hEK
    jTWE4cZoWVly3hEK
    Ni2thDnsegXA5UIw

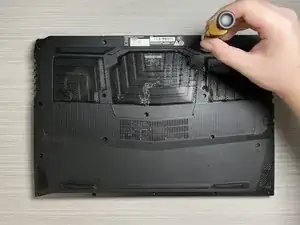

    • Using a Phillips screwdriver, remove eighteen 1.2mm Phillips #1 screws on the back.

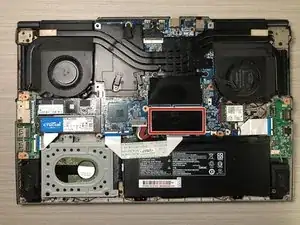

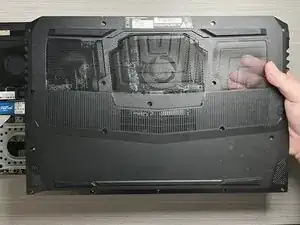

  2. wmyk5SjdiIFQY2N2
    wmyk5SjdiIFQY2N2
    ZN6RbO5nBeIKHIEy
    • Remove the back plane.

    • Locate the memory slot.

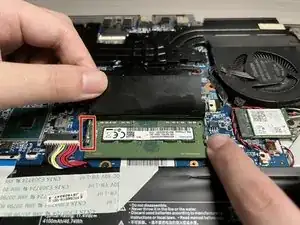

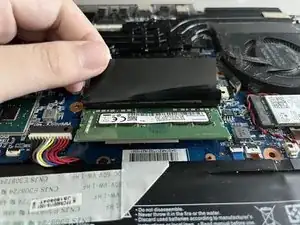

  3. wfguBT2PwpgZeYAs
    wfguBT2PwpgZeYAs
    KEsLNuS23rdSinne
    • Open the retaining latches on either side of the RAM card with your fingers or plastic tool.

    • When both anchor pins are open, the RAM pops up.

    • Remove the RAM.

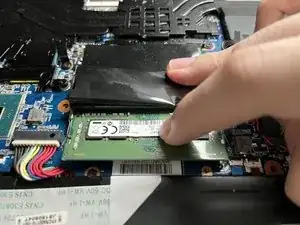

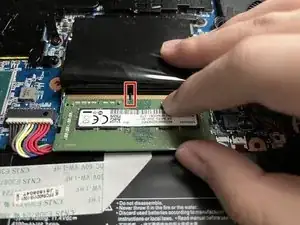

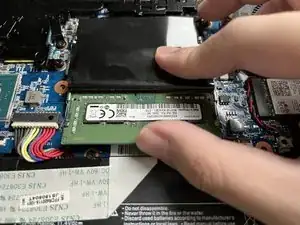

  4. GbK6QcEGSAdodAib
    GbK6QcEGSAdodAib
    lagySQxltChqOeoZ
    VTQHjEMYRyBuXImq
    • Align the notched part of the RAM with the raised part of the card slot.

    • Push inward until the notch and bulge coincide.

    • Press the other end of RAM down with your finger.

    • When you hear a clicking sound indicating that the retaining clips are reengaged, you are done installing.

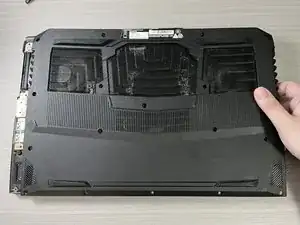

  5. F3GHWpqKYM44T115
    F3GHWpqKYM44T115
    2tQgMAC1KUaTkkGU

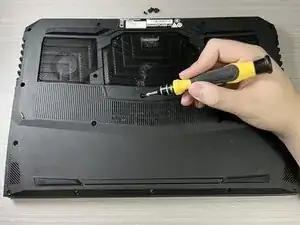

    • Assemble the back plate.

Conclusion

要放大说明您的设备,请进行这些操作。
