Introduction

If the lid spring on your Memorex CD Alarm Clock breaks, this guide will show you how to replace it.

  1. aDEMMURHs5F2if2j
    aDEMMURHs5F2if2j
    HmbFdNFQDqVP4DEG
    aAbVZ2vKevKIU6gH
    • Locate the tab on the battery compartment.

    • Pull the tab upward and remove the cover.

    • Remove the batteries.

  2. KavJLYJyjxCNm1Ri
    KavJLYJyjxCNm1Ri
    RxWVewsZIJjiQsad
    JKEsjqjDJhPQOgTX
    • Locate these 5 screws on the bottom of the device.

    • Remove the screws with the screwdriver.

    • Grasp the top and bottom and gently pull apart.

    “deolder” -- you mean “desolder”

    Sandy Lowe -

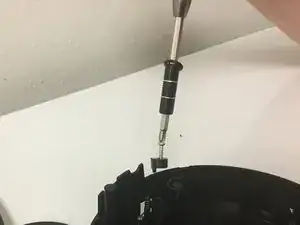

  3. JChUiwuuBWlxkd3K
    JChUiwuuBWlxkd3K
    mnLFguEXVQY2IgcB
    • Locate the spring.

    • Use a screwdriver to remove the screw and the plastic retaining piece holding the spring in place.

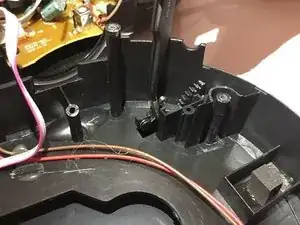

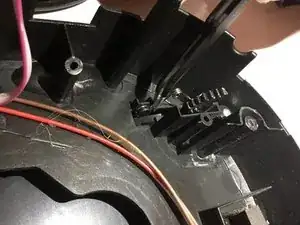

  4. Ue4oiYUX6sUPkjhd
    Ue4oiYUX6sUPkjhd
    PpVVZIYFiLEZ1kIV
    • Grasp and remove the spring using tweezers.

Conclusion

To reassemble your device, follow these instructions in reverse order with a new spring.
