Merch Source Projector Entertainment II Cooling Fan Replacement

Written By: Stephanie
  • Comments: 0
Merch Source Projector Entertainment II Cooling Fan Replacement

Difficulty

Difficult

Steps

5

Time Required

15 minutes - 1 hour

Introduction

Is your projector overheating? Is it powering down at random times? Use this guide to replace the malfunctioning fan. Replacing the fan requires a fine tip soldering iron and should be done by those with solder experience.

  1. htRVusYYZ33RvRZy
    htRVusYYZ33RvRZy
    S4Aya21WutNAgIHW

    • Flip the projector onto its back and unscrew the nine 15mm screws using the Phillips #0 screw driver.

  2. AXCDhLDCAFxZhuIK

    • Flip the projector right side up and unscrew the two 12mm screws on the light bulb panel located at the rear of the projector with a Phillips #0 screw head.

    • The bottom right panel screw does not come completely out the panel door.

  3. ERl1a2hs2MKOdQ3D
    ERl1a2hs2MKOdQ3D
    sZ2OrjGBbI1FKAtp

    • Using your hands, gently pry the top and bottom of the projector casing apart.

  4. g1RAG254Sam3HI4T
    g1RAG254Sam3HI4T
    jfAiHKOLIhFI5Yaa

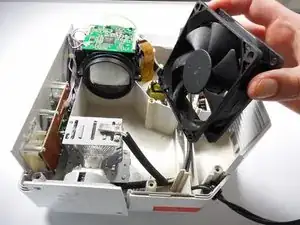

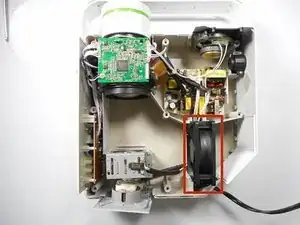

    • Locate the 80 mm fan and slide upward straight out of the housing.

  5. RQ4NENkyLXkOY61k
    RQ4NENkyLXkOY61k
    QWMmjxkrUMVIyujV

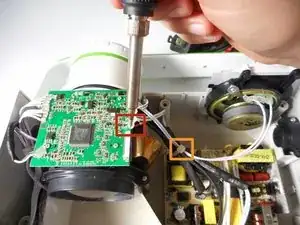

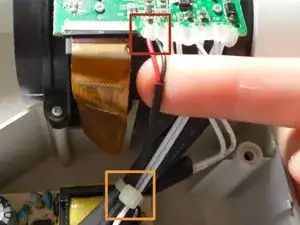

    • Unsolder the red and black connections off of the motherboard.

    • If there are zip ties around the cables, they will need to be cut to remove the fan.

    • Need some help? Follow this guide to learn soldering basics.

    • While soldering the metal connections will get very hot. Never touch the iron with your hand.

    • Make sure that the projector is fully turned off and not plugged in. Allow up to 30 minutes for projector to cool down.

    • If there is hot glue within the connection in on the motherboard, you will need to peel it off simply using your fingers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
