Motorola MBP33SBU Baby Unit Speaker Replacement

Written By: Ely Tilley
  • Comments: 0
Motorola MBP33SBU Baby Unit Speaker Replacement

Difficulty

Difficult

Steps

3

Time Required

5 minutes

Introduction

The Baby Unit Speaker allows sound between the two units. You will need a soldering kit to successfully install a new speaker.

  1. engWhF3aqDnPSFd3
    engWhF3aqDnPSFd3
    SVl4HwmVSLXpkeFG
    PwIrOlCfsjuaRa6H

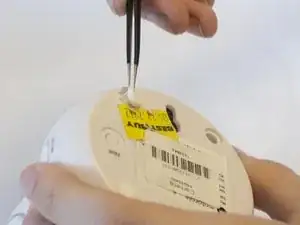

    • Using precision tweezers, remove the (4) four rubber feet from the bottom of the baby unit.

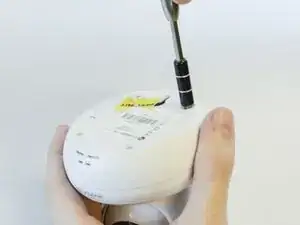

    • Using a Phillips #1 screwdriver remove the 9.5mm screws that were under the rubber feet.

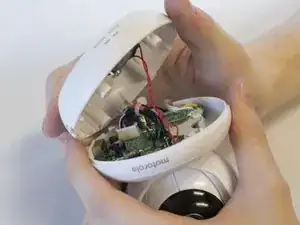

    • Open the base of the baby unit.

  2. fqAnnDQIpfYvpuKC
    fqAnnDQIpfYvpuKC
    gETWwCI6VEMXfROq
    IJDX5bGj5SXVZXJT

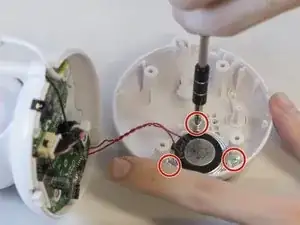

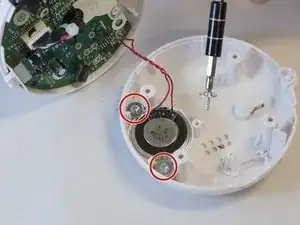

    • Using the Phillips #1 screwdriver remove the 9.5mm washer head screws holding the speaker in place.

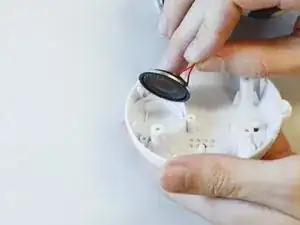

    • Gently lift the speaker by the wires from its plastic base.

  3. aMhC3N6KYiJ6jgQT
    aMhC3N6KYiJ6jgQT
    qSX4aLrPZyYo2GB1

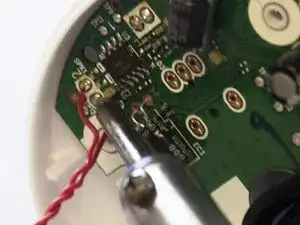

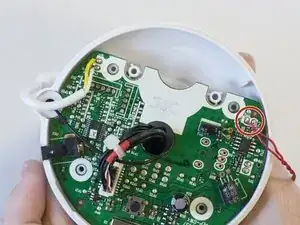

    • Desolder the wires connecting the speaker to the circuit board.

    • Beware of overheating, the soldering kit is capable of damaging the circuit board.

    • Beware of the potential for personal injury from heated metals.

    • For soldering procedures please refer to iFixit's guide to Soldering Skills.

Conclusion

To reassemble your device, follow these instructions in reverse order.
