Motorola Moto G7 Play Camera Replacement

Written By: Monserath Casillas
  • Comments: 3
Motorola Moto G7 Play Camera Replacement

Difficulty

Easy

Steps

6

Time Required

25 minutes

Introduction

This guide will show users how to replace a defective or damaged rear camera lens in the Motorola Moto G7 Play. This guide applies to both the XT1952-3 and XT1952-2 models. The rear camera lens is capable of taking 13MP photos as well as 1080p video. Users may need to replace the camera if the lens is badly damaged. A damaged lens affects photo quality in the camera.

Before you begin, download the Rescue and Smart Assistant app to backup your device and diagnose whether your problem is software or hardware related.

  1. myPnevNSNNPKgJjY
    myPnevNSNNPKgJjY
    EO5ZBNZxWHVRNAoF

    • Turn off your device before you begin.

    • Use the iFixit pick to break the adhesive around the back case.

    • Use a heat gun, hairdryer, or iOpener to weaken the adhesive around the back case. If you're using the iOpener, please review the instructions for proper use.

    How long do you have to use the heat gun before the glue loosens?

    Pamela DeMars -

    It's worked for me with about maybe 15-20 seconds of heating per side.

    Matthieu Bister -

  2. tgoBehD2raMYJuwT

    • Detach the back case from the phone.

    • Make sure the back is opened right to left so the cable of the fingerprint scanner does not get damaged.

  3. ib1tdYuELTqFPZih
    ib1tdYuELTqFPZih
    qx5B3YUkDDxMqSno

    • Use the iFixit pick and the iFixit opening tool to pull the fingerprint scanner off of the back case.

  4. dZJ3XYLNORjXPZKE

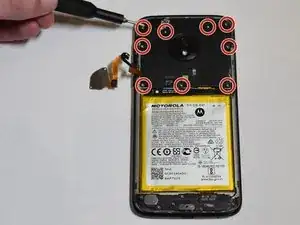

    • Remove the nine 3.2mm screws from the motherboard cover with a Phillips #00 screwdriver.

  5. AwysNDFTkQJxj1Pi

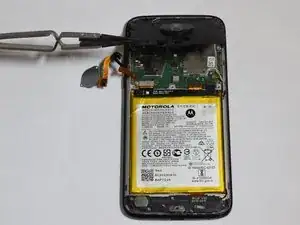

    • Lift the motherboard cover from the bottom.

    • Use reverse tweezers or a similar tool if needed.

  6. LZoNFxmuPIy2iTlx
    LZoNFxmuPIy2iTlx
    vIsbHmjTEixWcQPV

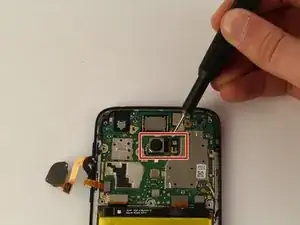

    • Once the motherboard cover is removed, use the iFixit opening tool to disconnect the ribbon cable connecting the camera to the motherboard.

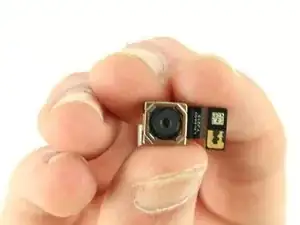

    • The camera can now be removed and is ready to be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Monserath Casillas

Member since: 10/02/20

1116 Reputation

One comment

My camera stopped working after water damage. Replacing the camera itself didn’t fix it. What could the problem be?

abb -
