Nest Dropcam Pro Micro-USB Port Replacement

Written By: David Foens
  • Comments: 8
Nest Dropcam Pro Micro-USB Port Replacement

Difficulty

Difficult

Steps

8

Time Required

5 minutes

Introduction

This guide is needed to replace the Micro-USB port if the Nest Dropcam Pro is plugged in but not receiving power. Make sure the device is unplugged before opening.

  1. Dfp2UFPw3WrMDPmR

    • Press in the mounting clips on each side of the case to remove the camera from the mount.

  2. JECD2EotCvakCJqM
    JECD2EotCvakCJqM
    bVDDDuTCpAFtPYOP

    • Using a Philips #0 screwdriver, remove the four 3 mm screws.

  3. KEaSEKUOmOrCuK4X
    KEaSEKUOmOrCuK4X
    kl2GLvtkMGEZvhxS

    • Lift the front of the case slowly, as there is an antenna cable attached to the motherboard.

    • Carefully disconnect the antenna cable from the motherboard. You will feel this cable "pop" out of place when disconnected.

  4. RajGwnwvZhBevugY
    RajGwnwvZhBevugY
    RJTYaRjb2BMsZqHr

    • Insert a spudger tool under the micro-USB port and lift to separate the motherboard from the back case.

  5. GEQHjlKLHAXrVWnA
    GEQHjlKLHAXrVWnA
    SjWbcrFWWjOsaFpl

    • Pull the motherboard away from the back case.

    • Unplug the red and black cable connecting the motherboard to the back case.

    may i know what those chips are?

    Thanks.

    julian -

  6. ngER6YxMkHXKBbfK
    ngER6YxMkHXKBbfK
    NtBWU3JCOyo6PZa3

    • Using a Philips #0 screwdriver, remove the four 2 mm screws.

  7. 6XrSahEstYR1aBu3
    6XrSahEstYR1aBu3
    l1l1tjOf5gWnFiHa

    • Lift the lens and LED assembly away from the motherboard.

    • Unplug the yellow and white cable from the motherboard.

  8. MAWJYEucFJtOcOHr
    MAWJYEucFJtOcOHr
    Ekbc1Yh4rNNC1jHJ

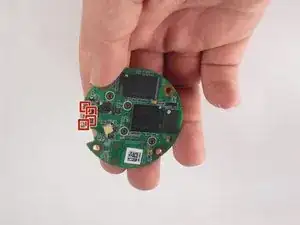

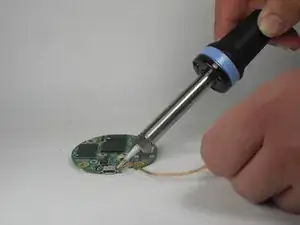

    • Using a soldering station and desoldering braid, desolder the four points surrounding the Micro-USB port.

    • Lift the Micro-USB port away from the motherboard.

    Where do you buy the Micro-usb port to replace damaged one?

    Marvin Bour -

    I have the same question. My connector is broken and I would like to salvage the camera if possible!

    Christopher Farrell -

    Hello. Any idea where I can purchase a new motherboard for my dropcam pro?

    Shannon Febus -

Conclusion

To reassemble your device, follow these instructions in reverse order.
