Introduction

The purpose of this guide is to show how to disassemble a NeXTtime “Wall Pad” wall clock in order to replace its clock movement.

A clock movement is composed of several gears and a power source. It is responsible for moving the clock’s hands. Over time, a clock movement may end up rusting or stopping due to an internal part failure. This can lead to an inaccurate telling of time or it stopping all together. When this happens, you can just replace the clock movement instead of having to buy another clock.

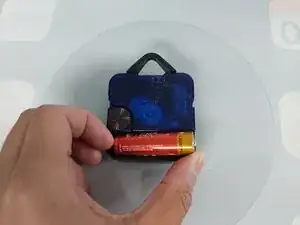

  1. irIsoDJoOVLxQcbt
    • Place the clock face down.

    • Remove the battery.

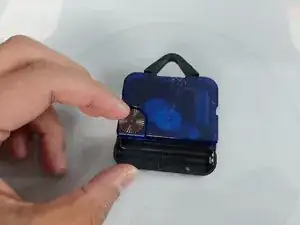

  2. fTwBJTHTZoogB2Ne
    fTwBJTHTZoogB2Ne

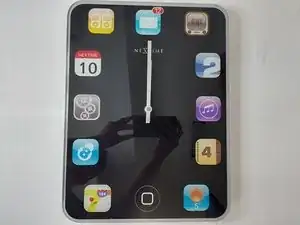

    BaCePnDkofF414hd
    • Turn the brown gear clockwise until both the minute and hour hands align.

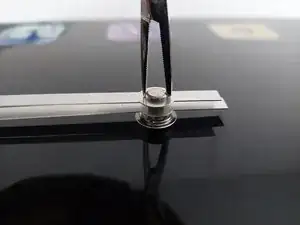

  3. ytoB2Y2LrOoah6Cr
    ytoB2Y2LrOoah6Cr
    FnEhNjp4IvIjtPbm

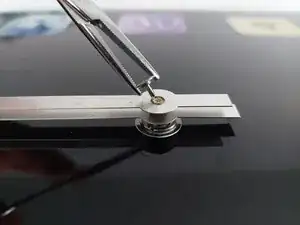

    • Use a pair of pliers to pull out the cap.

  4. RMMXTAxX4RQ6KJOA
    RMMXTAxX4RQ6KJOA

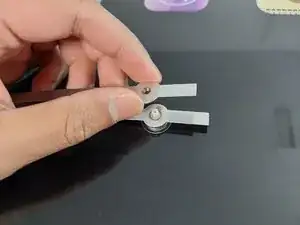

    dIfx1xULNu6VUFZN

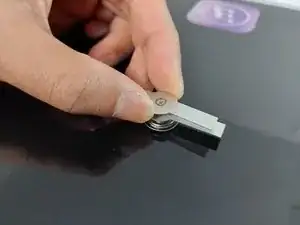

    • Pull out the minute hand using your fingers.

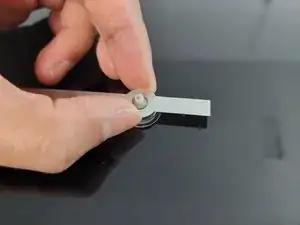

  5. PYlrA54Oyl1SYcu2
    PYlrA54Oyl1SYcu2
    NCJoXksvZjTm6P2K

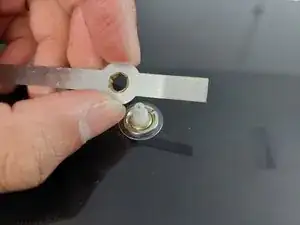

    • Pull out the hour hand using your fingers.

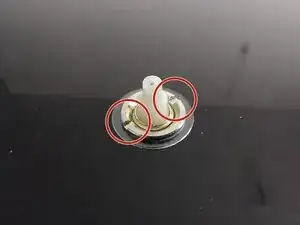

  6. MTZIjbWbGZFwdLOL
    MTZIjbWbGZFwdLOL

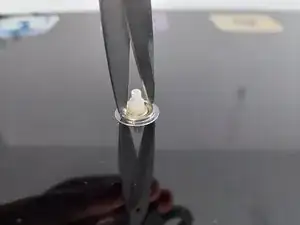

    FYNZxIKMaIQUyeVS
    WlgN4bAUfREjvufy
    • Find the two ridges on the washer.

    • Use a pair of pliers to screw the washer out with a counter clockwise motion.

    • Use your fingers to remove the washer.

  7. yAVvdUAfV1POAFM4

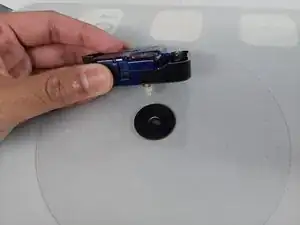

    • Take out the clock movement mechanism and replace it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
