Nextplay NP109CR Disassembly

Written By: Chotipong Chamchalaem
  • Comments: 0
Nextplay NP109CR Disassembly

Difficulty

Easy

Steps

4

Time Required

5 - 10 minutes

Introduction

The button sheet on the Nextplay NP109CR is sometimes placed incorrectly on the device. This prevents the buttons from working correctly. This guide will fix and place the buttons correctly on to the sheet. Use this guide to disassemble the device to reach the buttons. Follow the step by step instructions to re-position the buttons.

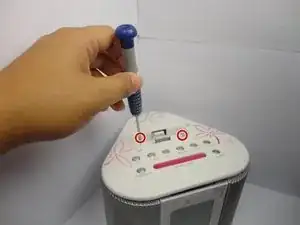

  1. tk1qGNG4haF32tpi

    • Unscrew the two screws with a Phillips #0 screwdriver on the top side of the device right in front of the eight buttons.

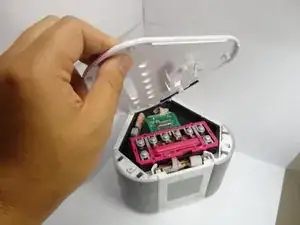

  2. hI5cuP2ESJbBIvsu

    • Remove the lid from the device.

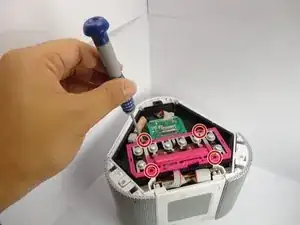

  3. SrWeFuYk3cDZT42M

    • Unscrew the four screws with a Phillips #0 Screwdriver from the pink button sheet.

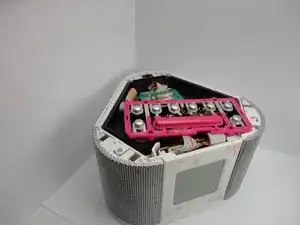

  4. tuYvZWmdqTusOjJe
    tuYvZWmdqTusOjJe

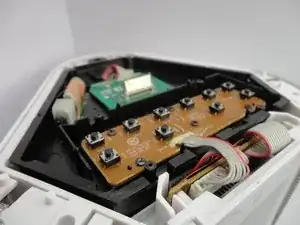

    iocqZYWOG31ArbZn

    • Remove the pink button sheet from the device by pulling out each button.

Conclusion

Reverse these steps to reassemble the device.
