Nexus 6P Rear Camra&Front Camera&Headphone Jack Replacement

Written By: Witrigs
  • Comments: 5
Nexus 6P Rear Camra&Front Camera&Headphone Jack Replacement

Difficulty

Moderate

Steps

9

Time Required

30 minutes - 2 hours

Introduction

This replacement guide shows how to disassemble Huawei Nexus 6P camera and audio jack. While your Google Nexus 6P related parts get damaged, just follow this guide to DIY replace them by yourself.

  1. wVyIIj4BQoN5DGm6
    wVyIIj4BQoN5DGm6
    3cwqlrGRlguoVl2u

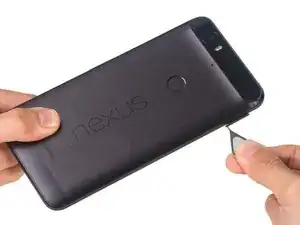

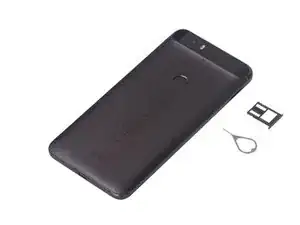

    • Remove SIM card tray.

  2. 6lJfJOIDLoOPORAd
    6lJfJOIDLoOPORAd
    LxB6LVoXfagjKyHg
    WOtwALxHrJUTjpTO

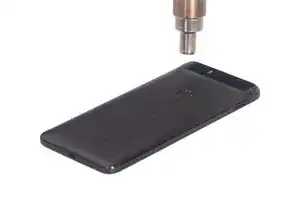

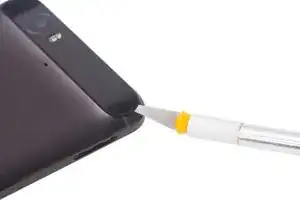

    • Heat up back glass panel.

    • Use hobby knife to open a gap and cut the fierce sticker underneath rear glass panel.

    • The back glass panel is easily shattered and the adhesive underneath is fierce. So be careful to pry this part.

    Be careful around the camera. I managed to melt my camera lens getting pieces of a shattered glass panel off.

    Roger -

  3. IWIFobyAMtGmPNV4
    IWIFobyAMtGmPNV4
    NYUfaJcTwWT6OsWF
    bUSe3xWJqE25nMOB

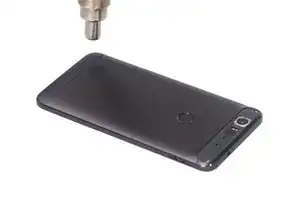

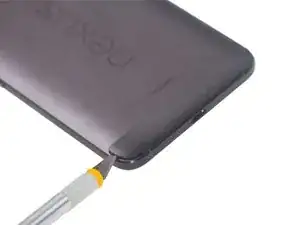

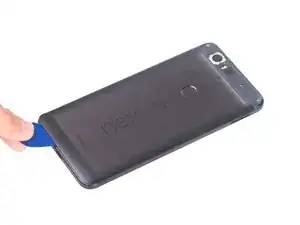

    • Heat up bottom plastic panel.

    • Use hobby knife to open a gap and insert guitar picks to cut adhesive underneath.

  4. wBqFLKEkQrf3NxAy
    wBqFLKEkQrf3NxAy
    JTFeMgeJlk5j1GXE
    OUfqXNqNS4AxYNHg

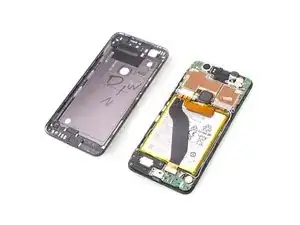

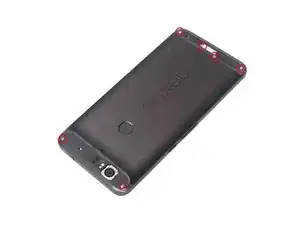

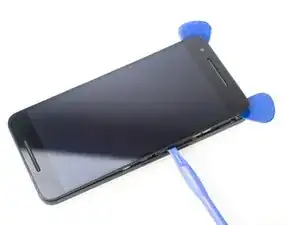

    • Twist off 6 Phillips screws together.

    • Insert guitar picks and plastic opening tool to separate front assembly from back cover.

    • Attention: These two parts fit tightly.It is very difficult to separate them. You can also try using heavy-duty suction cup to disassemble them.

    I was able to successfully use a suction cup towards the bottom of the device (near the USB-C plug) to get it open.

    Roger -

  5. T4NDcpbAYRViVsYl
    T4NDcpbAYRViVsYl
    VNV2fi4ZM4FH4Dle
    pIVulTXRZAWEX5Ry

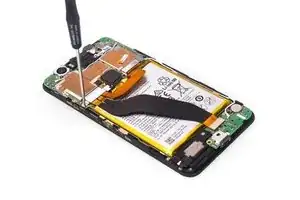

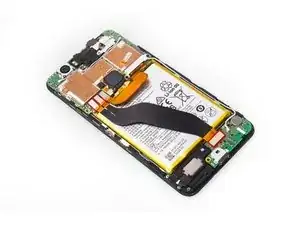

    • Unscrew one Phillips screw.

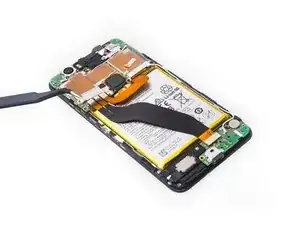

    • Remove metal bracket securing flex contactors.

    • Release 3 flex contactors and remove it .

  6. nN3IKP1PTXTF1U2H
    nN3IKP1PTXTF1U2H
    4OPwBuURRuQVLHCm
    MTUFHvUmblSoB2ht

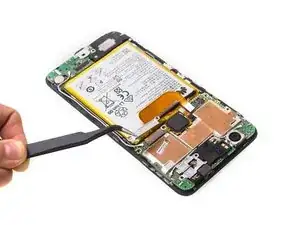

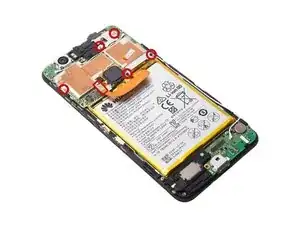

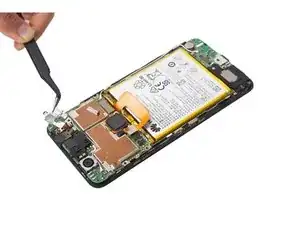

    • Twist off 5 Phillips screws together and release battery contactor.

    • Remove metal bracket securing LCD contactor.

    • Release metal bracket securing front camera contactor and headphone jack contactor.

  7. qSZ4TiaPCeOmN1YE
    qSZ4TiaPCeOmN1YE
    AaN3JJJWTYBVJQhl
    Ak5BZHvDvotHNYvy

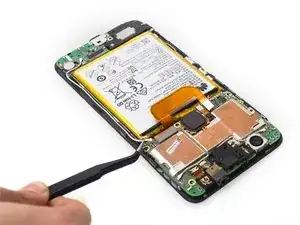

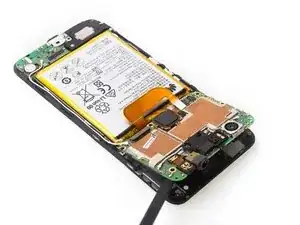

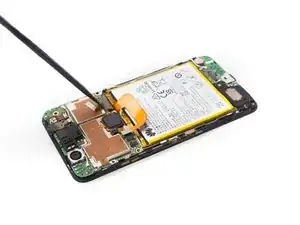

    • Disconnect signal cable contactor.

    • Release LCD contactor.

    • Pry up and remove motherboard.

  8. KIePxsCsaltKWqZD
    KIePxsCsaltKWqZD
    KYTjVMABSSCHLMUJ

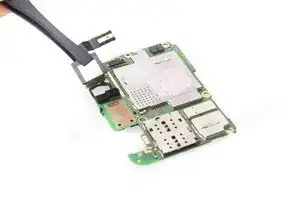

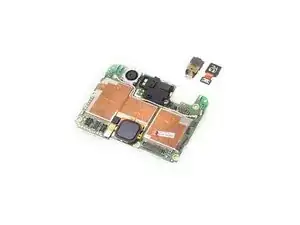

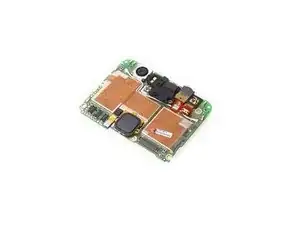

    • Remove headphone jack and front camera.

  9. 5rAlJehrdaXBBXvs
    5rAlJehrdaXBBXvs
    3IfQctbKpwUQAVaU
    qIJHLRWd4He53hoK

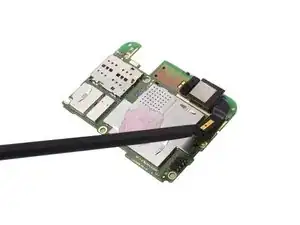

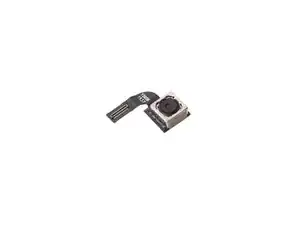

    • Release rear camera contactor, then remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Witrigs

Member since: 24/11/15

68804 Reputation

3 comments

Does the headphone jack have a part number?

I can't find the replacement part anywhere online.

Luke Redfern -

Headphone jack part number 9-HU-2909

I am searching all over the www for headphone jack. It's listed at two stores for $9.99. But, no stock.

Headphone jacks for every other silly phone are available all over the internet for couple of $.

http://www.repairsuniverse.com/huawei-ne...

isaac_kmgm -

Awesome guide! I used this guide to replace my rear camera because the old camera’s focus was stuck in one position (which is a common problem with 6p’s apparently). The guide was spot on, and it has good pictures showing you what to do. It only took me about 30-40 minutes to complete.

Jacob Higgins -
