Nintendo Switch Lite Left Joystick Replacement

Written By: Craig Lloyd

Comments: 58

Nintendo Switch Lite Left Joystick Replacement

Difficulty

Moderate

Steps

Time Required

30 minutes - 1 hour

Introduction

Follow this guide to replace the left joystick in your Nintendo Switch Lite. Replacing the joystick will fix the notorious “Joy-Con drift” issue. (Follow this guide to replace the right joystick in your Nintendo Switch Lite).

The Switch Lite uses JIS screws, but you can use a Phillips screwdriver in a pinch. Be very careful not to strip the screws. iFixit's Phillips bits are designed to be cross-compatible with JIS-style screws.

Note: This procedure requires disconnecting the battery for safety. In order to do this, the shield plate must be removed. The shield plate is bonded to the heat sink with thermal paste, which will need to be cleaned off and reapplied before reinstalling the shield plate.

Tools

Parts

Nintendo Switch Joy-Con/Switch Lite Joystick

Step 1

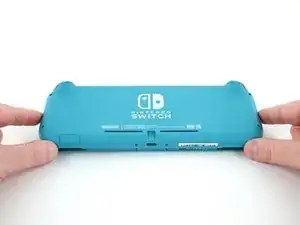

Before beginning this repair, make sure that the device is completely turned off.

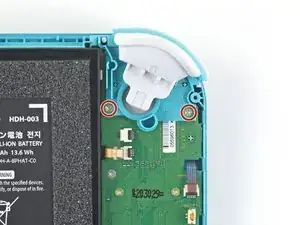

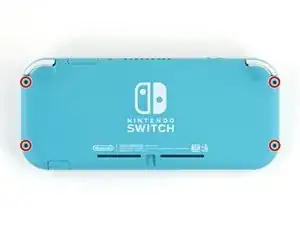

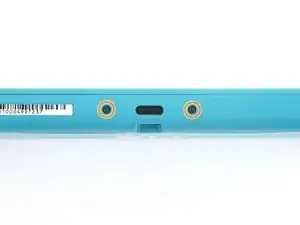

Use a Y00 screwdriver to remove the four 6.3 mm-long screws securing the back panel.
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

All my screws got stripped any ideas on how to remove?

Almost A Mammal -

A Y0 screwdriver seemed to work better for me.

Tommy Morrill -

What type of screw driver do I use to un screw the screws and which way

Luca Capito -

Y 0.6 was all I had but it seemed to fit perfectly

Trevor -

Step 2

Use a JIS 000 driver or an official iFixit PH 000 driver to remove the following screws securing the back panel:
Two 3.6 mm-long screws on the top of the device

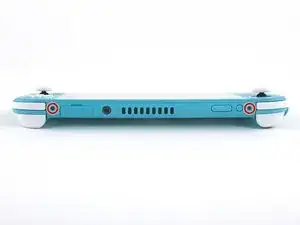

Two 3.6 mm-long screws on the bottom of the device
To prevent these tight screws from stripping, apply firm downward force, work slowly and try a different screwdriver if the screws won't come out.

Step 3

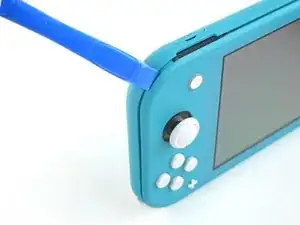

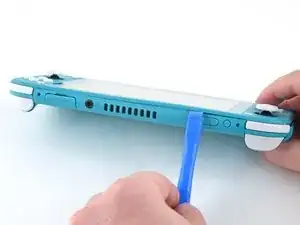

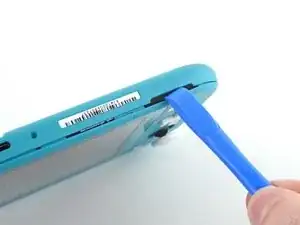

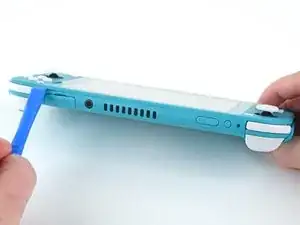

Insert an opening tool into the left speaker grille on the bottom of the device.
Twist the opening tool to release the clips securing the back panel.
Avoid inserting the opening tool further than required to prevent damage to the speaker module.

Step 4

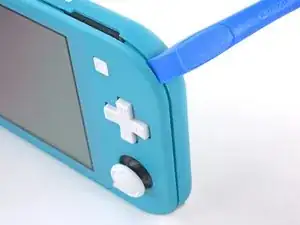

Slide the opening tool around the bottom-left corner to release the clips on the left side of the device.

Step 5

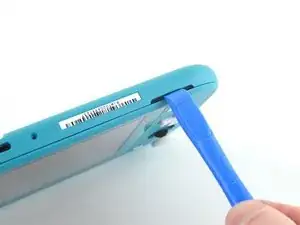

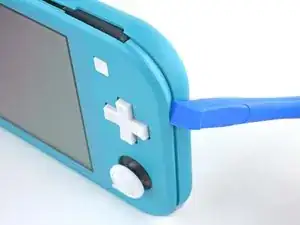

Insert an opening tool into the right speaker grille on the bottom of the device.
Twist the opening tool to release the clips.
Avoid inserting the opening tool further than required to prevent damage to the speaker module.

Step 6

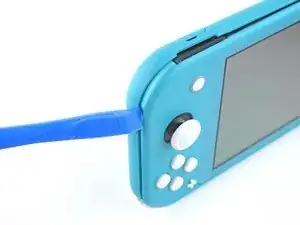

Slide and pry the opening tool around the bottom-right corner to release the clips on the right side of the device.

Step 7

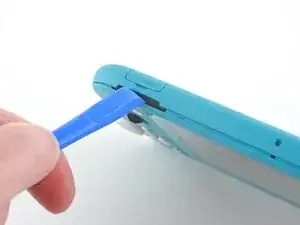

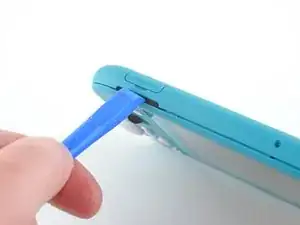

Continue sliding and prying the opening tool along the gap on the top of the device to release the clips.

Step 8

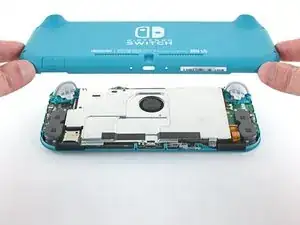

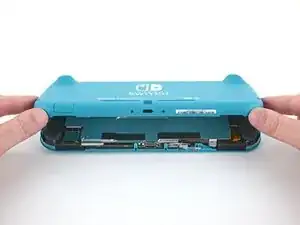

Lift the bottom edge of the back panel, opening it like a book.
Remove the back panel.

Step 9

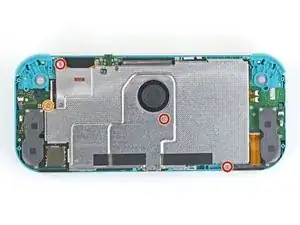

Use a JIS 000 driver or an official iFixit PH 000 driver to remove the following four screws:
Three 3.1 mm screws
One 4.5 mm screw

There are four screws instead of three mentioned

Khurram Chaudry -

it doesnt mention 3 anywhere, and it labels all four

Ezi -

With how easy it seems to be to do serious damage with the next few steps, I figured I'd say that realistically you can skip steps 9-13 when doing this repair. While they provide a bit of extra security by disconnecting the battery, the left stick is completely accessible and replaceable without touching the heat shield or anything underneath (And steps 17 and 18 disconnect power from the daughter board regardless).

Nate -

Step 10

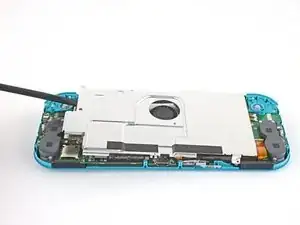

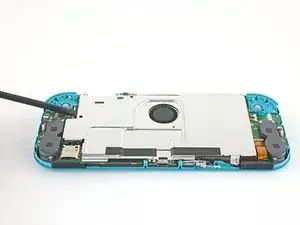

Use a spudger or your fingers to lift the shield plate up and out of the device.
You may feel a bit of resistance. This is normal, since the shield plate is slightly bonded to the heat sink with thermal paste.
Remove the shield plate.
Clean off the old thermal paste from the shield plate and heat sink using isopropyl alcohol and a microfiber cloth. Apply new thermal paste to the heat sink before reassembly.

You may need to replace the thermal paste on the heat sink.

ahoz28 -

Step 11

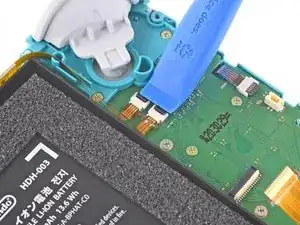

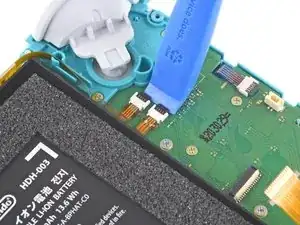

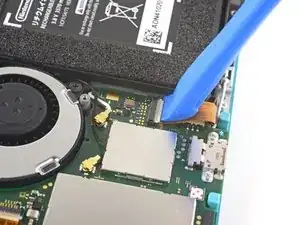

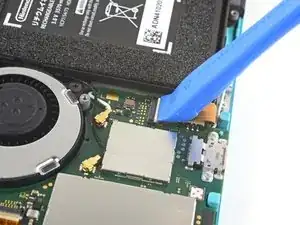

Use an opening tool or your fingernail to flip up the small, hinged locking flap on the motherboard interconnect cable's ZIF connector.

The clip broke off when trying to remove this cable. Audio only works through headphones and the display now won’t turn on after the clip broke. Does anyone know where I could get a clip or how I could fix it without it?

Alexz Zepeda -

Step 12

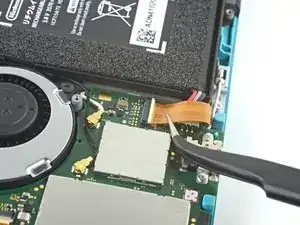

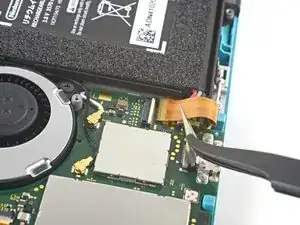

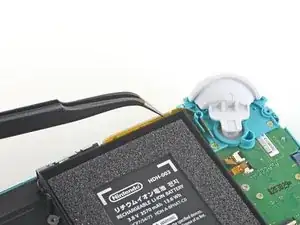

Use a pair of tweezers to slide the interconnect cable out of its connector on the motherboard.

I turned the unit off beforehand, I used tweezers just like the instructions said (ifixit branded) , my device sparked and now it won’t turn back on

User Service -

The flap came off is it important or is there a way t fix it?

Jose Cruz R Rangel Cordero -

We're you able to get it working without the white flap? My screen is not working after putting it back together and i noticed this white flap was falling off

Jimmy “Ghost” Trost -

Did you get it working without the white flap? Everything on the switch works fine except for audio going through headphones and the display not turning on.

Alexz Zepeda -

Step 13

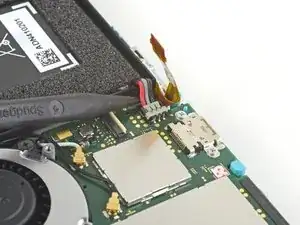

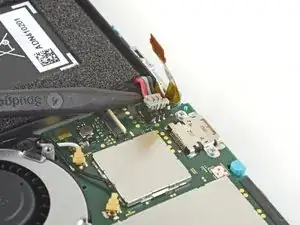

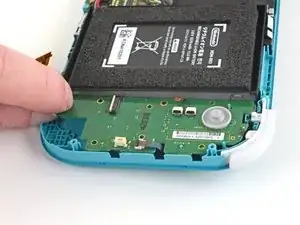

Use the point of a spudger to pry the battery connector straight up and out of its socket on the motherboard.

Caution the connector may not be properly soldered onto the motherboard. For me it snapped off the pins and now have to find a place to get that fixed if even possible. may have bricked it.

Craig Osman - 30/01/21

Yup, broke the connector right off the motherboard. Thanks, ifixit -_-

Justin Kerr - 14/04/21

I backed out when I reached this point. I couldn't risk damaging it. Do u just need to pull it up? Did you mean that it might have been soldered shut below?

Jannalyzer -

You should just need to pull straight up, but make sure you’re pulling on the wires or the gray plug—do not pull on the black socket or it can snap off of the motherboard.

Adam O'Camb -

I pulled straight up from the south side on under 2 or three wires and held down the device as I pulled and the gray connector disconnected from the black connector on the Switch. Just be careful at this part.

Jon -

With how easy it seems to be to do serious damage at this point, I figured I'd say that realistically you can skip steps 9-13 when doing this repair. While they provide a bit of extra security by disconnecting the battery, the left stick is completely accessible and replaceable without touching the heat shield or anything underneath (And steps 17 and 18 disconnect power from the daughter board regardless).

Nate -

Step 14

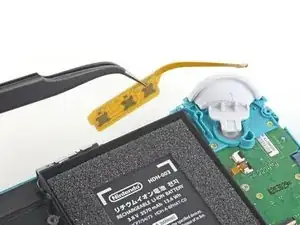

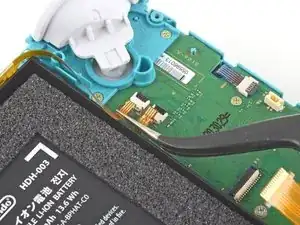

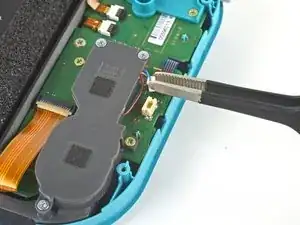

Use a pair of tweezers or your fingers to pull the left speaker cable straight up and out of its socket on the daughterboard.
Do not pull from the wires, or else you risk ripping the wires off the connector.

pulled from the connector, not the wires, and ended up ripping them off the connector anyways since it encountered tension from the other end (the gray chamber on the left)

consider doing step 15 before pulling the wire, just in case.

Phillipe Legenda - 01/02/21

Why even disconnect this cable. Not worth the risk leave it connected to daughter board.

Michael McNally -

while doing this I ripped the pad on the circuit board off. Should i risk trying to repair it or should i just try to go without the speaker???

sarah.carney203 -

I also accidentally ripped off the connector, disabling the left speaker. However, that will not break any functionality of the switch. The right speaker works just fine on its own (just remember to turn the audio to mono in system settings) and I was successfully able to replace the joystick. Although the audio quality is a little bit depleted, you barely notice it if you turn up the volume a little, and I think being able to actually MOVE FORWARD in my games is a better plus than having louder, stereo, audio.

Jonathan Maye -

Went to pull the speaker connector and it pulled right off the motherboard. Would not come loose.

putnamjerome4 -

I'm gonna echo what others said here and suggest that you skip this step. After you complete Step 15, you can just move the speakers enough with your fingers to complete Step 26, which involves a screw half underneath it.

Regarding the ribbon cable in Step 17 & Step 18, you can honestly use your fingers if they're small enough. The ribbon cable is wide enough for you to press down on it a little and slide it out bit by bit.

Overall, this makes the disassembly and eventual reassembly process easier and lets you avoid running the risk of damaging or completely tearing out the wires, like I almost did.

ThatDerpGuy -

Step 15

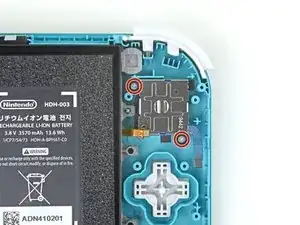

Use a JIS 000 driver or an official iFixit PH 000 driver to remove the 4.5 mm screw securing the left speaker module.

Step 16

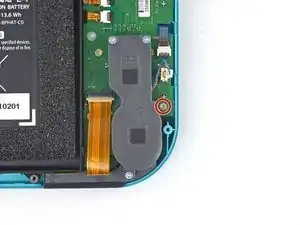

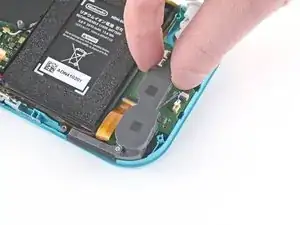

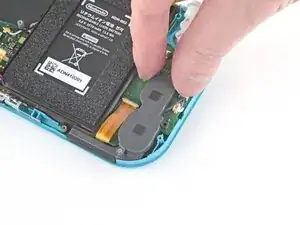

Use your fingers to lift the speaker module up and out of its recess to remove it.
Part of the speaker module sits underneath a delicate ribbon cable. Take care not to snag the speaker module on the cable as you remove it.

Pulling the lower screw on the speaker assembly gave me a little more wiggle room to get it out without damaging the flat cable.

Spacer - 18/02/21

Step 17

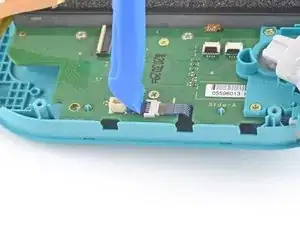

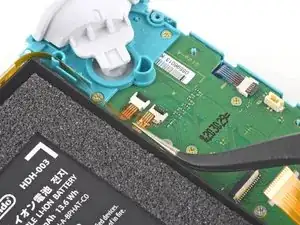

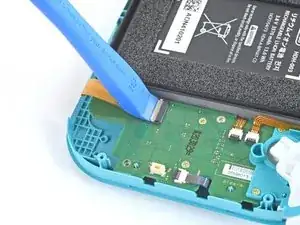

Use an opening tool or your fingernail to flip up the small, hinged locking flap on the motherboard interconnect cable's ZIF connector.

Step 18

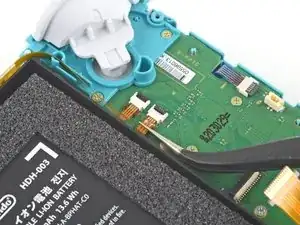

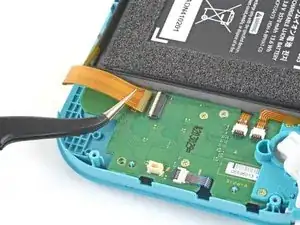

Use a pair of tweezers to slide the motherboard interconnect cable out of its connector on the daughterboard.

Step 19

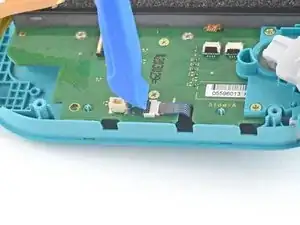

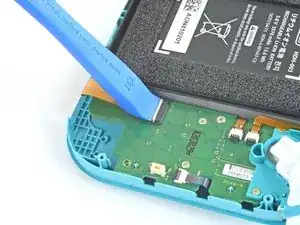

Use an opening tool or your fingernail to flip up the small, hinged locking flaps on the two ribbon cable ZIF connectors.

Step 20

Use a pair of tweezers to slide the daughterboard screen cable out of its connector on the motherboard.
Repeat this procedure for the volume buttons cable.

Step 21

Use a pair of tweezers or your fingers to remove the volume buttons.

Step 22

Use an opening tool or your fingernail to flip up the small, hinged locking flap on the left joystick cable's ZIF connector.

Step 23

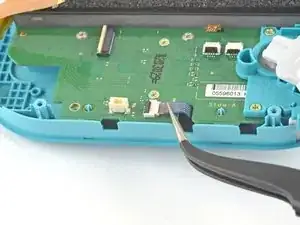

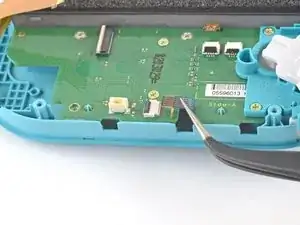

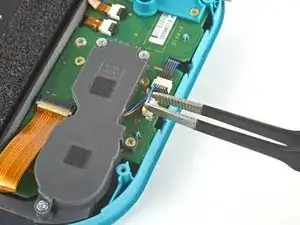

Use a pair of tweezers to slide the left joystick cable out of its connector on the daughterboard.

The connector for my left joystick broke. Is there a way to fix it?

Christopher Shackelford - 11/05/21

How badly did it broke?

Daniele Carminati - 11/05/21

Step 24

Use a JIS 000 driver or an official iFixit PH 000 driver to remove the two 4.5 mm screws securing the left trigger button assembly.

Step 25

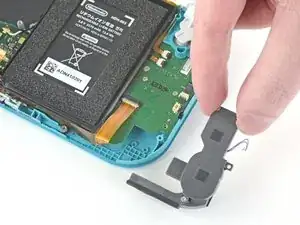

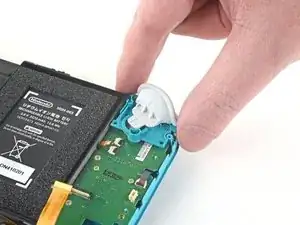

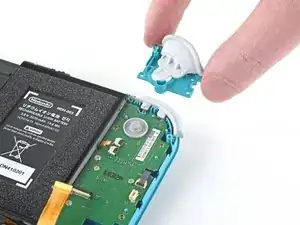

Remove the left trigger button assembly.

Step 26

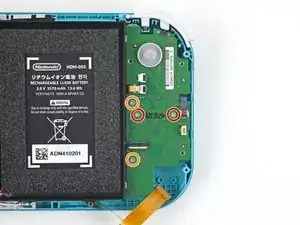

Use a JIS 000 driver or an official iFixit PH 000 driver to remove the following four screws:
Two 4.5 mm screws
Two 6 mm screws

The two 4.5 mm screws were very difficult to remove here and ended up getting stripped. I CANNOT remove them, help!

Sara Rouse- Barker -

Step 27

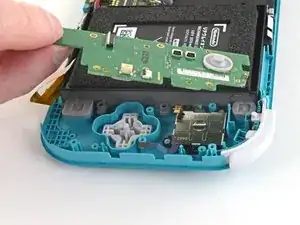

Use your fingers to lift the daughterboard up and out of its recess to remove it.

Stop here if repairing Switch Lite for joycon drift. After removing daughter card you can see the bottom of the joystick. This thin metal actually bends during use causing bad connection of joystick. If you cut out a business card the same size as the joycon and put it on the bottom of the joystick it gives the metal enough backing to fix the issue. I used two layers with just a small bit of glue stick to adhere it. Put it all back together and you will find your issue is fixed.

Michael McNally -

Step 28

Use a JIS 000 driver or an official iFixit PH 000 driver to remove the two 3.5 mm screws securing the left joystick.

Step 29

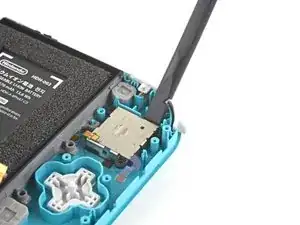

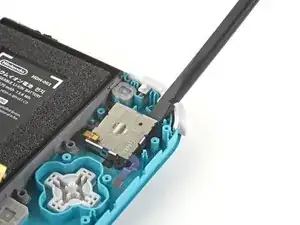

Use the flat end of a spudger to lift the joystick up and out of its recess.

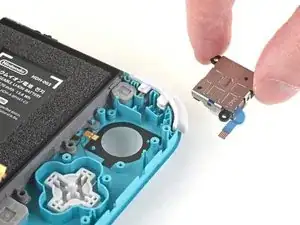

Use your fingers to remove the joystick.
There is a thin black gasket around the hole where the joystick pokes through the frame. Try not to disturb this gasket as you remove the joystick.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Nintendo Switch Lite Answers community for help.
