Nokia Lumia 2520 Cameras Replacement

Written By: Degan Berhe
  • Comments: 0
Nokia Lumia 2520 Cameras Replacement

Difficulty

Difficult

Steps

12

Time Required

50 minutes - 3 hours

Introduction

  1. HavYiGEyoaTLesWL

    • Apply heat pad to each side of the device.

    • When using any heat pad please use some form of padded gloves so you don't burn you fingers.

    • Microwave the pad for 30 seconds so an ample amount of heat is given on all four sides. Do not microwave more than once every two minutes.

  2. b2NWWuXP3gNkoUyW
    b2NWWuXP3gNkoUyW
    kH4kuv62A4hYkSSZ
    Pp2SrPJXvDRZMDHd

    • Insert the pick between the glass to separate the glass from the device. You can also use the suction cups to help lift the glass.

    • When pulling the screen off the chassis, be careful not to cut the ribbon cable that connects the screen to the logic board.

    • Take your time to pry open the screen from the chassis as you can easily break the screen or crack it.

  3. VfYyyHUFQxrwDFZx
    VfYyyHUFQxrwDFZx
    2IEI4eMvJrZmVDsn

    • Pull the ribbon cable out from the connection port on the board.

    • Move on the step 4 to remove the ribbon connection from the screen.

  4. sudlynq4YyNanhnd
    sudlynq4YyNanhnd
    1bhgCOxWHb2Z5FoJ
    cbs3wZIwAOVjDGi4

    • Use the plastic pry tool to remove both of the connections.

  5. ZhaNGaBoIPr3DSvZ

    • Set aside the screen and the display assembly for repair.

  6. lNIHNPAkvbBSMh4C
    lNIHNPAkvbBSMh4C
    3PXcoCFmysIEwyCB
    ZfuVqfWqrBWGv3VS

    • Before removing the battery from the device be sure not to puncture the battery. Since the battery is a form of acid.

    • Using a plastic pry tool is better than a metal tool when working with wire and soft case battery case.

    • Use a plastic pry tool to remove the battery connector from the logic board.

  7. LdCV6ZqLK2INFCNw
    LdCV6ZqLK2INFCNw
    EiFRROarb4uUyAp2

    • Remove the ribbon located over the battery.

  8. EmOJDfNFHqTQNPaY

    • Theres four screws that attach the battery to the chassis. Use a PH0 Phillips head screwdriver to loosen the screw.

    • Since the tool using is sharp please use with caution, so that you don't puncture the battery.

  9. dPn2yTJMvBIAo4Nl
    dPn2yTJMvBIAo4Nl
    XyZTOoMSfGHCc4WS
    QriCvkdlB6U516IW

    • Take a plastic pry to to pry out the battery from its casing.

    • The bottom of the battery has adhesive to hold the battery in place. So using enough pressure to pry the battery is ok .

    • Using two tool different plastic pry to can help give you leverage on areas that are hard to get up.

  10. buHjOkf6TPvylmMr
    buHjOkf6TPvylmMr
    Cm6nQTiswlSooXKQ
    5r6uLsVAdRkPLU2U

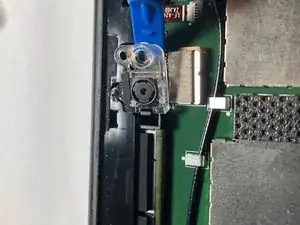

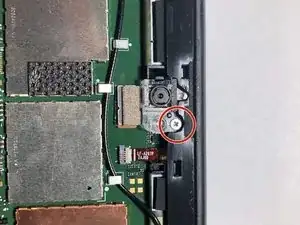

    • Take a PH0 Phillps head screw bit to take the screw out.

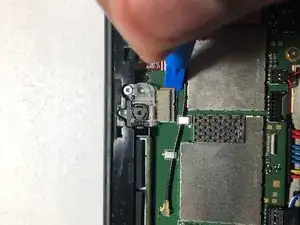

    • Take a pry tool and disconnect the ribbon cabe from the logic board

    • Then use a plastic pry tool and take out the front facing camera out of its housing.

    • The front facing camera is clued on so use some force to pry it off.

  11. JOCULr3HXQiWSSET
    JOCULr3HXQiWSSET
    PYTFmsKVPaV2cZAX
    tf6NDMG1GHXc3LBY

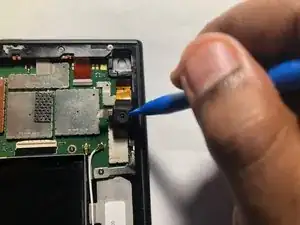

    • Locate the rear facing camera. which is located on the top right side of the case.

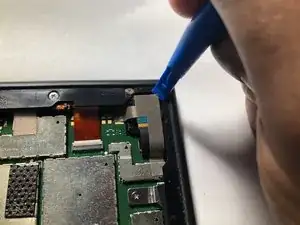

    • Take a plastic pry tool to pill the tape and camera from its housing.

  12. rVVxJCh2iNsa3vFg
    rVVxJCh2iNsa3vFg
    cukVGMTVLobbIGvP
    rNYIi2LFgYLiXeqk

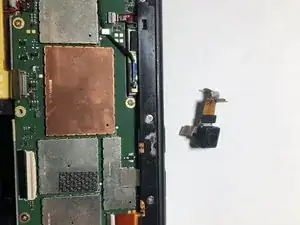

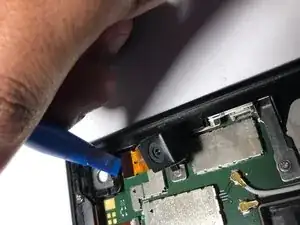

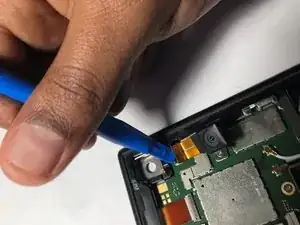

    • Take the pry tool and remove the ribbon cable from the logic board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
