Introduction

Use this guide to replace a malfunctioning motherboard in the Olympus C-765.

The motherboard is a large, printed circuit board that controls all of the camera’s functions. A malfunctioning motherboard may be responsible for overall defunct camera operations. When a motherboard is bad, a camera may display a variety of errors, may function slowly, or may fail to start up at all. If the board is malfunctioning, it must be replaced in order to restore the camera to working order.

Be sure to consult the Troubleshooting guide before attempting to replace the motherboard. A slow camera may simply be solved by a system reset. A replacement only needs to be attempted if the reset does not work.

This guide will demonstrate how to complete this replacement process. The process involves multiple steps, including difficult steps like soldering.

  1. k4l4mE2ZxMEMZIgh
    k4l4mE2ZxMEMZIgh
    V1Xmy4AWaKjUbSPU
    Z4BthIsbRYVWXfOE

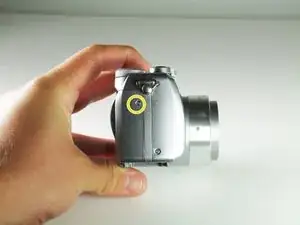

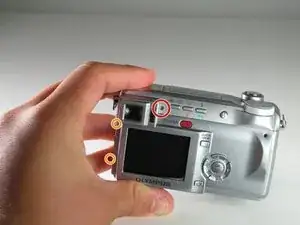

    • Use a Phillips #00 screwdriver to remove the single 4mm screw located directly to the right of the viewfinder on the back of the camera.

    • Remove the two 2mm screws from the left side panel.

    • Remove the single 3mm screw from the right side panel.

    • Remove the five 3mm screws from the bottom of the camera.

  2. QK6f45QhyENW4aok
    QK6f45QhyENW4aok
    oA4RuskRgkVOrHUa

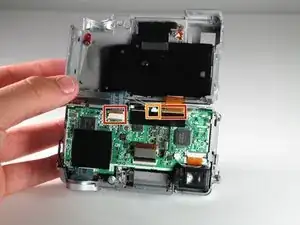

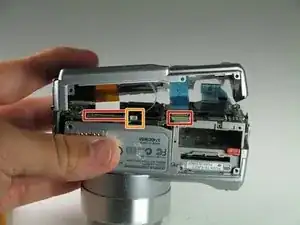

    • Rock the two ribbon cables gently out of their sockets.

    • For more on disconnecting ribbon cables, look here.

    • Grasp and pull the white cable out of its clip with metal tweezers.

    • Remove the back panel completely.

  3. JVmHeOngCQTX26mH

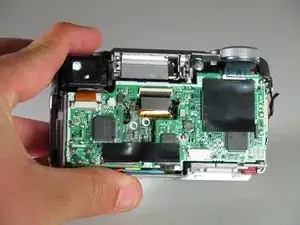

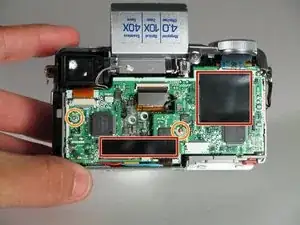

    • Peel off the black plastic sheets.

    • Use the Phillips #00 screwdriver to remove the two 3mm screws holding the motherboard in place.

  4. UpfJlxIr4YdZeBoM
    UpfJlxIr4YdZeBoM
    mEcMhCYT4MvhCdx1

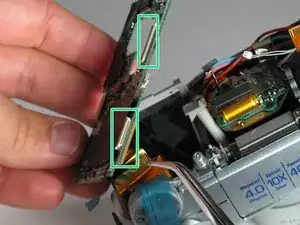

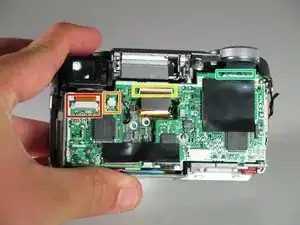

    • Remove the ribbon cable directly below the viewfinder.

    • Detach the white plastic clip from its socket with a pair of tweezers.

    • Disconnect the ribbon cable from the center of the board, near the central hole.

    • Disconnect the three ribbon cables from the top right of the motherboard, near the selector wheel. One is on the top of the board, and the other two are on the underside.

    • For more information on disconnecting ribbon cables, look here.

  5. iqMXEvRyImOtrnUH

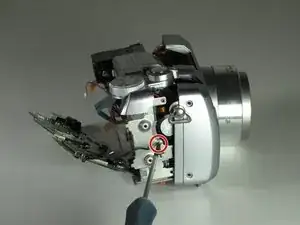

    • Remove the single 3mm ground screw attached to the right side of the camera body using the Phillips #00 screwdriver.

  6. ELfGP1bv6tiAyjTG

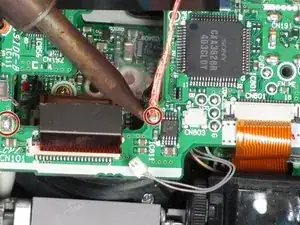

    • Use the soldering iron to desolder the connections from the motherboard.

    • For more information on desoldering, look here.

    • When soldering, avoid touching any of the other components with the soldering iron to prevent damage to the motherboard.

  7. b12D3OC4ZOUdD1tE

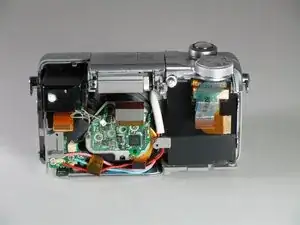

    • Remove the motherboard from the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
