Introduction

If the buttons in the back case of your camcorder are broken, you can replace them by following these steps.

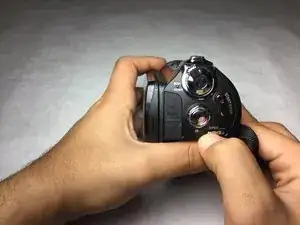

  1. 1ZRXymjigjOPZMvc
    1ZRXymjigjOPZMvc
    OWiXZOELMxA6uVGe

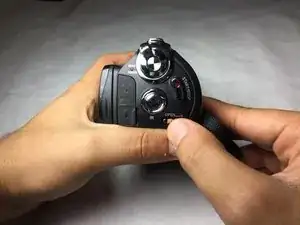

    • Pull the slider labeled open, on the bottom right, to unlock the battery.

  2. sG2GSDBuOCmeNYav

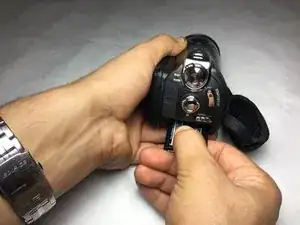

    • Pull battery out of slot.

  3. vaFHLtnJAyT2GfXL
    • Unfold the screen from the side of the camera.

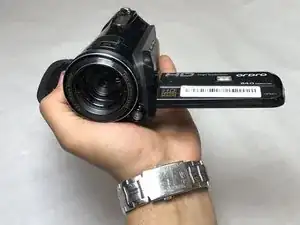

  4. WuZ2KU3iqP6SoQfr
    • Twist the screen so that the screen is facing downward.

  5. G3jItLV1ibEbhVjR
    G3jItLV1ibEbhVjR
    dUTJvO5pEvCLvkOK

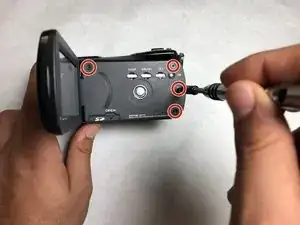

    • Unscrew the four screws on the side (length 2.9 mm) with a JIS #000 screwdriver.

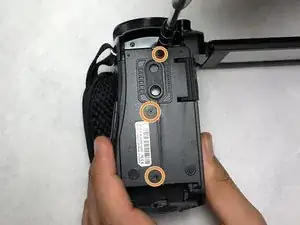

    • Unscrew the three screws on the bottom (length 7.7 mm) with a JIS #000 screwdriver.

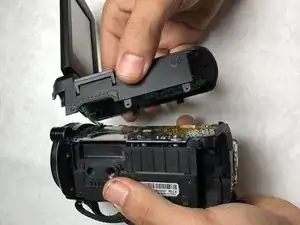

  6. uXyAxYZijqRaeMZP
    • Pull apart the camera into two pieces by pulling the side with the screen away from the main body of the camera.

  7. oB3SWSiRRML5yyN3
    oB3SWSiRRML5yyN3
    cNOGeqhZ2TfbZAMU

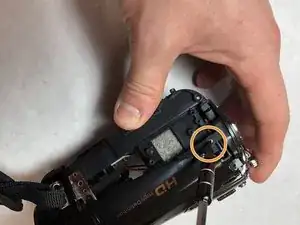

    • Unscrew the two screws (size 4.75 mm) with a PH #00 screwdriver.

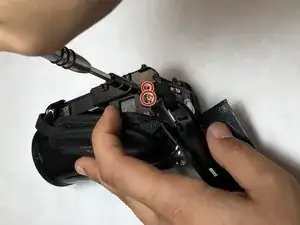

    • Unscrew the screw (size 7.65 mm) with a PH #00 screwdriver.

  8. DV5MrKbHtQXAEU6Q

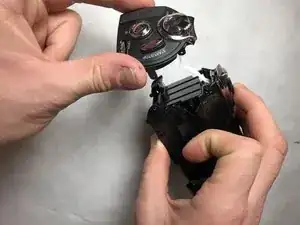

    • Take the back case off by pulling it away from the main body.

    • Be careful not to tear the white strap that connects the back case to the main body.

  9. rdYVUweSFYRA6PRo

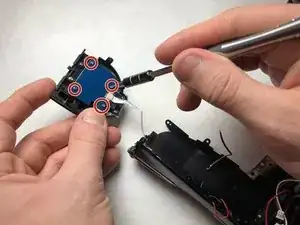

    • Unscrew all four screws (length 4.13 mm) on the inside of the case with a PH #00 screwdriver.

  10. wTOS5WjmBialASbg

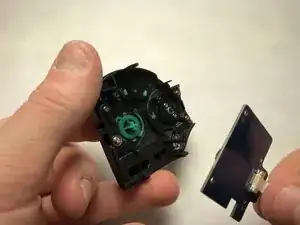

    • Pull the board away from the back case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
