Introduction

This guide would be useful in the event of a broken, scratched, or cracked lens.

  1. plMfKpF1ciofgdwI
    plMfKpF1ciofgdwI
    ujVvkFIIl1sjy2NN

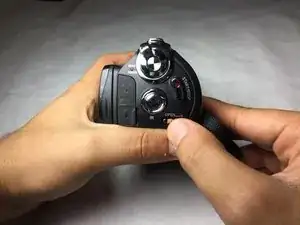

    • Pull the slider labeled open, on the bottom right, to unlock the battery.

  2. mrwouKPMMh6MjrCN

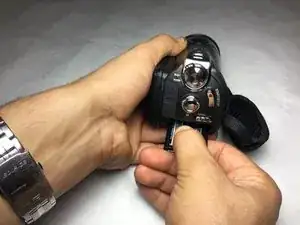

    • Pull battery out of slot.

  3. 4JdQrH4xnlAXbhFs
    • Remove the three screws (length 7.7 mm) from the bottom of the outer case using a JIS000 screwdriver.

  4. MQJloRZXSAveV4sr
    MQJloRZXSAveV4sr
    BbZRHbORDrUYlhng

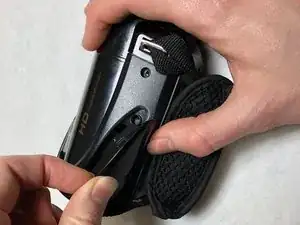

    • Remove plastic casing hiding screws from the strap side of the casing.

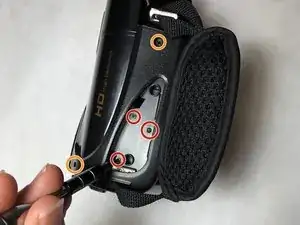

    • Unscrew the three screws (length 4.75 mm) using a PH000 screwdriver.

    • Unscrew the two screws (length 6.4 mm) using a JIS000 screwdriver.

  5. 3BOmDhnS2omnqM5u

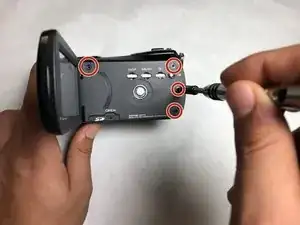

    • Unscrew the four screws (2.9 mm length) from the screen side of the casing using a JIS000 screwdriver.

  6. 2DqenEiwVQKSFunY

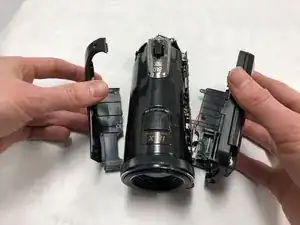

    • Remove both side casings by gripping the sides with your hands and pulling gently.

  7. ZpJlLKmxesg556nU
    ZpJlLKmxesg556nU
    tnssNVHJOUd2KYWB
    2BcOi1SIEqdAX36v
    • Although it requires extra steps, it is advised that you remove the motherboard and screen to ensure that nothing is damaged in the process of replacing the lens.

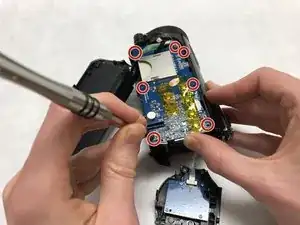

    • Unscrew the seven screws (length 4.22 mm) from the motherboard using a PH000 screwdriver.

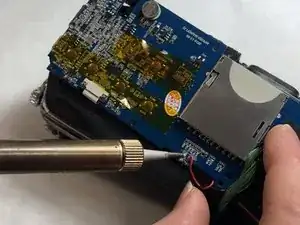

    • Pull out or desolder all connected cords from motherboard.

  8. xBPV4vm6OCVyLImw
    xBPV4vm6OCVyLImw
    hUxEPVWgrfQJjDh2

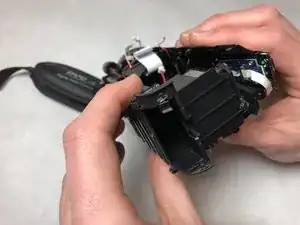

    • Remove top of the casing to reveal the screws on lens.

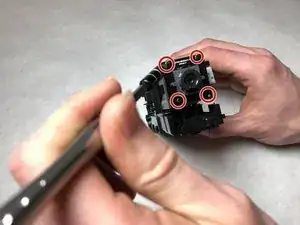

    • Unscrew the four screws (size 4.90 mm) using a PH00 screwdriver.

  9. IFtDdyu4SPNECktB
    IFtDdyu4SPNECktB
    PbVaXTuFFFIRh6aY
    lAdIpsdffPmYLag3

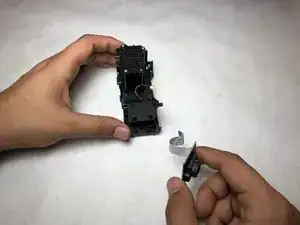

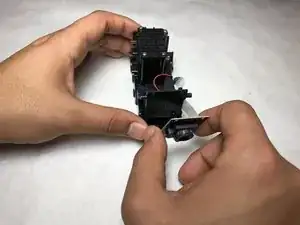

    • Pull out lens.

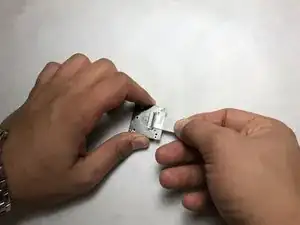

    • Remove cord from lens.

Conclusion

To reassemble your device, follow these instructions in reverse order.
