Introduction
Replacing the Focus Knob and adding a small amount of WD-40 are a few easy solutions for a Focus Knob that is jammed in place or ineffective.
Parts
-
-
Hold Clock so the screen is facing away from you.
-
Using your thumbs, push up on battery cover to remove.
-

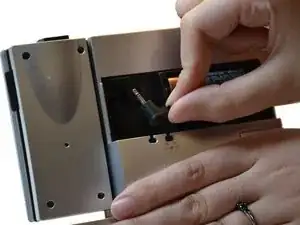

With your other hand, pull down on the A/C Adapter jack to remove.
-
-
-

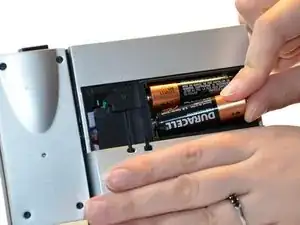

Remove batteries by pushing a battery toward the spring.
-
Lift battery out at an angle. Repeat with second battery.
-
-
-

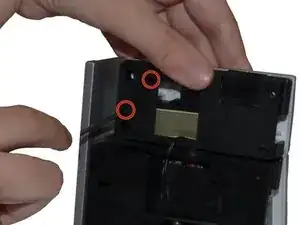

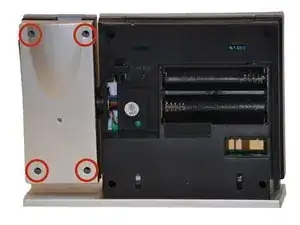

Use a Phillips #00 Screwdriver to remove the four (4) screws from the back of the projection arm.
-

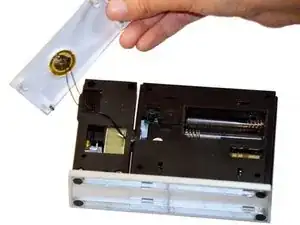

Once screws are removed, lift the back up and off of the projection arm.
-
-
-

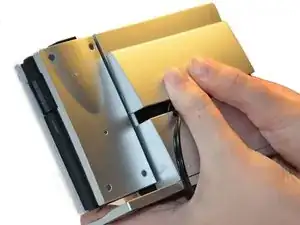

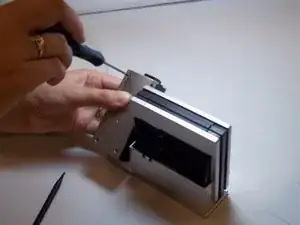

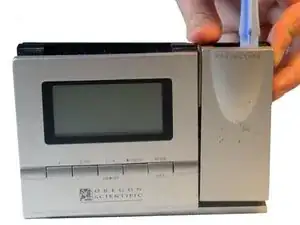

Use a plastic opening tool to pry apart the front of the projection arm casing. Start at the top of the projection arm.
-

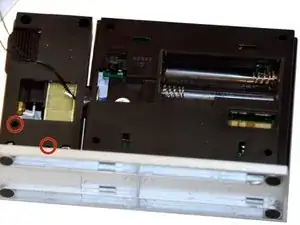

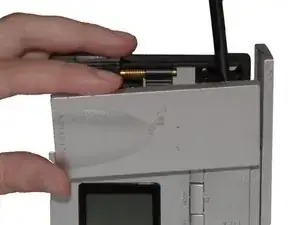

Once top is partially open, use a spudger to pry at the side of the projection arm.
-
-
-

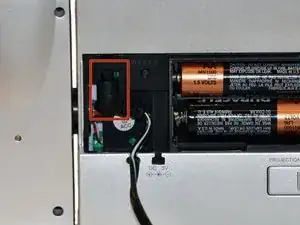

Turn the clock on its side. Slide the Focus Knob forward with your thumb.
-

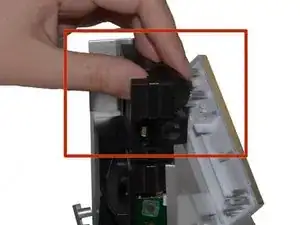

The Focus Knob Component should now be free of Projection Arm.
-

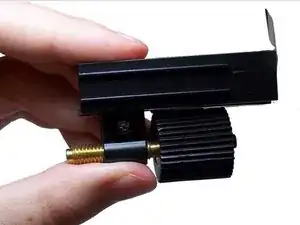

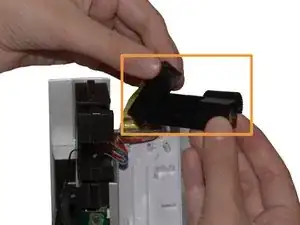

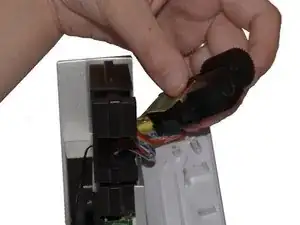

Hold the Component in one hand and lift the Projection Beam up and away from the Focus Knob.
-
-
-

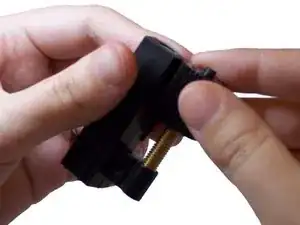

Loosen Focus Knob by turning the Focus Knob counterclockwise with your fingers.
-
If needed, add a SMALL amount of WD-40 to the base of the knob and continue turning Focus Knob.
-

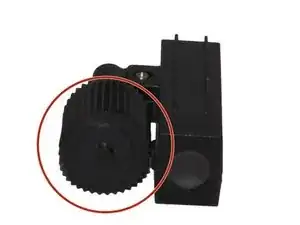

Place replacement Focus Knob in socket and turn clockwise to secure.
-
To reassemble your device, follow these instructions in reverse order.
