Ozeri Pronto ZK14-S LCD Replacement

Written By: Oneika White
  • Comments: 1
Ozeri Pronto ZK14-S LCD Replacement

Difficulty

Moderate

Steps

11

Time Required

20 minutes

Introduction

This guide explains how to expose the LCD screen of the Ozeri Pronto ZK14-S. The detachment of the LCD motherboard is necessary to reveal the actual screen.

  1. NHwGiQ6VWoQhGLPP
    NHwGiQ6VWoQhGLPP
    FbjbGiMufAjTpV1w

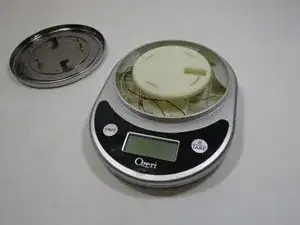

    • Twist the plastic plate slowly to the left to pull it away.

  2. NnAGNxd2duOAIhDP

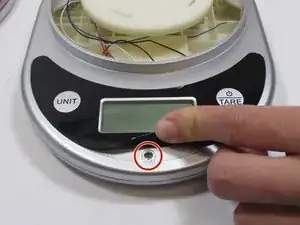

    • Pry off the sticker at the bottom where the “Ozeri” logo is to reveal a screw. The sticker does not need to be completely removed for the next step.

  3. AYWhQbKMKMuTrnWR

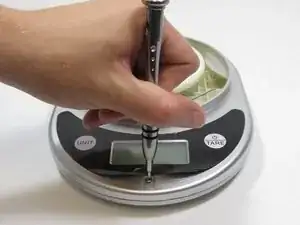

    • Using the 2.0 Flathead screwdriver, remove the 9.50 mm Phillips head screw under the sticker.

  4. jKoIIXUIQxSVDsS3
    jKoIIXUIQxSVDsS3
    QbOepq3VXPcHlQhq

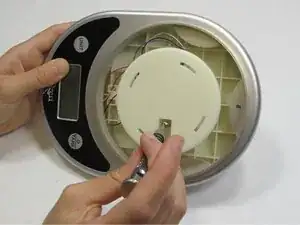

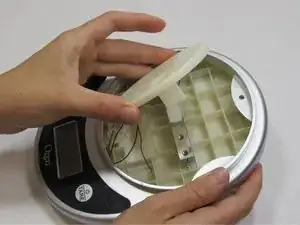

    • Using the 2.0 Flathead screwdriver, remove the two 18.76 mm Phillips head screws in the plate stand.

  5. yQSrOIodePrlZZGM
    yQSrOIodePrlZZGM
    XuftkNTGvyEqAo5V

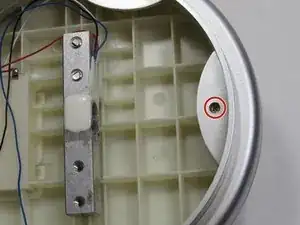

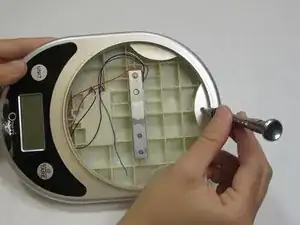

    • Using the 2.0 Flathead screwdriver, remove the 9.44 mm Phillips head screw on the end opposite of the LCD screen.

  6. BwDBPWDUhWDtEtTc

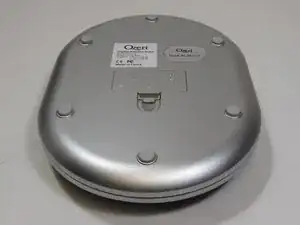

    • Turn the device over so the back panel is facing up.

  7. keeHONZ6fAXUfrRd

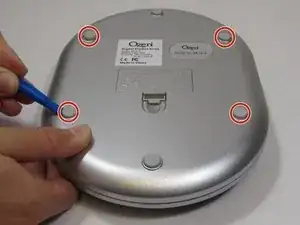

    • Using the plastic opening tool, pry off each of the two rubber stubs on the right side and the two stubs on the left side of bottom of the device.

  8. id5PMtItNucxwJbm

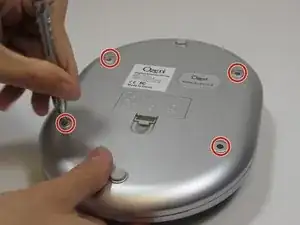

    • Using the 2.0 Flathead screwdriver, remove of the four 9.46 mm Phillips head screws under the removed stubs.

  9. g3LqiJCitnFwnMZA
    g3LqiJCitnFwnMZA
    mFRTKsimJBVO2uQX

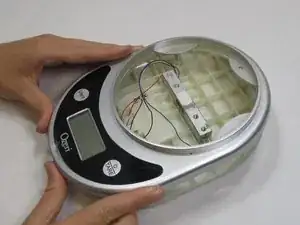

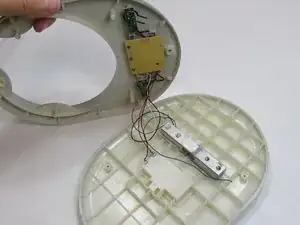

    • Pry apart the two panels to separate them from each other.

    • Flip the device over so the LCD is facing up. Flip the front panel over on its side.

    • Be careful when separating the panels to avoid damaging the wires they are connected by.

  10. WlcxKhPQSUQTK2Q5
    WlcxKhPQSUQTK2Q5
    2yysLE2NbAyp1ihs

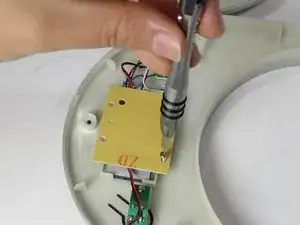

    • Using the 2.0 Flathead screwdriver, remove the three 7.20 mm screw on the back of the center LCD motherboard.

  11. WH4uPBovGJJfTmxR
    WH4uPBovGJJfTmxR
    3SIpFIXKJY5MIMgh
    sMpkGRQni2DHHDBt

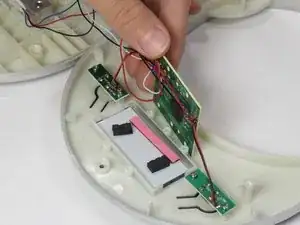

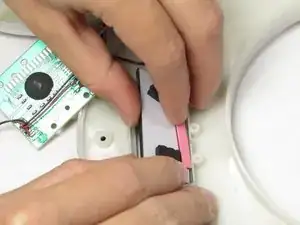

    • Stand the center motherboard up to expose the LCD screen

    • Be careful when standing up the LCD motherboard to avoid damaging the wires it is connected to.

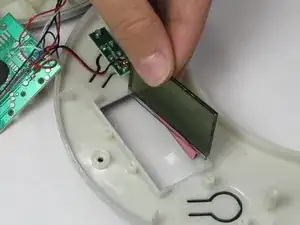

    • Remove the LCD screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
