PDP Afterglow Wired Xbox 360 Controller Case Replacement

Written By: Aaron
  • Comments: 0
PDP Afterglow Wired Xbox 360 Controller Case Replacement

Difficulty

Easy

Steps

3

Time Required

5 - 10 minutes

Introduction

  1. Rn6ElGaMftUQaAoH
    Rn6ElGaMftUQaAoH
    KBpOxfCT5TOSlkSC

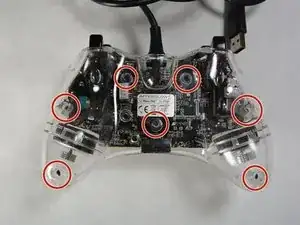

    • Loosen the seven 11 mm Phillips #0 screws located on the back of the controller.

  2. ukAwrn5NE2qni53J

    • Using a plastic opening tool, pry the back cover from the front.

    • The covers should separate without needing a plastic opening tool, but in some cases you may need to use it.

  3. e4vNBLNJZvOEtxtK

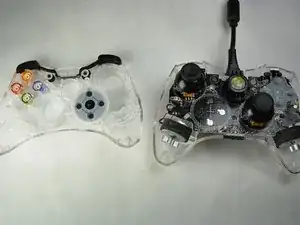

    • Remove the top cover from the bottom and place next to each other.

Conclusion

To reassemble your device, follow these instructions in reverse order.
