Palm v Outer Case Replacement

Written By: Anthony Platt
  • Comments: 1
Palm v Outer Case Replacement

Difficulty

Difficult

Steps

5

Time Required

10 - 15 minutes

Introduction

How remove the outer casing

  1. ndMLaaHKJFnPULeL

    • Lay device face down on surface.

  2. SDPXtJCWtroGN4BY
    SDPXtJCWtroGN4BY
    UauUf3OqXEAa4VxB

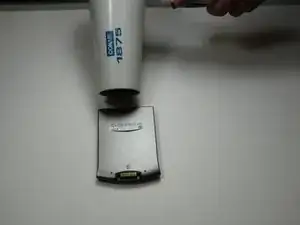

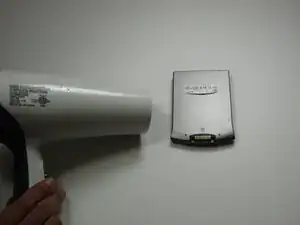

    • Heat the left and top edges with hairdryer for one minute.

    • Move hairdryer back and forth to evenly heat up surface.

    • Caution: directly heating the screen can melt or distort the screen.

  3. 4kriJZYCYuXlG3IC

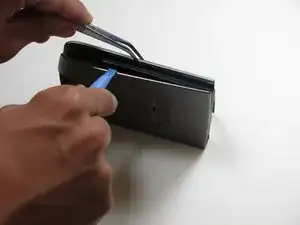

    • Use tweezers to hold Palm right side down on it's side.

    • Use a plastic opening tool to pry open front and back casing.

    • If you are unable to open you may need to heat with hairdryer for longer.

    • Be sure not to touch case directly with fingers, it will be hot!

  4. LHhWlE5x3hJRLoIR

    • Leave plastic opening tools in between front and back casing.

    • Rotate Palm and repeat steps 2 and 3 for right and back edges.

  5. dDAbHIxBprCxd3Ca
    dDAbHIxBprCxd3Ca
    v5ENlVPjTANDk1S3
    qMrwVW6nTxaywIIn

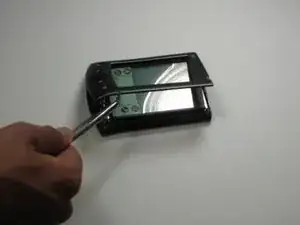

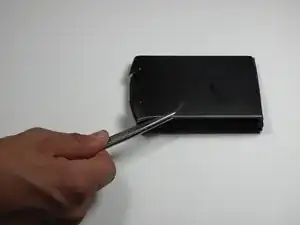

    • Now pry open front and back casing with plastic opening tools.

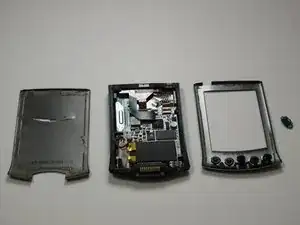

    • Separate front and back casing completely.

    • Power button will fall off once front and back casing have been removed. Be sure not to lose it.
