Philips Sonicare DiamondClean Metal Brush Connector Replacement

Written By: Zachary Bertrand
  • Comments: 9
Philips Sonicare DiamondClean Metal Brush Connector Replacement

Difficulty

Moderate

Steps

7

Time Required

1 hour

Introduction

  1. hSBPtw2P3aHxQayB
    hSBPtw2P3aHxQayB
    SpqOqJrXJkZ2TQVq

    • Pull the head from toothbrush.

  2. GJTDIFxNiXi6hJ4w
    GJTDIFxNiXi6hJ4w
    ccOgVvsUKikQLmWD

    • Use a nylon spudger to pry the chrome cap at the bottom off.

    Cover the toothbrush with a thin towel or some cardboard, then take a pair of pliers or channel locks and squeeze the corners to slightly deform the case. That will give you some room to get under the cap.

    Maybe Dave -

  3. cCIXojvXuUG5oMYW

    • Use a nylon spudger to release the black tabs on either side of internals.

  4. unIaqLkqKHkYYuNK
    unIaqLkqKHkYYuNK
    6scg6VwPWZayljSP

    • Put the metal head on a solid surface with handle perpendicular to the surface. Firmly, yet gently, push down until the internals start to slide out.

  5. AESHw53TPQVcGSDm

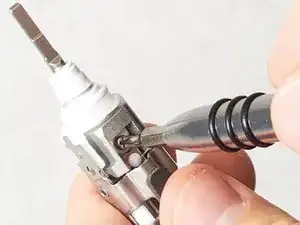

    • Use a Phillips screwdriver to remove the screw at the base of the metal head.

  6. Nq3aNodlGGpQVOSX

    • Use fine tip tweezers to push the white plastic tabs in to release the head from the innards.

  7. nXYvHistBNgWq1km

    • Gently pull the metal head from the innards.

    Wie benennt man " den Rest des Gerätes" gemäß obiger Beschreibung? Das Gussteil ist bei mir gebrochen. Ich würde dieses gern nachbestellen. FG Reinhold

    Reinhold -

    Google liefert für "hx93 Antrieb" Einiges, kommt oft aus China. Bei eBay heißt es "Vibrationsteil":

    https://www.ebay.de/itm/174961352222

    VauWeh -

Conclusion

To reassemble your device, follow these instructions in reverse order.
