PlayStation Controller Ports Replacement

Written By: Craig Lloyd
  • Comments: 6
PlayStation Controller Ports Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 20 minutes

Introduction

If your PlayStation is no longer registering controller input or recognizing memory cards, it may be time to replace the controller ports on the console. This guide will take you through the process of replacing this component, which includes the controller ports and the memory card slots in one assembly.

Note: This repair is demonstrated on a SCPH-1001 model. The process may differ slightly if you have a later model.

  1. IqaSJZ4KVmvNouFi

    • Before you begin, make sure the console is turned off and unplugged.

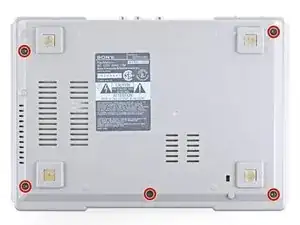

    • Turn the console upside down and remove the five 15.8 mm-long Phillips #1 screws.

    The SCPH-9001 model does not have the Parallel Port panel to remove.

    Aislinn -

  2. Ai23JydcmDHAJSKG
    Ai23JydcmDHAJSKG
    RKxO2hpTXxr4G2sp

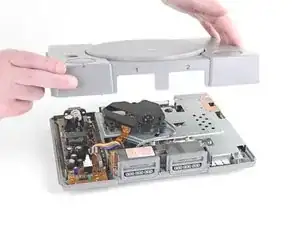

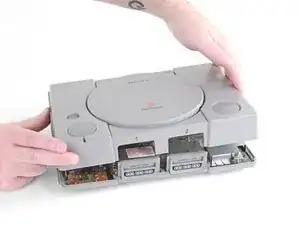

    • While holding the top and bottom halves of the console together, flip the console back over. Lift the top cover straight up to remove it.

  3. aSEFLMD5sYlEJhDJ

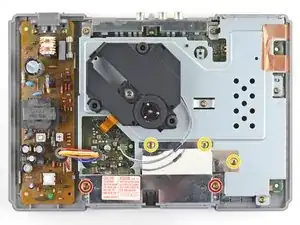

    • Remove five Phillips #1 screws securing the metal shield to the controller ports:

    • Two 14 mm screws

    • Three 8 mm screws

  4. ScldZAXnOwW2YLKZ
    ScldZAXnOwW2YLKZ
    mFXxo6saGuvLjO2w

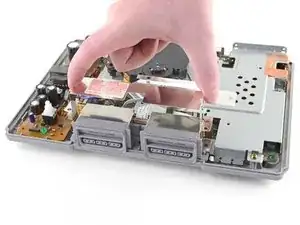

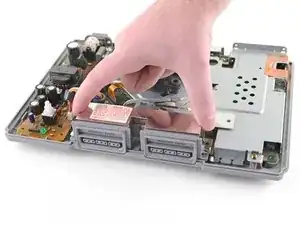

    • Lift the metal shield straight up to remove it.

  5. NNaOTODD1MjZgXIB
    NNaOTODD1MjZgXIB
    CVBMlvl3KGZS5Egn

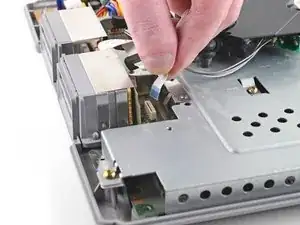

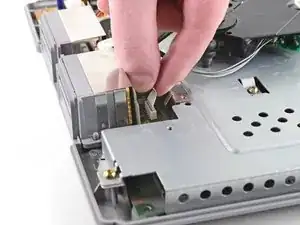

    • Pull the controller port's ribbon cable straight up and out of its socket on the motherboard to disconnect it.

  6. LBgi6hwKLa4JORYD
    LBgi6hwKLa4JORYD
    PXDxUgsUpjsFo1es

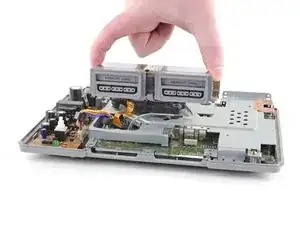

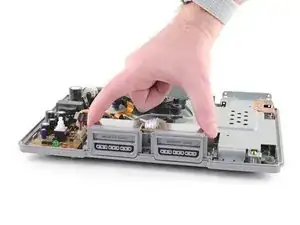

    • Lift the controller ports straight up and out of the bottom case.

Conclusion

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
