Polaroid a520 Casing Replacement

Written By: Dani
  • Comments: 0
Polaroid a520 Casing Replacement

Difficulty

Moderate

Steps

4

Time Required

2 minutes

Introduction

Removing the casing is necessary to replace the LCD screen or the buttons.

  1. WYfIkmwZig5FRnNc
    WYfIkmwZig5FRnNc
    JNeEJKUcZRYypPgh

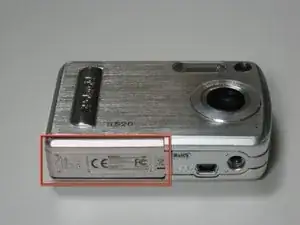

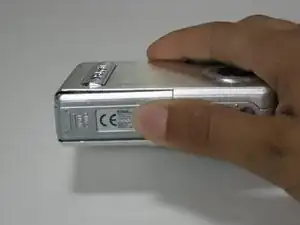

    • Place your thumb on the battery cover and push left towards the arrow.

    • The cover will release and pop open.

  2. DTcqwMe3NS6vRyS6

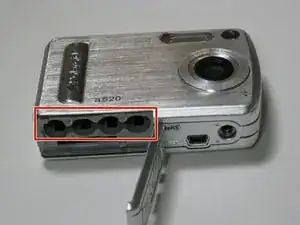

    • Remove the batteries from the camera.

  3. dyooU243Ipgvg1tY

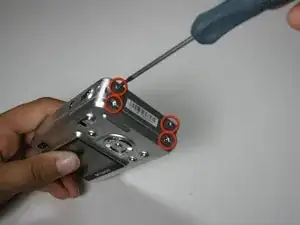

    • Remove four 3 mm screws on the right side of the camera using a Phillips #1 screwdriver.

    • This will release the front and back casings.

  4. ulLGwnwPLXLgAGLR

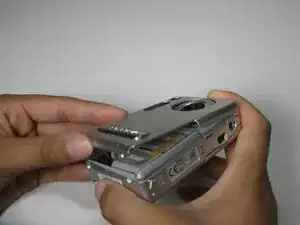

    • Use your nail or a flat object to pry up the edge of the front casing. Push the casing up and back.

    • Repeat this step for the back casing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
