Introduction

In order to reach the rear speaker, the back of the tablet must be removed. This guide requires basic knowledge of soldering.

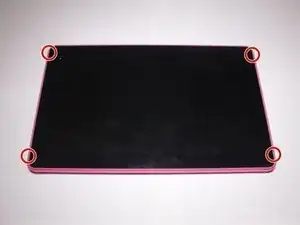

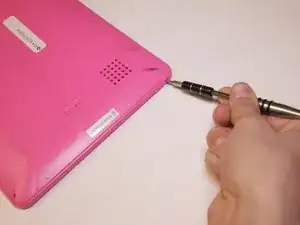

  1. EgUYLNJnEGLWDQ3g
    EgUYLNJnEGLWDQ3g
    jIwoRPs2XlbLgWSH
    • Remove these four 4 mm Phillips #00 screws.

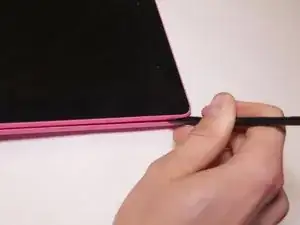

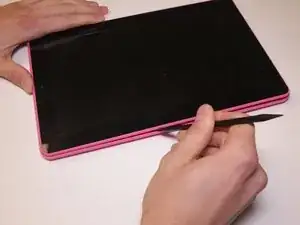

  2. GwwCGZrtFmOcMf2l
    GwwCGZrtFmOcMf2l
    bbmuQpaDhyugYmjP
    • Run a spudger tool around the edge of the screen to loosen it and begin to pry upward.

    • The screen will be able to be removed once you see it pop up like it has in the photo.

    • There are wires attached to the back cover and screen so be careful not to pull them apart.

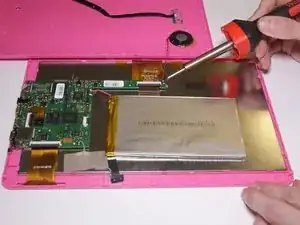

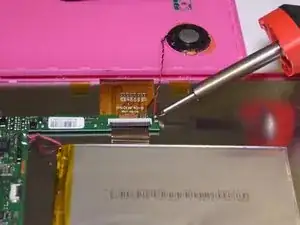

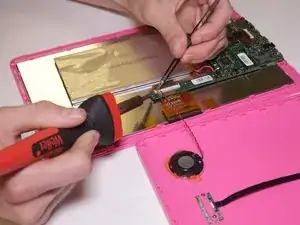

  3. wWeeqqHmDYWFVHmx
    wWeeqqHmDYWFVHmx
    XsqCkGDaJxHQPOSs
    2DHIA61snPR1E3OE
    • With a soldering iron, remove the wires from the circuit board.

    • Due to the size of the wires, tweezers may be necessary.

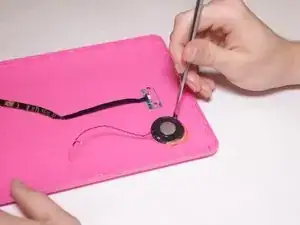

  4. 3D1H6EapFsnTUGly
    • Use a metal spudger to pry out the speakers from its housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
