RCA RCT6303W87 Speaker Replacement

Written By: Akitaka Hashimoto
  • Comments: 2
RCA RCT6303W87 Speaker Replacement

Difficulty

Easy

Steps

10

Time Required

25 - 35 minutes

Introduction

This guide may be of use if the sound no longer works properly. For speaker accessibility, the battery will have to be removed.

  1. SEXoGBAQU1FQgBiB
    SEXoGBAQU1FQgBiB
    d6Tkp3Cxy6lC2T2W
    awSbZEybrME3yh1n

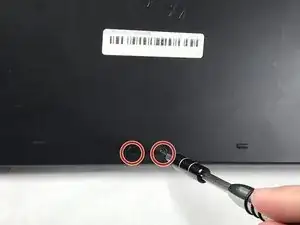

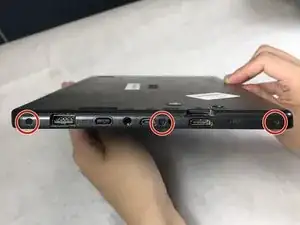

    • Remove nine 4.8mm screws around the case with a JIS #00 screwdriver.

  2. BCEEbpXMQgAaKXk2

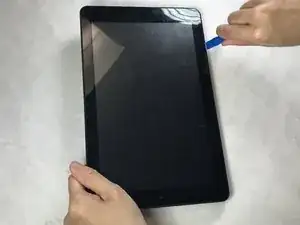

    • Insert plastic opening tool and slide it around the edges until the cover starts to pop off. It may be necessary to go over each side multiple times in order to pop the cover off.

    I bought a set of tools for opening the cover of the tablet but as much as I have tried going around each side, I have been unable to make any progress. I can’t get a tool to even begin to fit in between the cover and the tablet. Any suggestions?

    Thomas Kiker -

    I was getting very frustrated as I tried to separate it. I thought maybe there was glue around it's because my son had just replaced the screen. I have the RCA 11 and 1/2 Galileo Pro it has snaps all the way around it. Once I realized that it started to snap apart. I became a little bit more confident. You have to get the snaps to start unsnapping.

    Rebecca Pavelka -

  3. YEYNc1wToEMTuHVb
    YEYNc1wToEMTuHVb
    copBfesCOLyKvjXX
    bc1SwIDS3TksSNkU

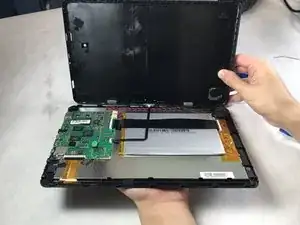

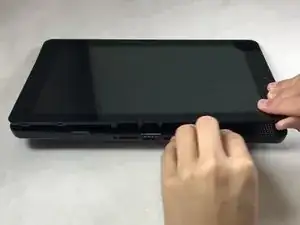

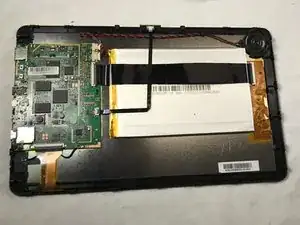

    • Remove cover completely.

  4. sVcNuOYCbfbJcuGp
    sVcNuOYCbfbJcuGp
    RDL6vBCfBmUB2Gmr
    dFARBGbsF5DEODUf

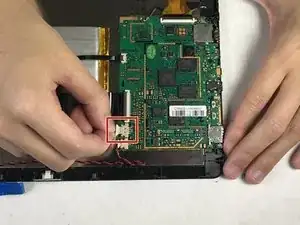

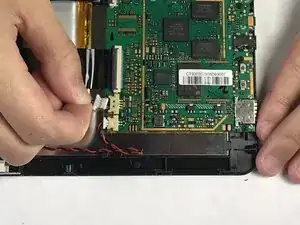

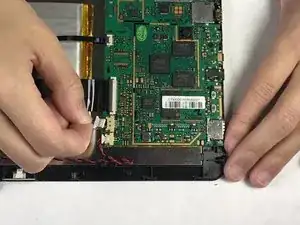

    • Disconnect battery cable from the motherboard.

  5. xOMZZETxxbho1bZr
    xOMZZETxxbho1bZr
    ibE5JAuVPPFMMhOj
    ouq2LADWRGtLGI2w

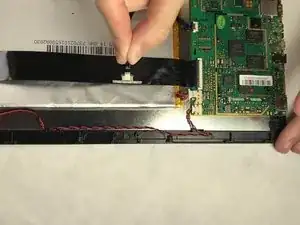

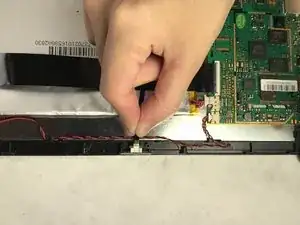

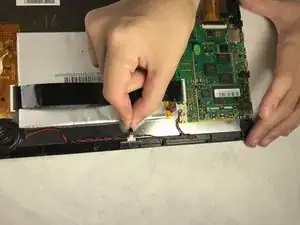

    • Pull the thin black keyboard connector off and set it aside.

  6. lCD1Y1t6nZSvAYmG
    lCD1Y1t6nZSvAYmG
    QhOawWMGi3IUoKZt
    B1YjwqDZQmdUlgRj

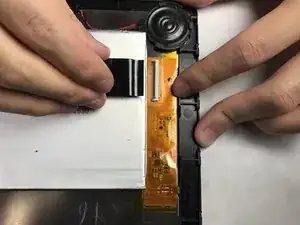

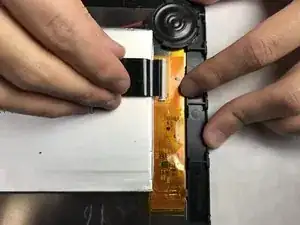

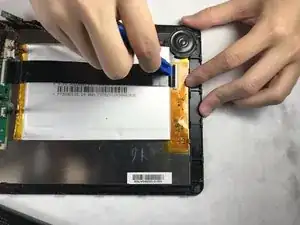

    • Disconnect the thick black band (bus) using a plastic opening tool or fingernail.

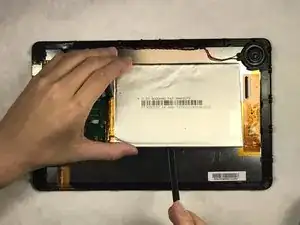

  7. sb6EeUwK1tgFZHCX

    • Use nylon spudger tool or plastic card to separate battery from the case.

  8. lJHpsraAtbFN43jG
    lJHpsraAtbFN43jG
    Zesl1rwtkEVbI5HY
    BD6qpIee5JGoYoYr

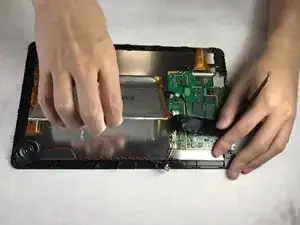

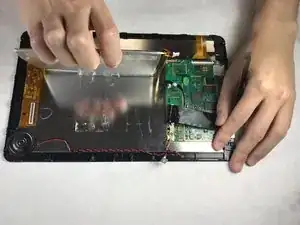

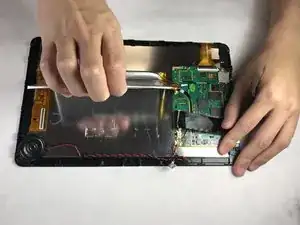

    • Carefully peel off the battery.

  9. Q3Tryyce2GNZwoMu
    Q3Tryyce2GNZwoMu
    R6cn6YylAGEaDySi
    kYkGoqfTrRJgm5RB

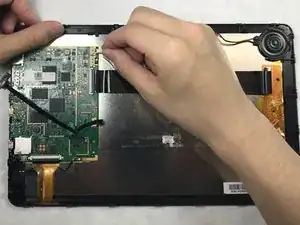

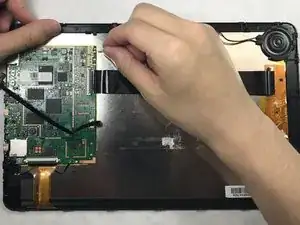

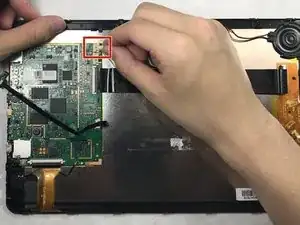

    • Disconnect the speaker cord from the motherboard.

  10. sGnd44NLXLxIZ2eU
    sGnd44NLXLxIZ2eU
    AXTXSgG6lTdKZDOi
    ADXoYxxXCDboatDO

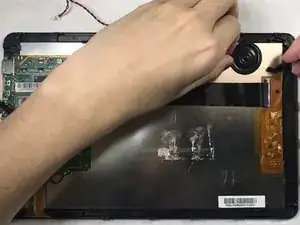

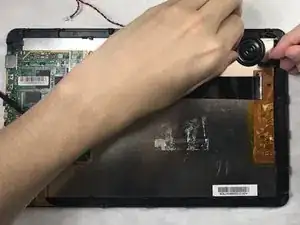

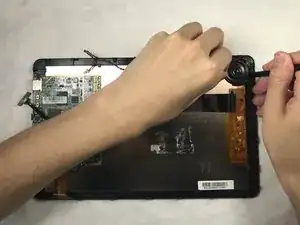

    • Use the plastic spudger to slide the speaker out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
