Introduction

We are going to identify dead cells in battery packs and replace them.

Beware - This tuto is higly experimental, Li-Ion cell present fire / explosion / burn hazards this guide is for educationnal purpose only and should not be reproduced without safety measures. Remember to always wear apropriate PPE and work in appropiate environment.

  1. wKe6YNaB4wysLMLL
    wKe6YNaB4wysLMLL
    GEaJUTFpRm4MUNya
    kXEUgNcgSMROWVfJ
    • Caution: Lithium-ion batteries can catch fire or explode if they are damaged or short-circuited—especially when they are charged. Be extremely careful not to bend them or short-circuit them with your probes.

    • Battery pack works by putting individual cells in parallel / series. Each cell has a nominal voltage / capacity and they are put together to give the whole battery pack it's global voltage / capacity.

    • Here we have a 3s2p battery pack. This means that you have 3 serial attached blocks of 2 parallel cells.

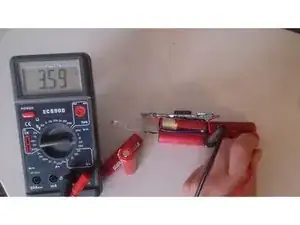

    • The lefmost block seems dead, the cells reads a steady 0 volts on my multimeter.

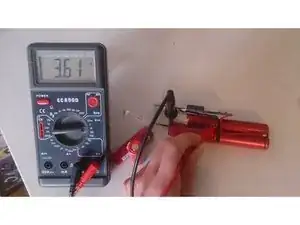

    • The 2 other block show ~3.6 V which means they are still alive, great !

    • I haven't tested individual cells from the 2 working blocks for a good reason. This battery pack has been stored for several monthes, if only one cell in the block was dead, the other (good) one would have discharged in it until it also dies ( which is what must have happen in dead block )

    How to know if what 18650 mah will you use? Like for my scenario, my laptop is 2,800 mah and I have 4 18650 inside, so each battery is 700mah. Can I use higher mah?

    jhun -

  2. nCA3ORyAu4OQloWK
    nCA3ORyAu4OQloWK
    OJBIFisiHFHs5JJ1

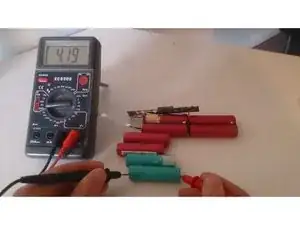

    • Here I have 2 scrap 18650 cells form another dead battery pack. They are still charged but I have no fear has the battery electronics will balance the charge levels later.

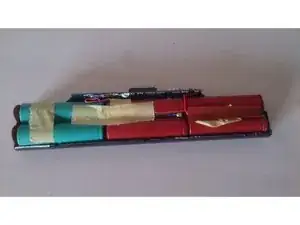

    • After this step, reassemble the pack and everything should be fine.

    • Remember that this a dirty fix and you should consider the repaired battery pack as NOT SAFE

    As you say, putting loose batteries together is potentially dangerous.

    When testing 18650 lithium (3.7v) batteries, it is best to set your multimeter to 9v battery test mode (they may appear to be charged during a normal DC voltage test, but still worthless).

    Charge your batteries and let them rest for a day or two. If the batteries have lost none of their charge, only then should they be considered healthy.

    Before mounting them, place them parallel for at least a day, to equalize the Electromotive Force (EMF)).

    Exception: Modern battery packs and their chargers charge each cell individually.
