Replacing Crosley CR42 Needle

Written By: Roberto Rosila
  • Comments: 1
Replacing Crosley CR42 Needle

Difficulty

Very easy

Steps

3

Time Required

30 seconds - 2 minutes

Introduction

Replacing the needle is one of the quick and easy. This does not requires opening the device and can be done in a matter of minutes.

  1. XCNbGPBDCjJyLdWq
    XCNbGPBDCjJyLdWq
    BIvRnslkHVTmeuTc

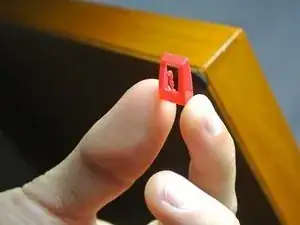

    • The needle is the red plastic piece on the end of the arm. The needle snugly fits over the lower portion of the head, or front end, of the arm.

  2. P1XIpDhPEFUDItBZ
    P1XIpDhPEFUDItBZ
    hoHKCrZ4ScWJcBNh

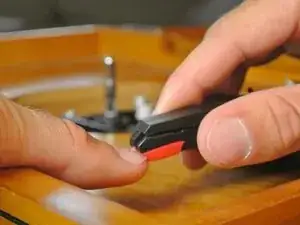

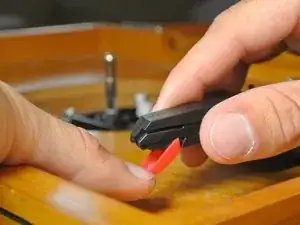

    • While securing the end of the arm by holding the head in place, use your fingernail to push down on the front edge of the needle.

    • The needle should hang, as shown.

  3. thSEi3ufwQgdCGGG
    thSEi3ufwQgdCGGG
    52FdYAELZ2ZGYNj3

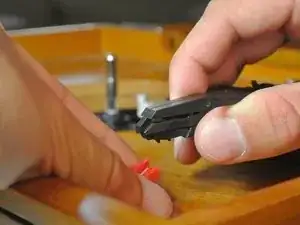

    • Once the needle snaps free of the head of the arm, remove the needle by pulling down. Take care to only pull on the red portion.

    • WHEN ATTACHING NEW NEEDLE: Slide the back (open U shaped side) of the needle on first, then press to snap the front into place. You should hear a click.

Conclusion

To reassemble your device, follow these instructions in reverse order.
