Introduction
The foldable handle is part of what made the Super 8 camera iconic. The intuitive and easily stored design allowed for steady on-the-go filming.
-
-

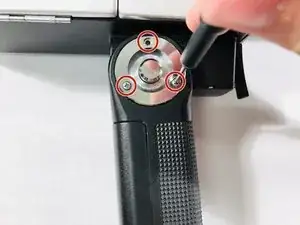

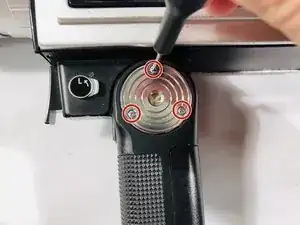

Using the Phillips #000 screwdriver, remove the three screws on the round plate on the right side of the camera handle. This is the side with the handle lock release button.
-
-
-

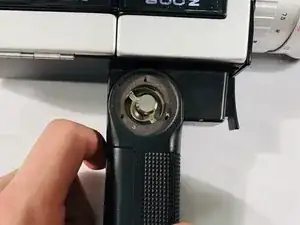

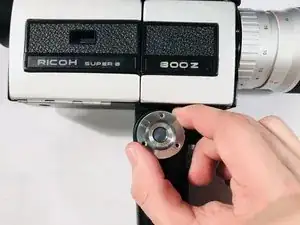

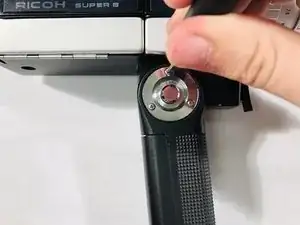

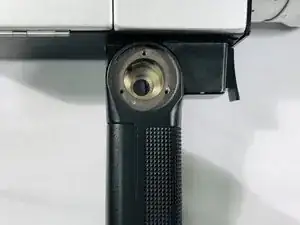

Remove the round metal plate.
-

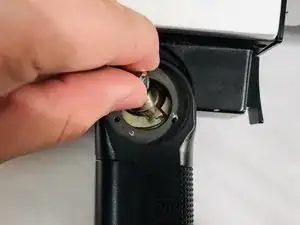

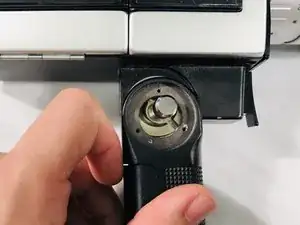

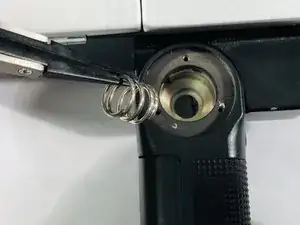

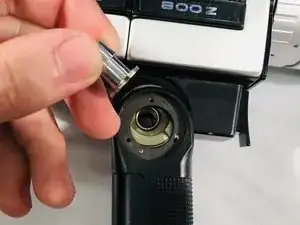

Then, shift the handle so you have clearance to pass one of the legs of the button through the opening.
-
-
-

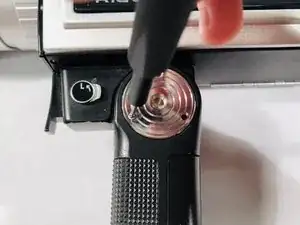

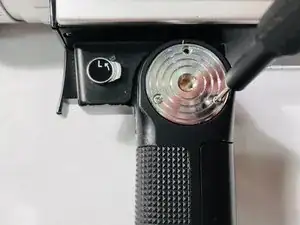

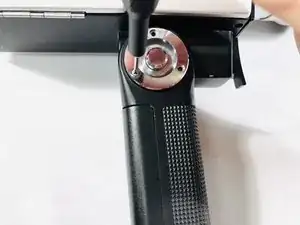

Flip the camera to the other side and remove the screws from the other round metal plate with a Phillips #000 screwdriver.
-
-
-

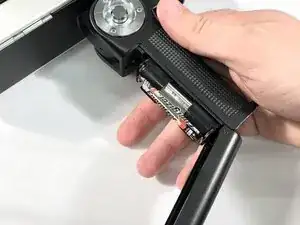

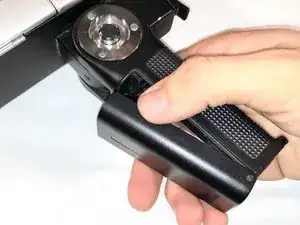

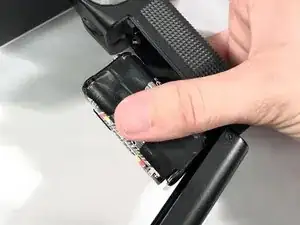

Pull the handle slowly away from the camera and shift the handle to allow access to the wire connections.
-

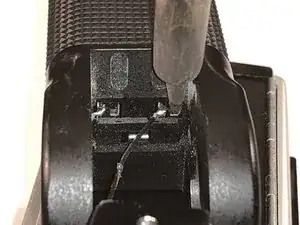

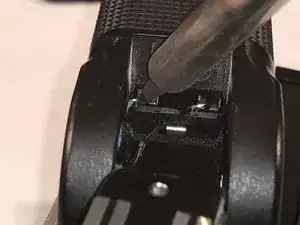

Desolder these wires carefully and you can now remove the handle.
-
To reassemble your device, follow these instructions in reverse order.
