Ridgid Brushless Drill Driver R860054 Reverse and Forward Switch Replacement

Written By: gage.anastasio

Comments: 0

Ridgid Brushless Drill Driver R860054 Reverse and Forward Switch Replacement

Difficulty

Moderate

Steps

Time Required

20 - 30 minutes

Introduction

Use this guide to replace the forward/reverse switch in your Ridgid 860054 Drill.

The forward/reverse switch is also known as the rocker switch.

The forward/reverse switch allows you to change the direction in which your drill rotates. If it is damaged or otherwise unusable, you will be unable to change the direction of rotation of the drill.

Though unlikely, there may be other issues interfering with the function of the forward/reverse switch. Make sure to visit the troubleshooting guide before proceeding with the repair.

Tools

TR10 Torx Security Screwdriver

Parts

Ridgid Forward/Reverse Selector 531715001

Step 1

Using a T10 Torx security bit, remove the ten screws from the housing assembly.
All of the casing screws are the same length and require the same bit.

Step 2

Separate one half of the drill casing from the other by gently pulling both halves apart.
Once one half of the casing is removed, be careful! If the components are directed towards the ground, they could fall out.

Step 3

Remove the plastic speed switch and forward/reverse switch by softly lifting them from the casing.

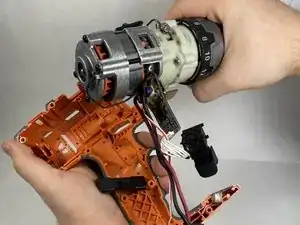

Remove the internal components of the drill by lightly pulling on the drill chuck.
All of the other electronic components are attached to the chuck, and will come out with it.

Step 4

The main section of the drill should have the trigger, light indicator, and battery prongs all connected via wire. There should be two plastic switches separated from the rest of the body.
