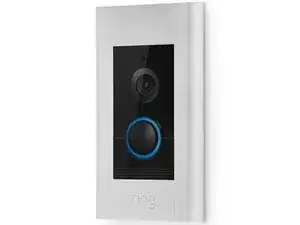

Ring Elite Doorbell Button Replacement

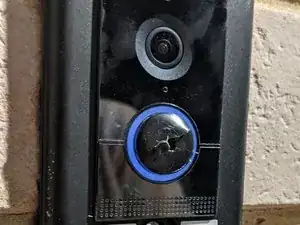

Button on doorbell is broken. Replacement from Etsy Store - Doorbell Accessories

https://www.etsy.com/au/listing/87604191...

The button is very difficult to replace by disassembly. The seller recommends to pull out the button slightly with your fingers and slide a screwdriver around the seam. I found this didnt work for me

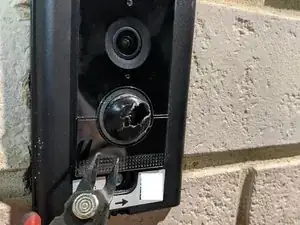

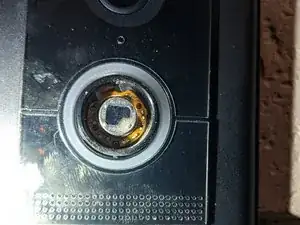

The old button is clipped around the housing with three clips. Cutting the centre of the button out allows easier access to the clips from the inside

Be careful with the cutters to not go too deep and damage the inner circuitry of the button, try to cut parallel to the front of the button

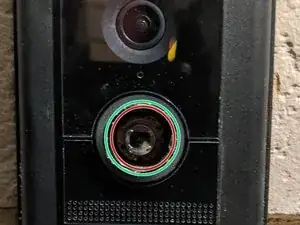

The green ring represents the remains of the old button and the red ring represents the button housing which the button is clipped to

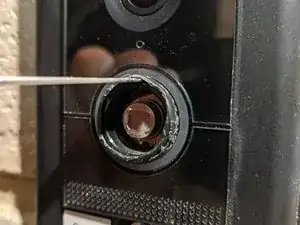

Carefully insert the pointed end of a metal spudger into the gap between the button and the button housing and rotate to seperate the clips from the housing

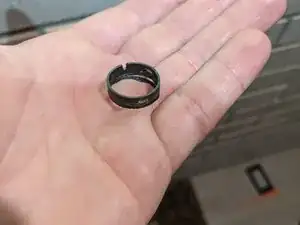

Then pull back on the button remains as you unclip the clips

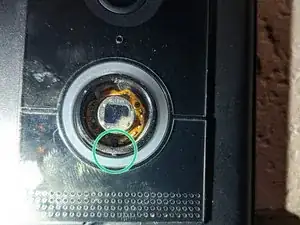

The clips are located at 12 oclock , 4 oclock and 8 oclock

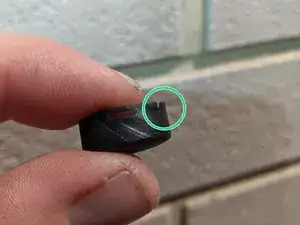

Insert the new button with the notch at 6 oclock. It should line up with a tab inside the button ring

Push the button in firmly once lined up. It should not take too much force.

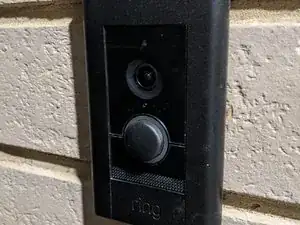

Done!
